Injection Mold design for Single cavity (Support Cross)

6 Oct, 2025 09:24 AM

Here is the link for 3D Model

SUPPPROT CROSS | 3D CAD Model Library | GrabCAD

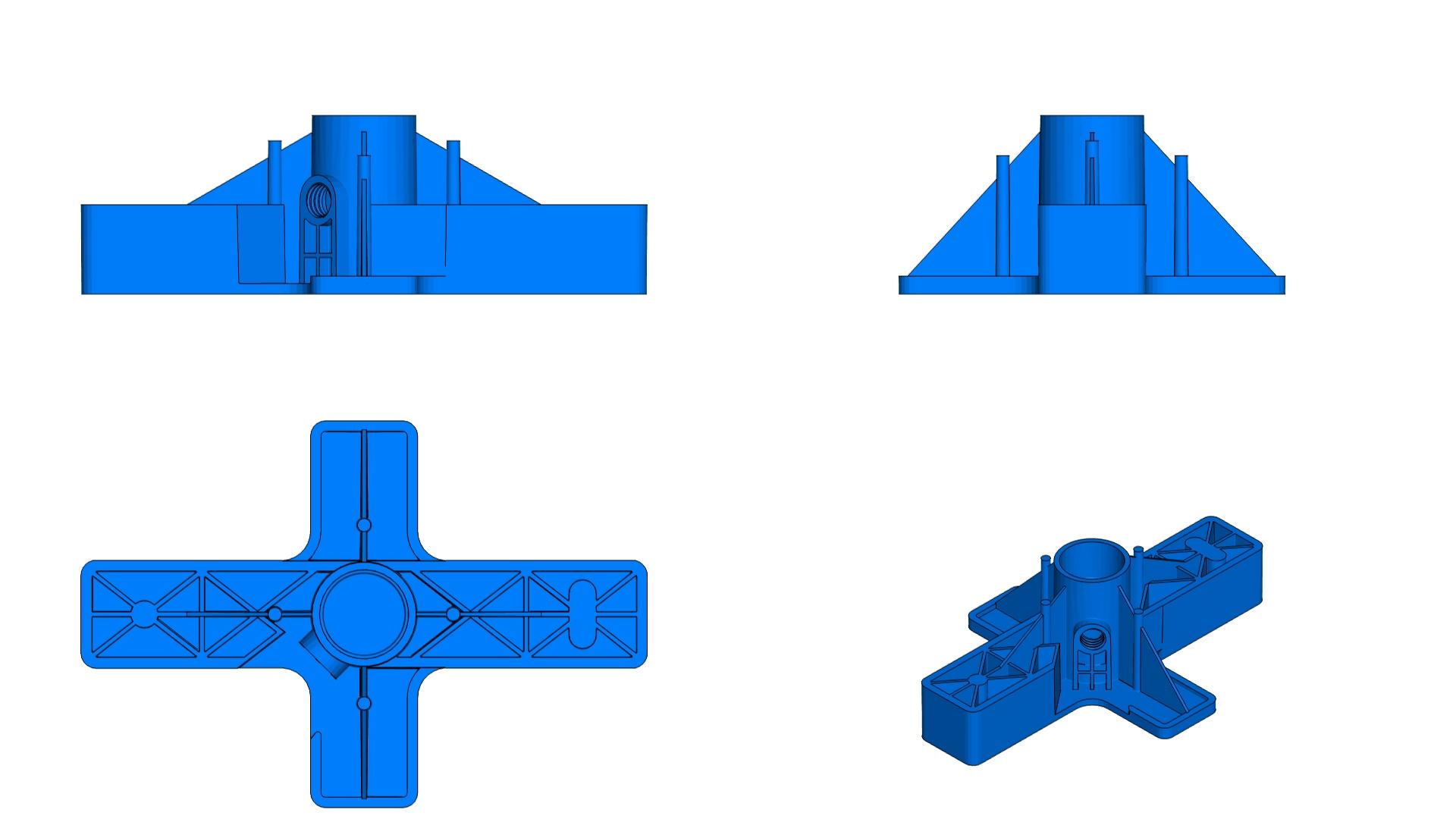

I am currently engaged in a mold design project for a component referred to as the "Support Cross", which serves as a structural element in a motor mount assembly. As part of this project, I am seeking guidance and technical support in the areas of:

Design for Manufacturing (DFM): To ensure the part is optimized for injection molding, with considerations for manufacturability, cost-efficiency, and defect prevention.
Mold Flow Analysis (MFA): To simulate and evaluate the flow behavior of the molten material within the mold, identify potential issues such as weld lines, air traps, and warpage, and refine the mold design accordingly.

Assistance from experienced professionals would be highly valuable to ensure the success and robustness of the mold design.

Engineer A

Oct 7

Hi Dinesh Kumar! What help you need?

1) For a good DFM - need original 3d model and drawings.

2) This project for your company?

3) You want a payment free help?

DINESH KUMAR M

Oct 7

Engineer A Hi Dinesh Kumar! What help you need?1) For a good DFM - need original 3d model and drawings.2) This project for your company?3) You want ...

1) I'm currently unable to upload the model through this platform. If you could kindly provide an email address, I would be happy to share the file with you directly.

2) Please note that this request is not related to my organization; it is intended solely for educational purposes. I'm pursuing PD-PMD.

3) I am seeking assistance that is free of charge.

Engineer A

Oct 10

Hi! I didn't receive your model.

Jeeva Kalidas

Oct 10

DINESH KUMAR M 1) I'm currently unable to upload the model through this platform. If you could kindly provide an email address, I would be happy to shar...

Are you Tamil nadu

DINESH KUMAR M

Oct 11

Engineer A Hi! I didn't receive your model.

Can you provide me your mail id (or) Download the model through this link https://drive.google.com/file/d/12gqZOBNRWE9gc6IqwnUlOOPGcQubZcwi/view?usp=sharing

DINESH KUMAR M

Oct 11

Jeeva Kalidas Are you Tamil nadu

Yes

Engineer A

Oct 16

Hi! Dfm report https://cloud.mail.ru/public/qRjR/tw9rT9dv6
