Hi Yogesh,

Could you please let me know the following attributes, so I can make one for you as soon as possible:

Material Selection:

• What material should the timing screw be made of? (If you want me to do FEA analysis too)

Thread Details:

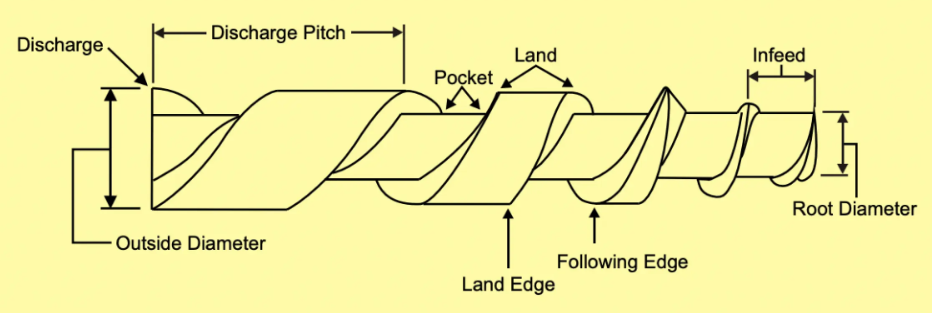

• What is the infeed and discharge pitch of the thread?
• What thread profile is required? (e.g., square, trapezoidal, or custom.)

Diameter:

• Confirm 54mm is the outer diameter is 54mm or root diameter?

Profile Design:

• Do you have a specific profile or contour for the timing screw? (e.g., for spacing or guiding products.)
• Should the profile repeat along the screw, and if so, at what intervals?

Mounting Details:

• Are there any specific end features (e.g., keyways, threads, or holes) for mounting?

Clearance:

• What are the clearance requirements between the screw and adjacent components?

Driving Mechanism:

• How will the screw be driven? (e.g., motor coupling, direct drive.)
• Should a spline, key, or other features be included for connection?

Load Conditions:

• Are there any specific loads or forces to simulate in SolidWorks Simulation?

Assembly Context:

• Will the timing screw be part of a larger assembly in? If yes, can you provide the surrounding components for reference?

Tolerances:

• Are there any tolerance requirements for the dimensions?

Draft or Drawing:

• Do you have a sketch or reference drawing to base the design on?
