Quien puede ayudar a desarrollar esta figura? es para una presentación, gracias.

23 Oct, 2018 01:08 AM

Oct 23, 2018

It is a very simple object. Based on other models in your profile, there should be no trouble building it in SOLIDWORKS.

Given this is the Tutorial group, what portion of the model are you having trouble with? I'm sure we can tutor you right through it.

----

Es un objeto muy simple. Basado en otros modelos en su perfil, no debería haber problemas para construirlo en SOLIDWORKS.

Dado que este es el grupo de tutoriales, ¿con qué parte del modelo tiene problemas? Estoy seguro de que podemos enseñarte a través de esto.

Daniel Cabrera Prz

Oct 23, 2018

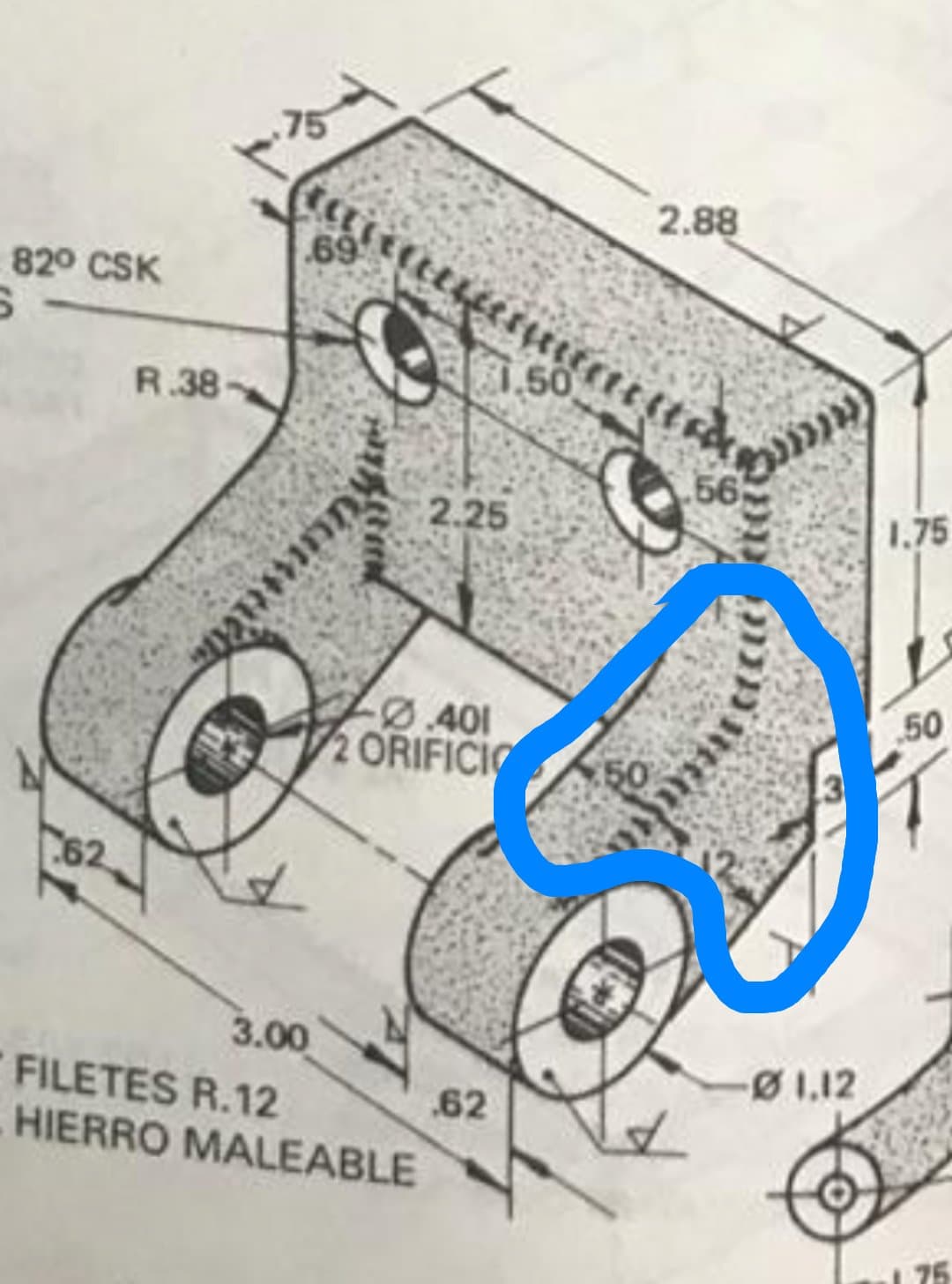

El problema que tengo es que aun no se como se hace ese tipo de curvado.

Te agradeciera mucho si me lo explicas o aun mas fácil, compartiendome un tutorial de como hacerlo.

FredSWUG

Oct 23, 2018

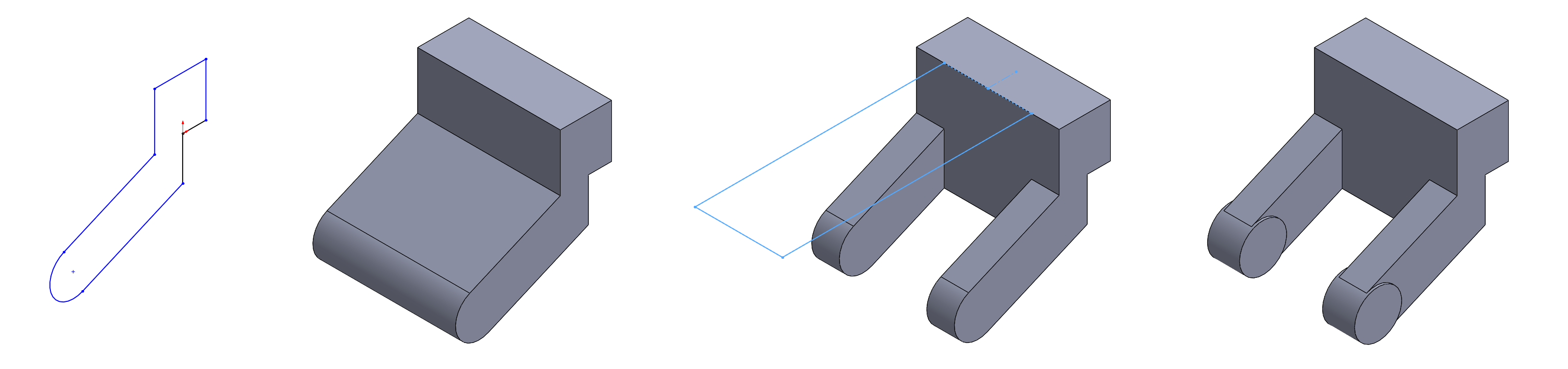

There is no need to bend anything. The smaller, side view of the model is what you sketch. The larger, isometric view is giving all the dimensions.

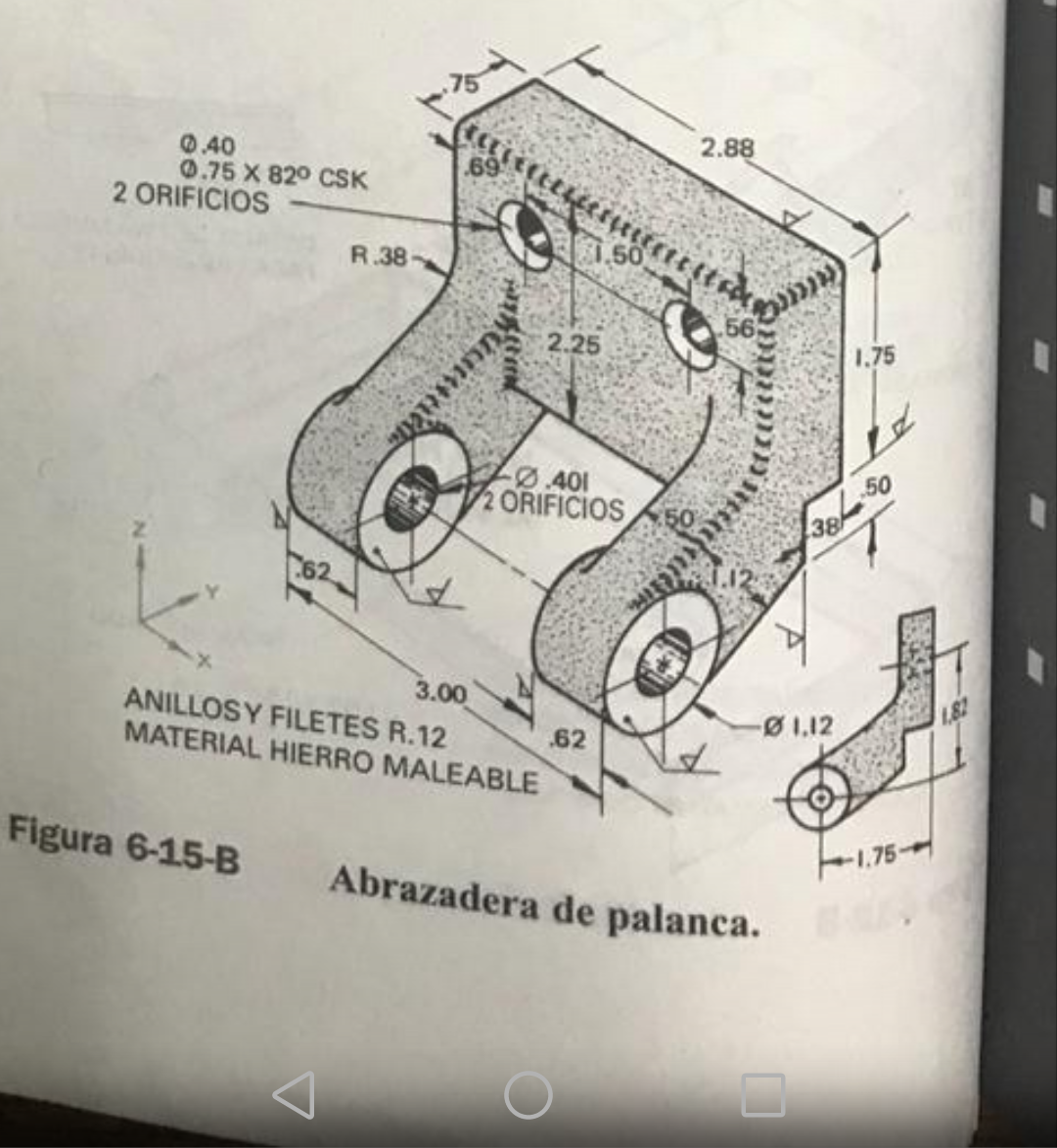

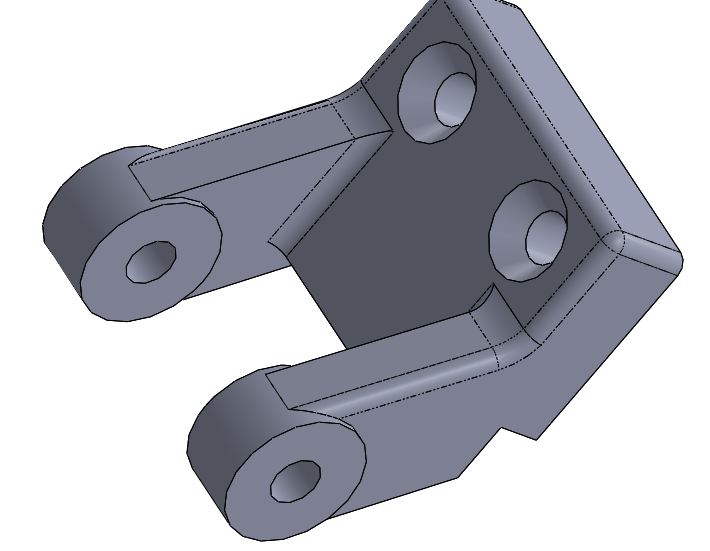

A basic outline is shown in the attached image. My model is very rough with no dimensions, relations, or detail features like the holes and fillets, you'll want to make use of those.

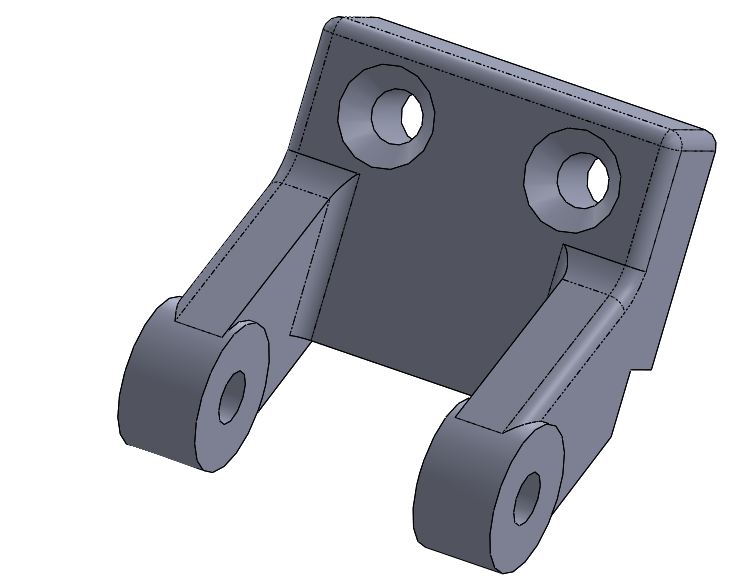

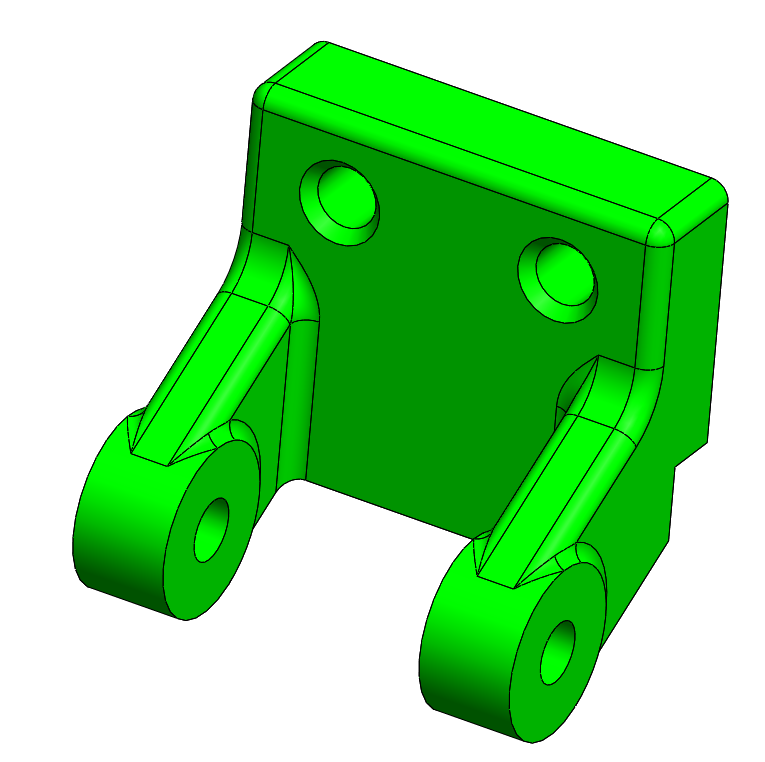

I had a few minutes this morning and made a model with actual dimensions. The countersink comes out way oversized if left at .75", so I reduced mine to .55" to make it look a little more like the image.
