I need help with this drawing

abdellah missoumi
abdellah missoumi
23 Mar, 2024 04:47 PM

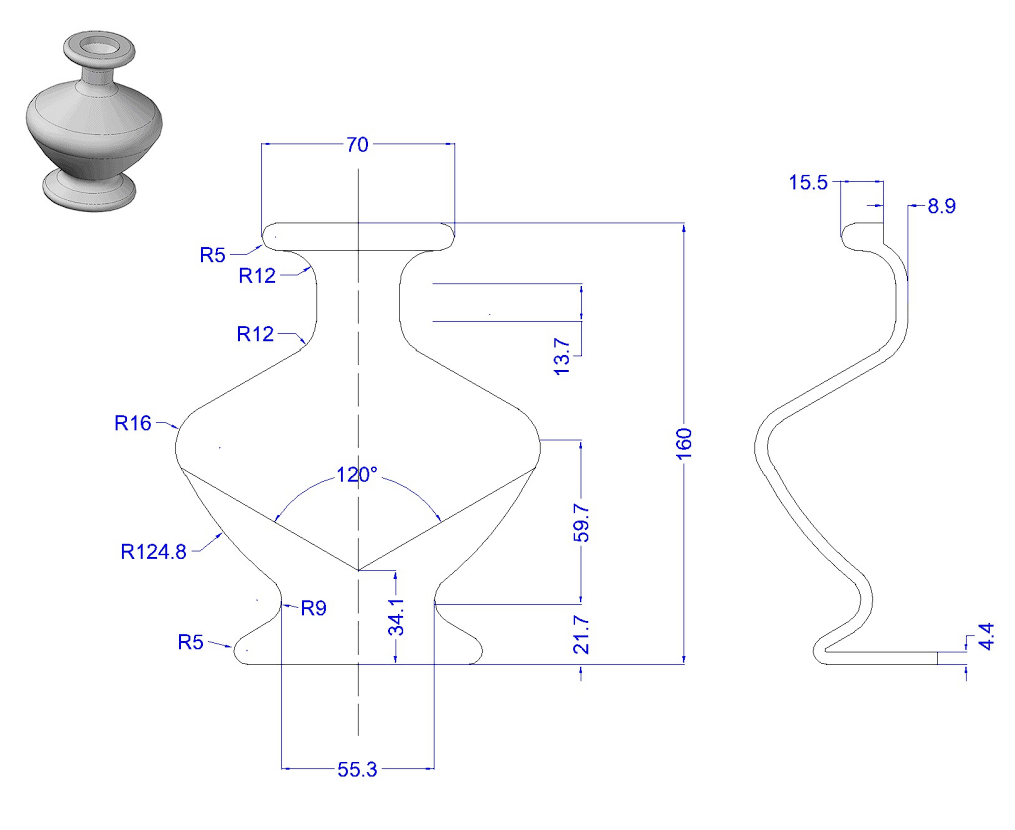

I didn't know how to connect all the different arcs in this drawing in AutoCAD, and also i don't know the point of the two 120° lines, if some can help me, please.

Capture d’écran 2024-03-23 173726.png Capture d’écran 2024-03-23 173726.png

2 Answers

Steven Kiley
Steven Kiley
Answered on 15 Apr, 2024 03:26 PM

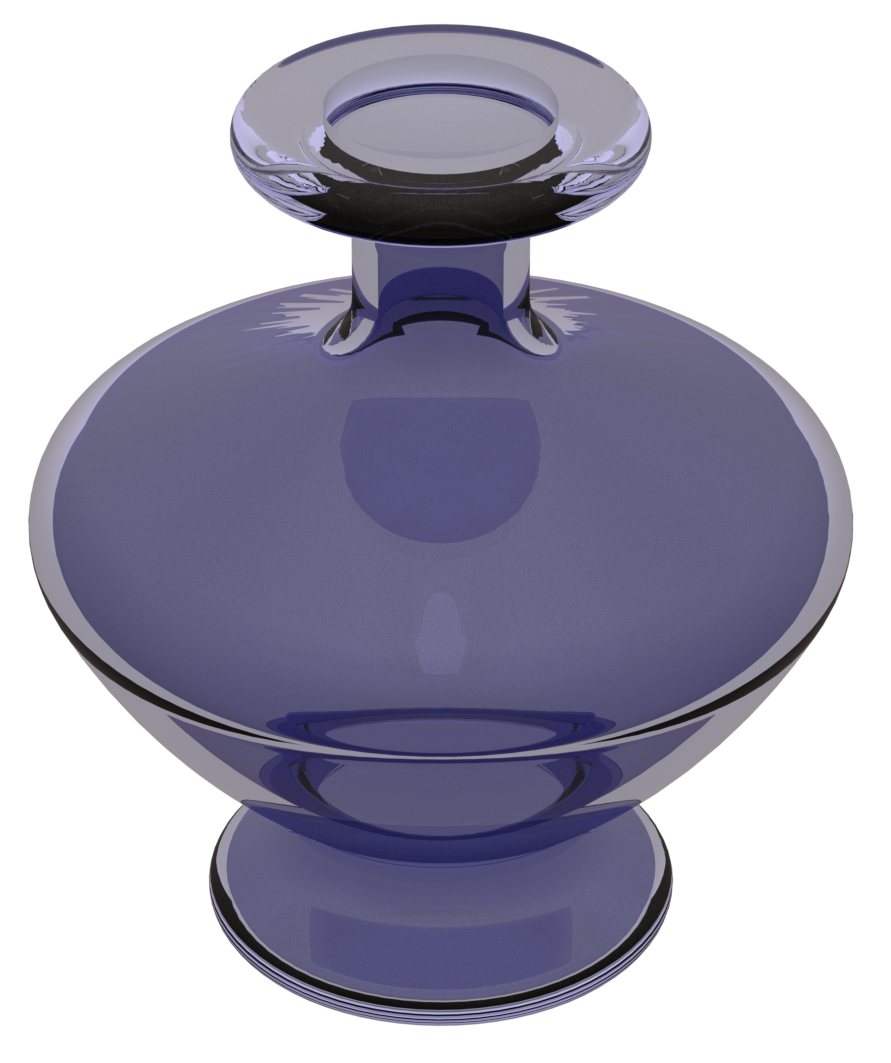

This seems to be the appropriate interpretation of this sketch, given that there are no other diameters provided to determine the base. I highlighted the construction line of interest to show that it is colinear with the bottom slope, which fully defines the sketch with all of the given dimensions.

Capture 03.png Capture 03.png Capture 02.png Capture 02.png Capture 01.PNG Capture 01.PNG
Albert Karlen
Albert Karlen
Answered on 29 Apr, 2024 04:55 PM

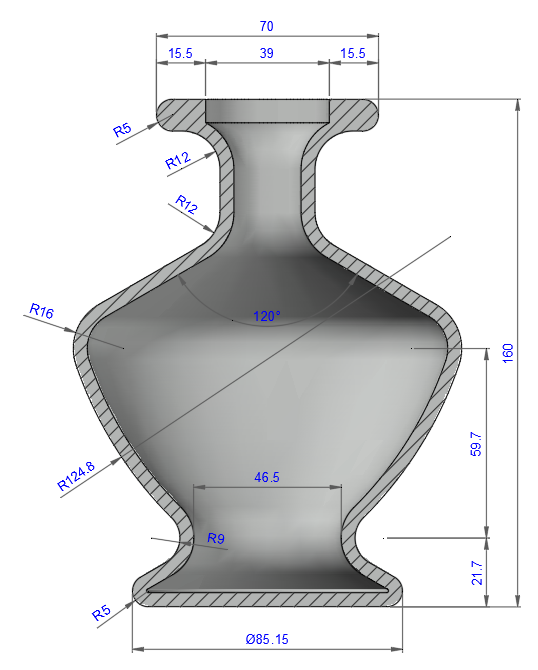

Voici un croquis qui illustre ma réponse

Capture1.PNG Capture1.PNG
