Can anyone pls Analyze this model in Ansys CFD ?

Kamlesh Pawar
Kamlesh Pawar
7 Mar, 2018 12:18 PM

Working fluid water
Inlet velocity 2m/s
Pls contact me on 8421123985
Send me file and video

spiral 3 blade1.txt

5 Answers

Ananth Narayan
Ananth Narayan
Answered on 7 Mar, 2018 02:56 PM

where is the model. upload that...

Shubham sharma
Shubham sharma
Answered on 8 Mar, 2018 06:17 AM

there is no Model To Solve Problem

Ananth Narayan
Ananth Narayan
Answered on 8 Mar, 2018 04:03 PM

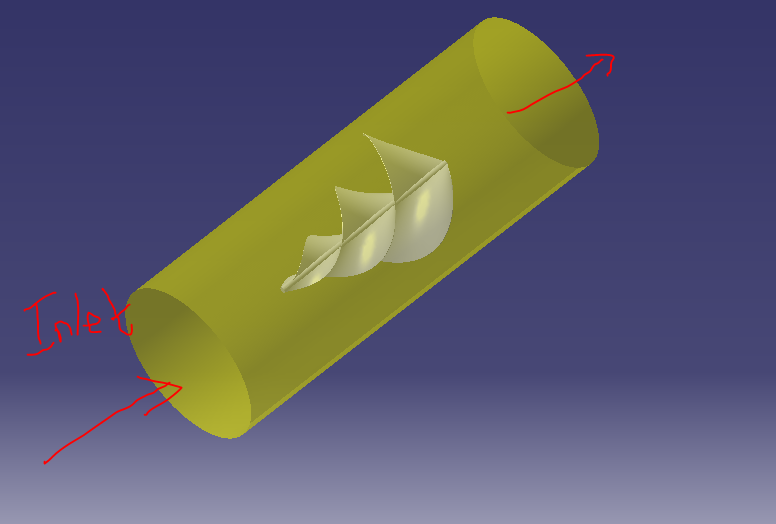

Is my picture is correct...

Capture.PNG Capture.PNG
Ananth Narayan
Ananth Narayan
Answered on 11 Mar, 2018 04:02 PM

For more information visit CFD Analysis of Typical Valve

Ananth Narayan
Ananth Narayan
Answered on 11 Mar, 2018 03:28 PM

Here is the solution:

Reply for the whole ansys workbench setup's.

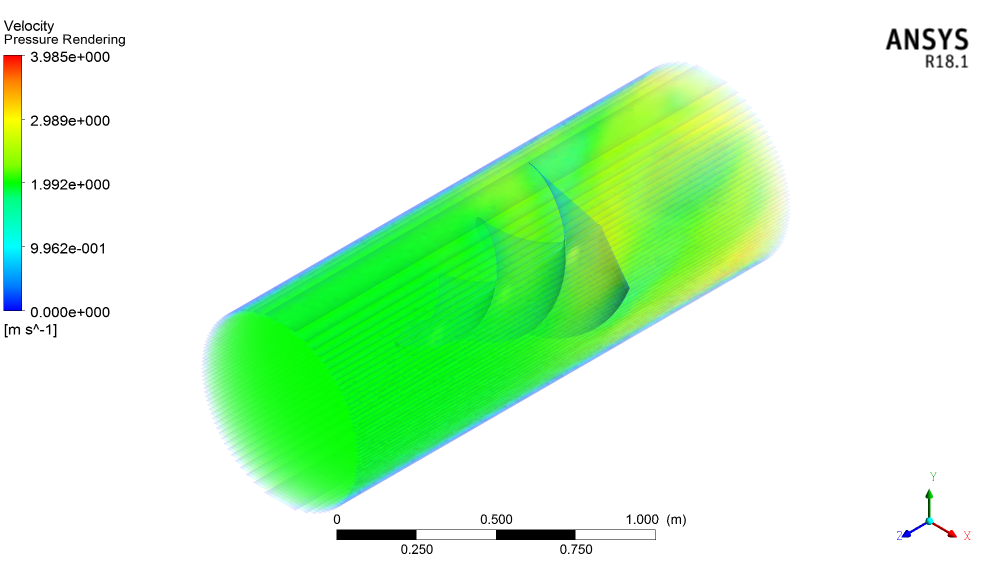

Velocity Rendering.png Velocity Rendering.png Pressure Rendering.png Pressure Rendering.png Velocity Streamline.png Velocity Streamline.png Pressure Streamline.png Pressure Streamline.png Velocity Streamline.mp4 Data Points.csv
