Diameter Dimension

hasibul shovon
hasibul shovon
27 Mar, 2019 06:04 AM

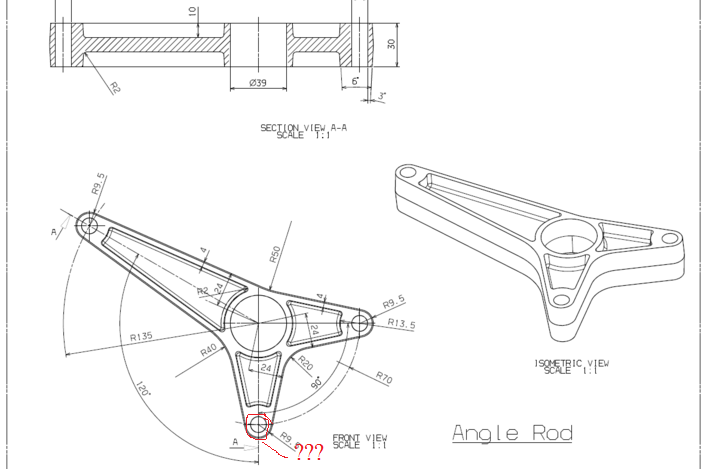

Can't find the circular dimension in the pic. Help me please.

dia.png dia.png

4 Answers

hasibul shovon
hasibul shovon
Answered on 27 Mar, 2019 02:22 PM

I just have drawn it and then measured that its dia is 13. CadCloud

medium.SLDPRT
Adam Snow
Adam Snow
Answered on 27 Mar, 2019 10:56 AM

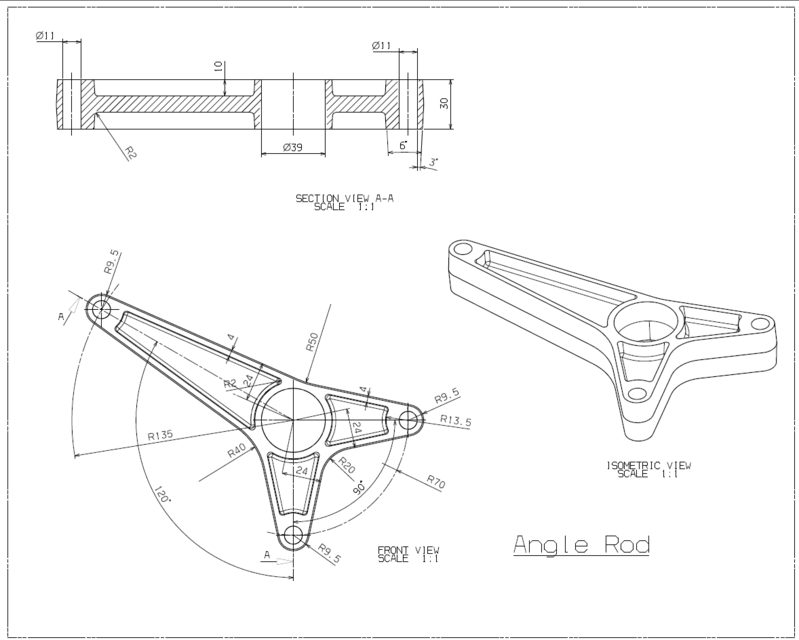

11

large.png large.png
CadCloud
CadCloud
Answered on 27 Mar, 2019 07:09 AM

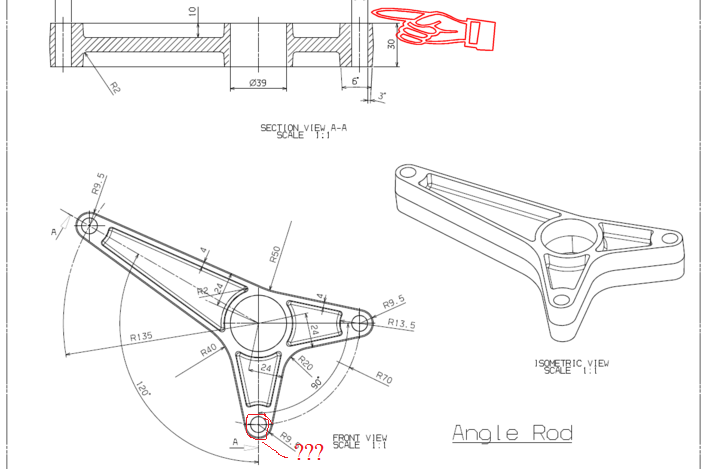

Have you got the complete drawing ? Because the Diameters are on the Cut view at the top

original1.png original1.png
hasibul shovon
hasibul shovon
Answered on 27 Mar, 2019 01:13 PM

Thank u very much everyone. I got the dimension. its 13
