Draw a box hasp

Ravindu Dickwella
Ravindu Dickwella
27 May, 2020 07:10 AM

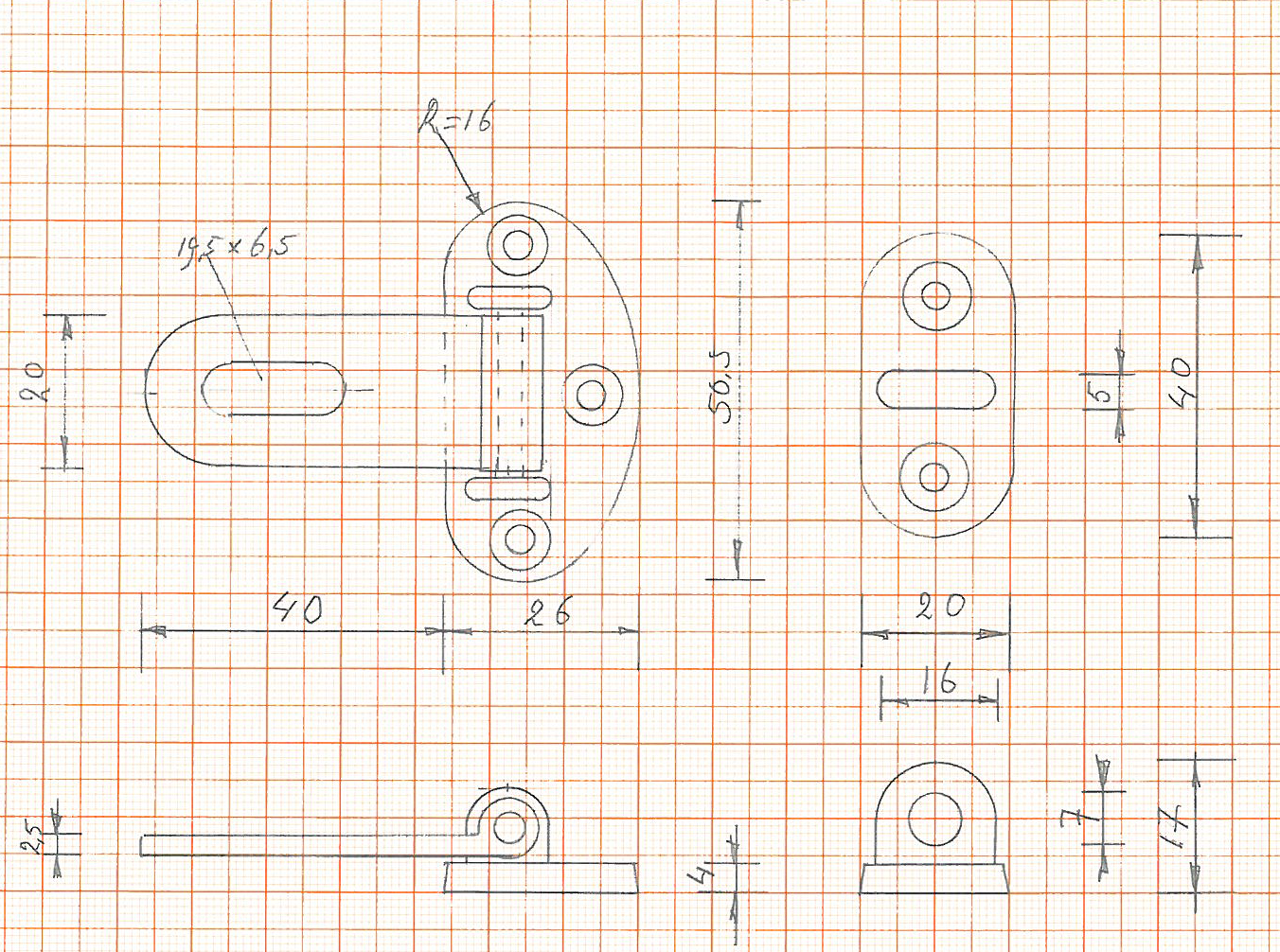

Can anyone help me to draw the following box hasp?

2233.png 2233.png

Accepted answer

SolidTweaks
SolidTweaks
Answered on 27 May, 2020 10:20 AM

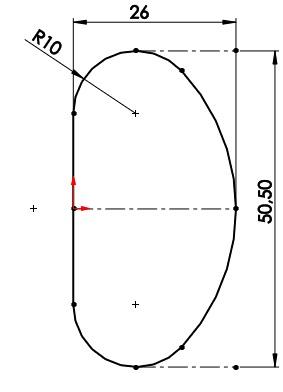

To me it appears to be a mistake. R10 makes more sense here.

R16 will make the fillet larger than the width(26mm)

123-16.jpg 123-16.jpg 123.jpg 123.jpg
