hi, can anyone show me a way to design this? with these texture ?

Tharindu Prabashwara
Tharindu Prabashwara
8 Oct, 2018 09:31 PM

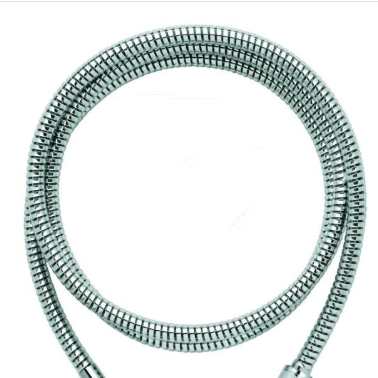

I want to redesign this with SolidWorks as it is, I tried it from many ways, but couldn't reach this! if anyone can show me a path it will be grateful.

j2.png j2.png

2 Answers

FredSWUG
FredSWUG
Answered on 8 Oct, 2018 11:22 PM

Maybe someone has a faster/better way?

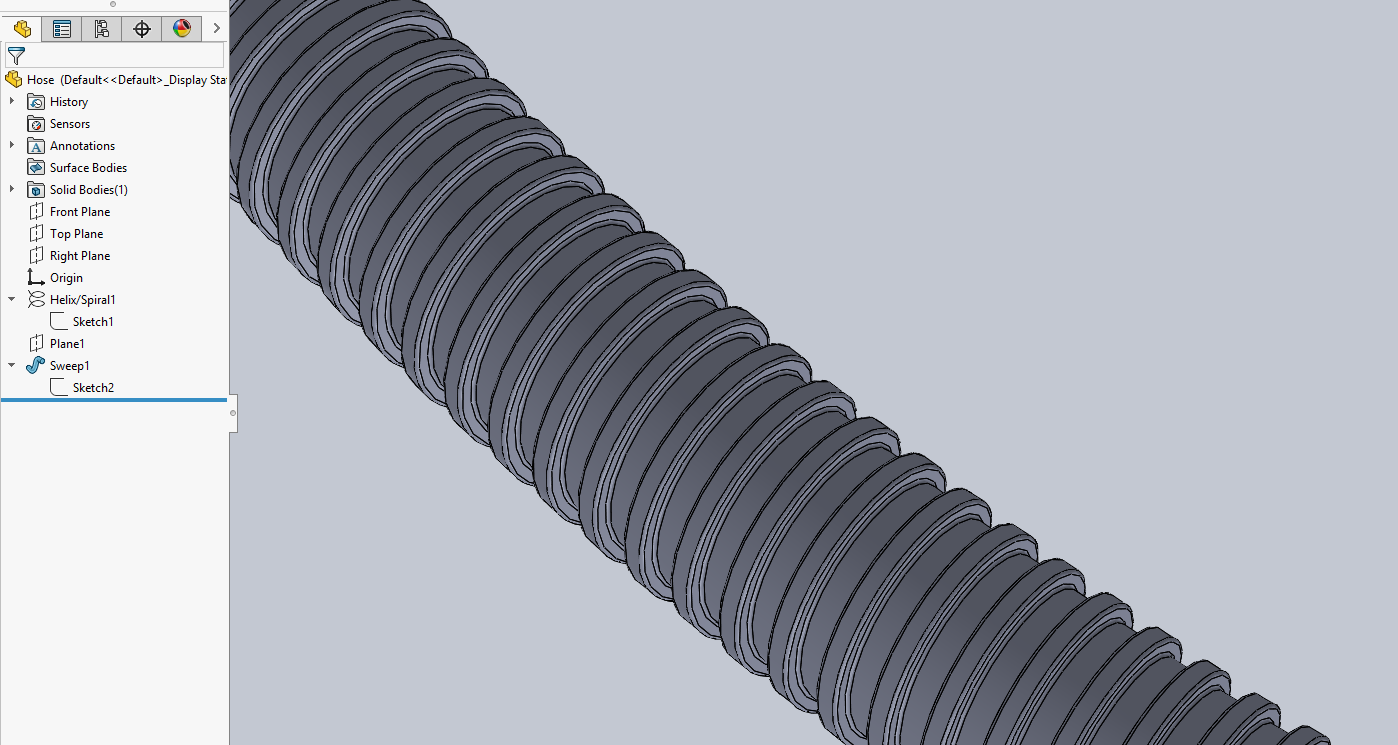

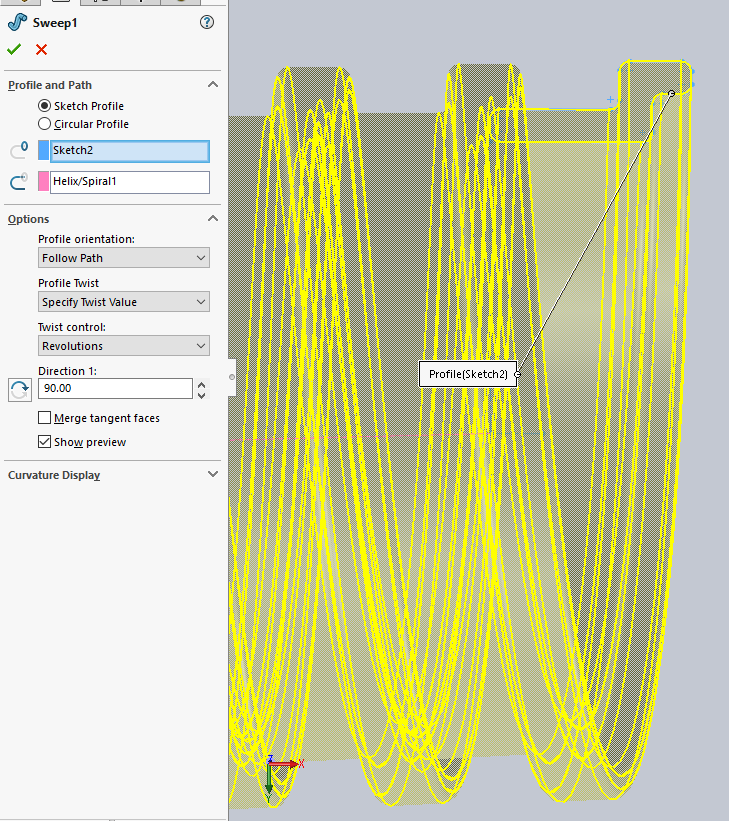

This method works, but it is a very slow feature to edit and rebuild. This is a Sweep following a Helix, with Twist added.
SW model is 2018

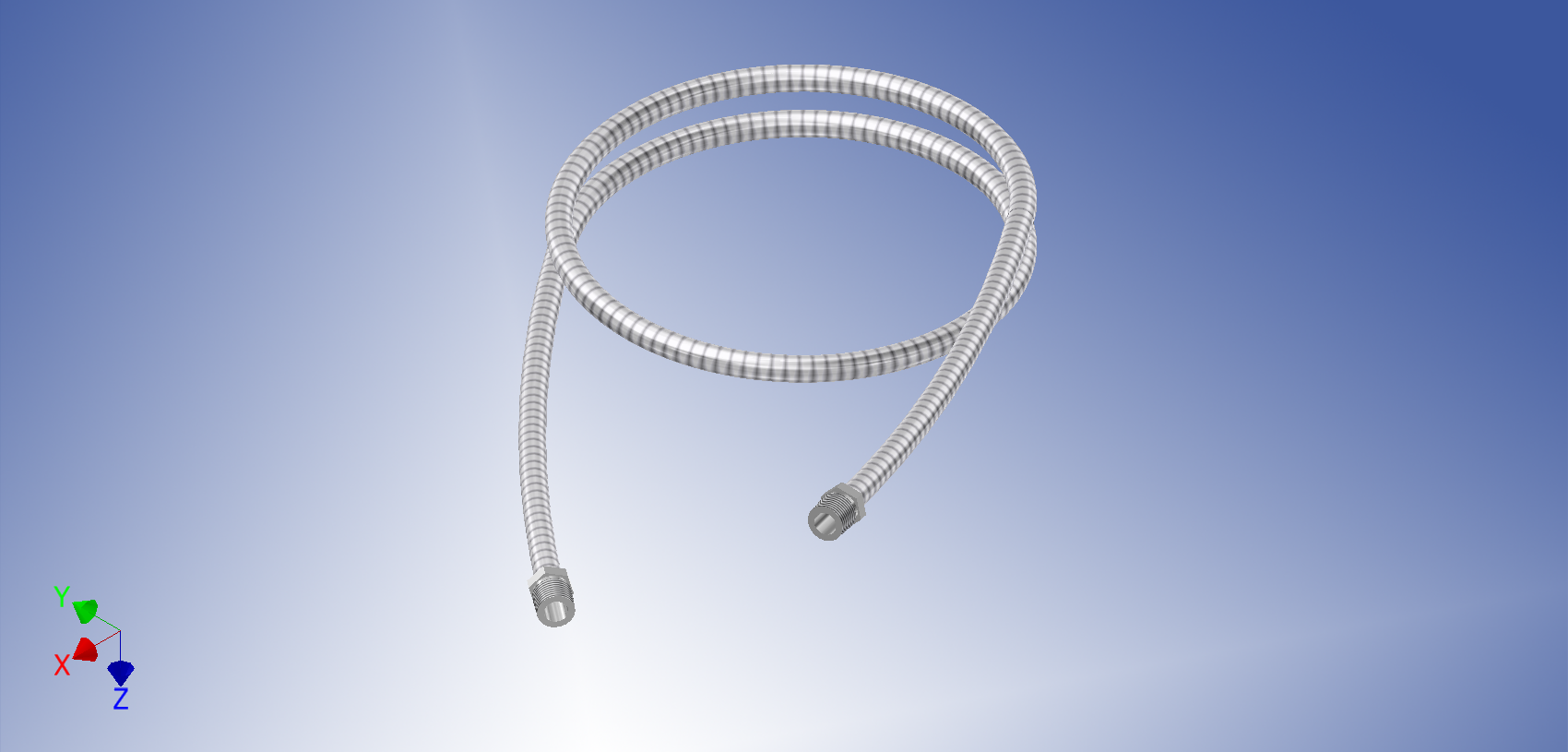

Hose 2.png Hose 2.png Hose.png Hose.png Hose.STEP Hose.SLDPRT
CadCloud
CadCloud
Answered on 9 Oct, 2018 09:01 AM

Just make a helix tube and use a texture quick and simple

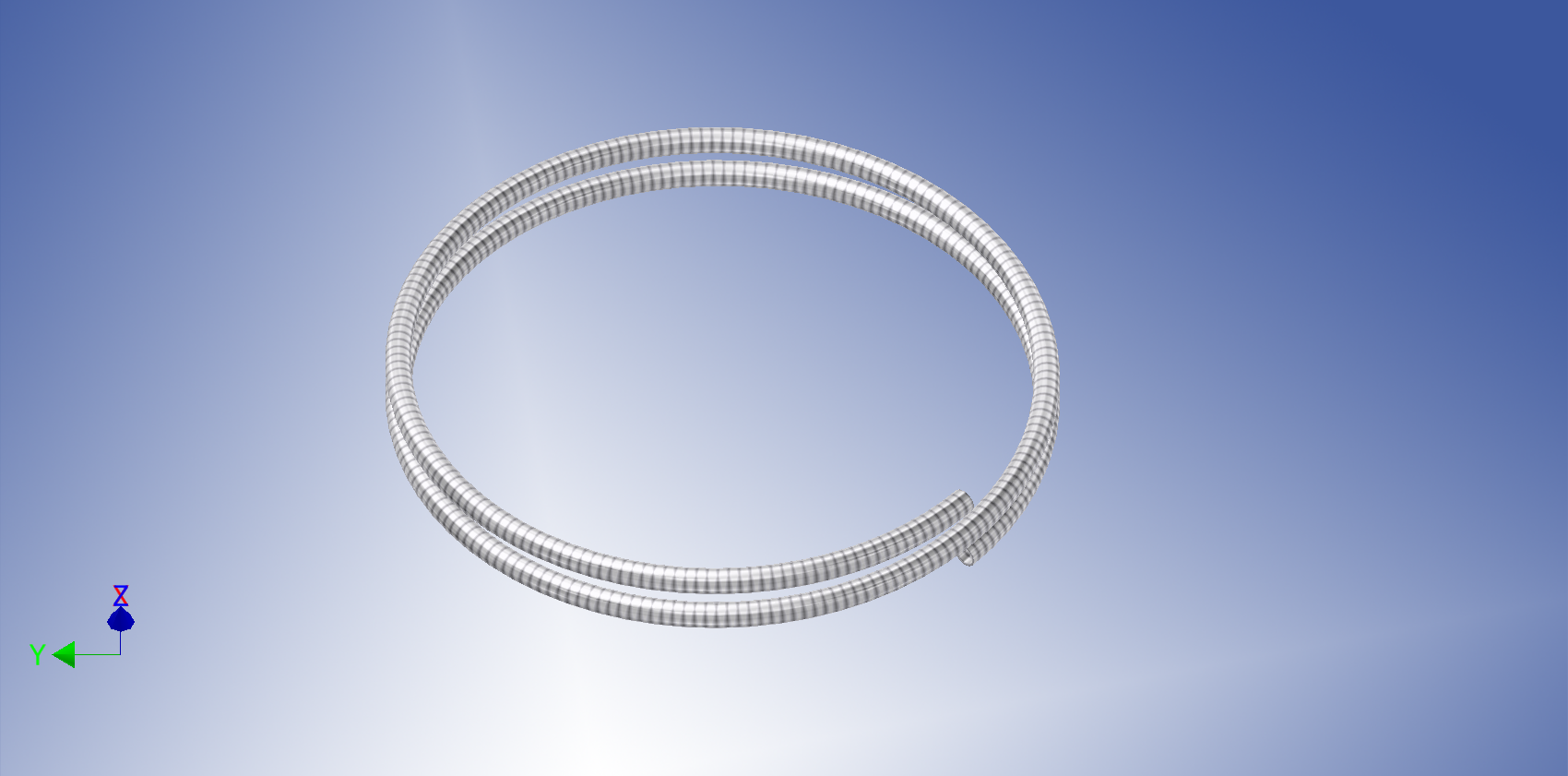

Assembly1.png Assembly1.png Part3.png Part3.png Pattern_7b_bump.bmp
