How can I create a 3D drawing of a non-standard flexible tank and validate its volume?

cirin haweti
cirin haweti
18 Sep, 2023 02:16 PM

Height of 0.4 meters, a width of 1 meter, and a length of 1.2 meters.

1 Answer

patson machida
patson machida
Answered on 19 Sep, 2023 02:23 PM

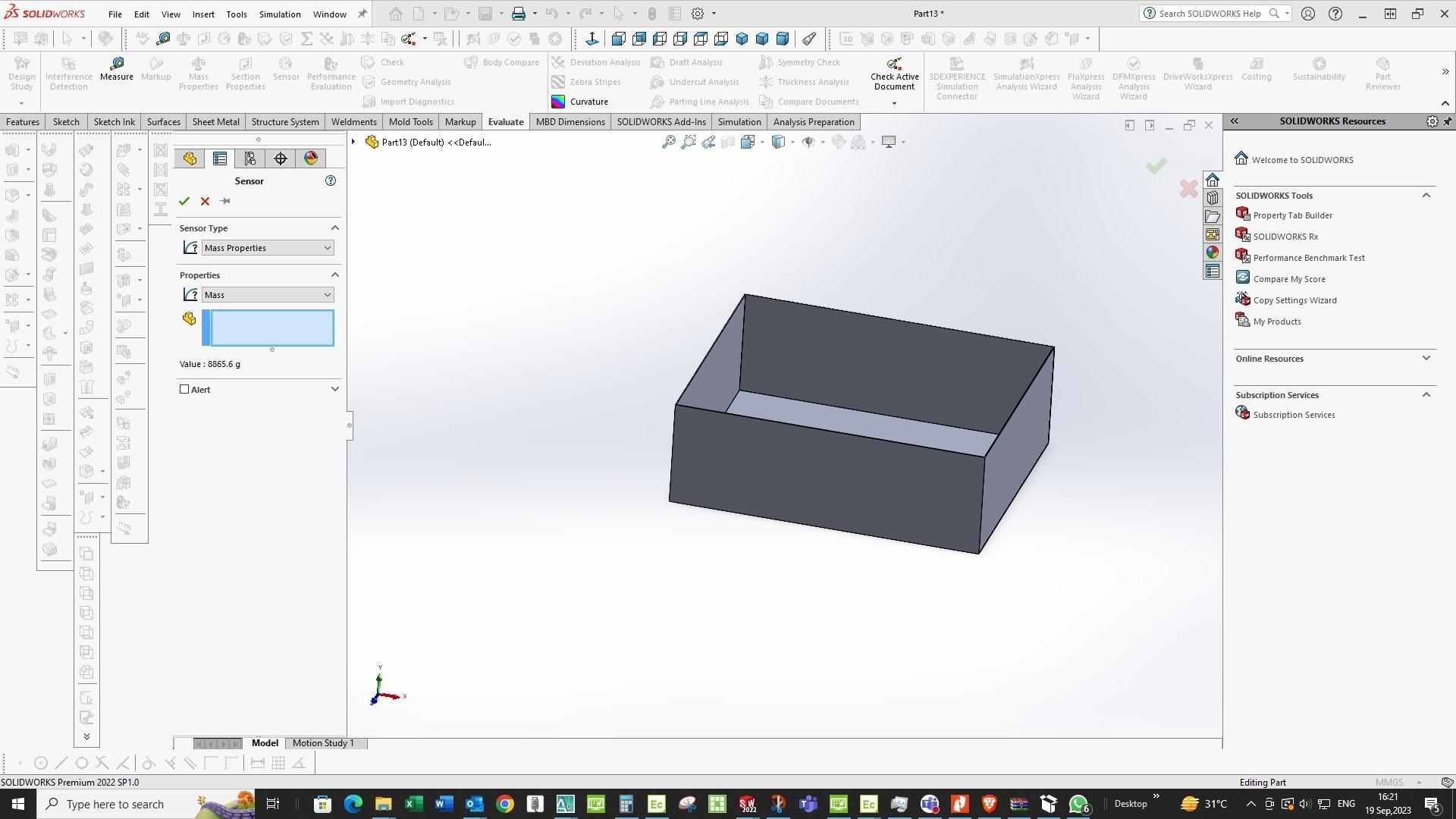

Using Solidworks, extrude a 1200mm x 1000mm rectangle to a height of 400mm.Go to Evaluate tab and click Sensor. Modify under properties and set to Volume

VOLUME.jpg VOLUME.jpg
