How can I make this model which I have attached below.

Jabz
Jabz
27 May, 2023 02:15 PM

all dimensions are in mm and please share the model. and if you can teach me please...

100M21940010-1.pdf

2 Answer

Wojciech S.
Wojciech S.
Answered on 29 May, 2023 07:58 PM

Here is the information you requested, but please note that it may not be comprehensive as some dimensions are missing.

Opierka sprahla.IGS
Jack K
Jack K
Answered on 29 May, 2023 10:38 PM

Interesting part, but not as complex as it looks. Terrible drawing with several missing dimensions and unclear dimensions. I hope these views hope you understand the shape.

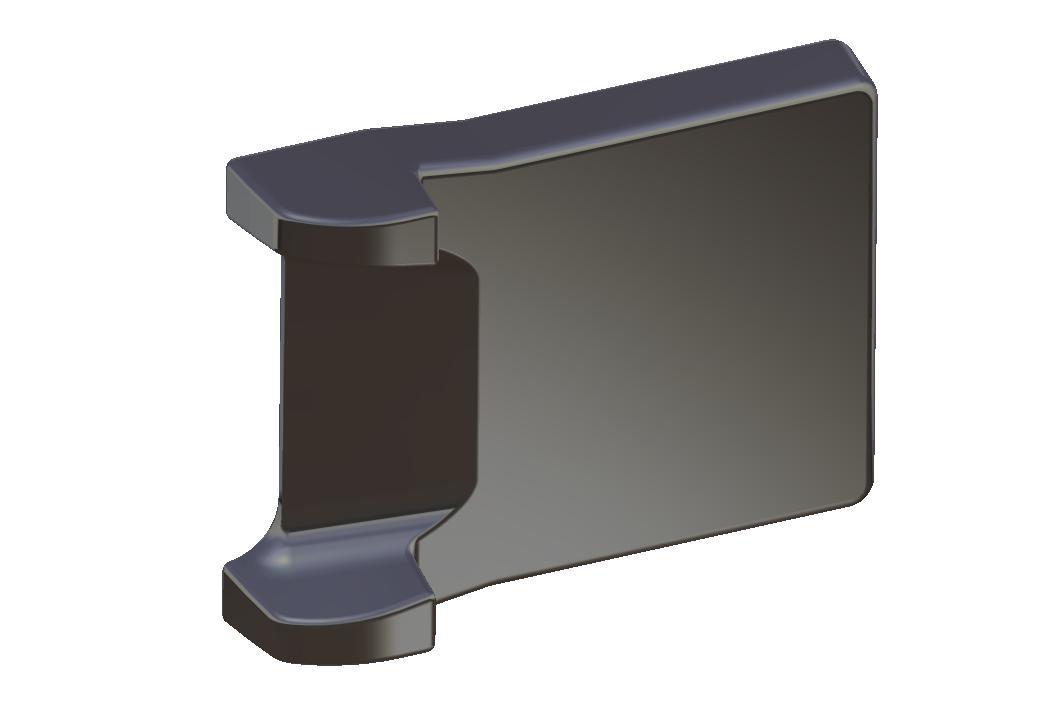

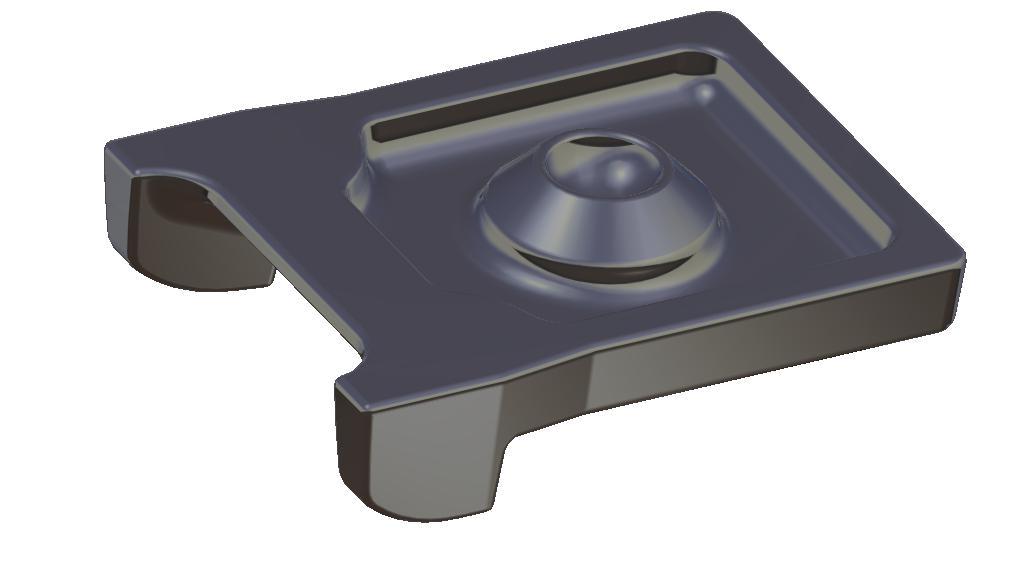

forging top.jpg forging top.jpg forging bottom.jpg forging bottom.jpg
