How do I make a simple positive clasp and barrel hinge for a box or case in Inventor 2012?

christopher manzo
christopher manzo
28 Jul, 2013 01:05 PM

Designing smartphone cases with lids. Need a hinge design and a positive clasp design that is simple to mfgr. Thanks! C

3 Answers

rak
rak
Answered on 8 Aug, 2013 12:56 PM

Is this the type of hinge you are looking?

hinge.jpg hinge.jpg hinge.iam
christopher manzo
christopher manzo
Answered on 9 Aug, 2013 09:01 PM

Hey Rak,

Nope.... plastic shell design... so a hinge for a lid that slips into a shell case. www.kit-case.com for images

Thanks! C

rak
rak
Answered on 10 Aug, 2013 04:29 AM

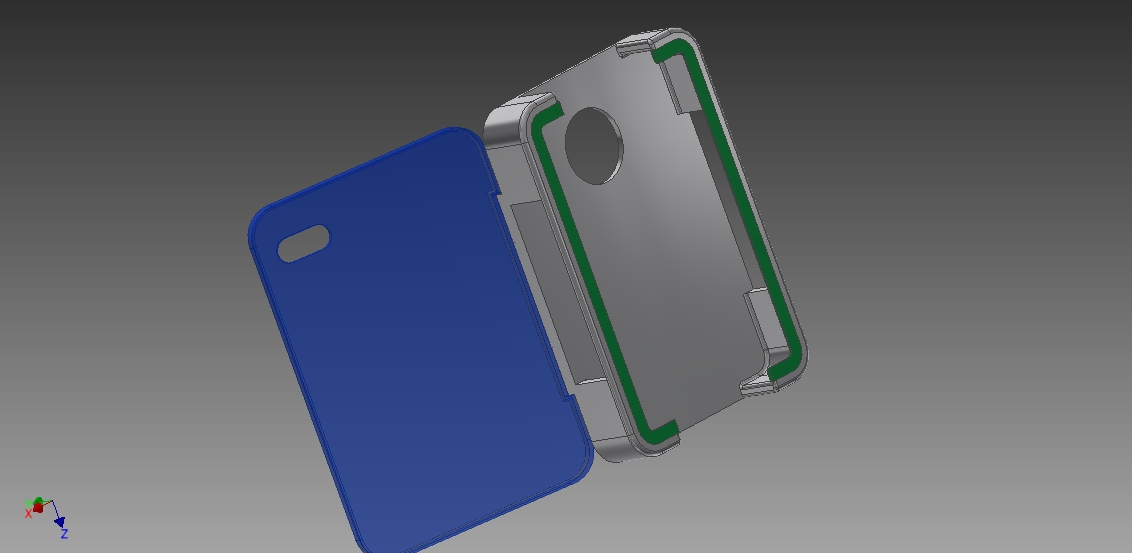

may this is the type of thing you want, if it is helpful ok. otherwise sorry.

case1.jpg case1.jpg case.jpg case.jpg case4.iam case4.stp
