How rotary motion converted to the linear motion ?

hyperloop
hyperloop
5 Jan, 2020 05:43 AM

Hi Everybody, does anybody know what is the mechanism used in that video to convert rotary motion to the linear motion ? I think it is kind of ball screw mechanism but it seems a bit different. Waiting for the comments of the experienced people in this kind of mechnaisms.

https://www.youtube.com/watch?v=G-bFshuT9Dk

3 Answer

Jay Panchal
Jay Panchal
Answered on 9 Jan, 2020 03:42 PM

Simple, For repetative linear motion : go for slider-crank mechanism or scotch yoke mechanism, and for continuous mechanism rack and pinion or screw mechanism

Schematic-representation-of-a-planar-slider-crank-mechanism.png Schematic-representation-of-a-planar-slider-crank-mechanism.png
hyperloop
hyperloop
Answered on 26 Jan, 2020 06:48 PM

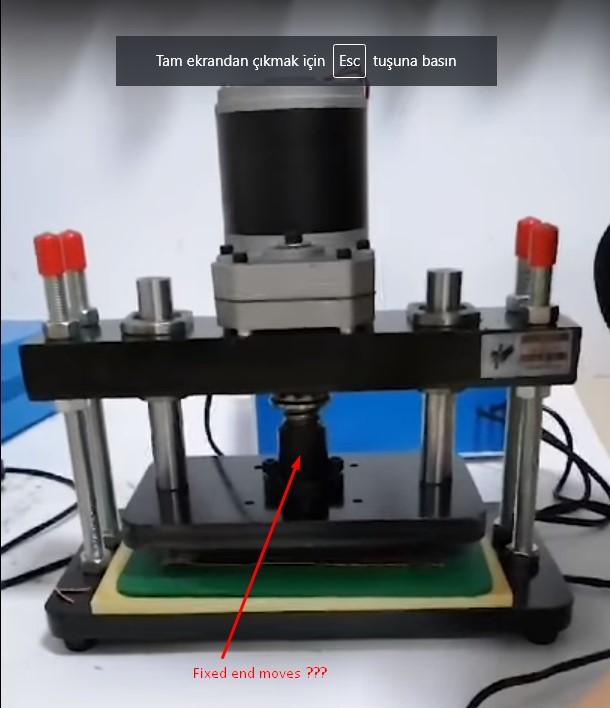

If you check the video I shared, there the fixed end movess ??? how is that ?

EDCM-screww.jpg EDCM-screww.jpg
Yahya T Khedr
Yahya T Khedr
Answered on 5 Jan, 2020 10:51 AM

It is a screw mechanism...
