How to complete full rotation of connecting rod shown in the attached figure ?

Mohamed Irfan
Mohamed Irfan
4 Dec, 2015 03:09 AM

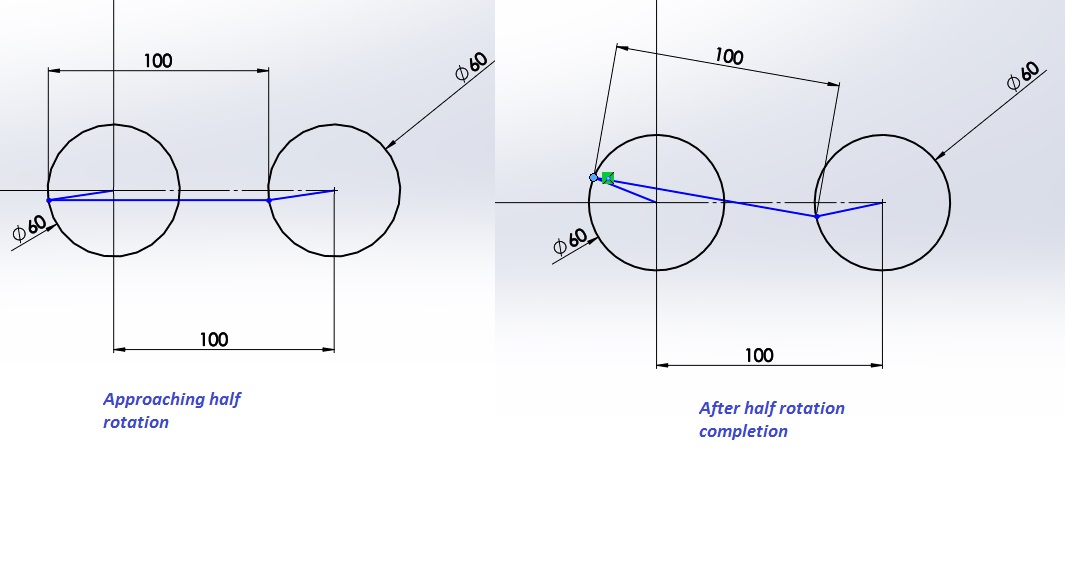

I want to transfer the complete rotation of the left crank to the right one with the help of connecting rod. I have made a representation of it in the attached pictures.

cranks with connceting rod2.jpg cranks with connceting rod2.jpg cranks with connceting rod.jpg cranks with connceting rod.jpg

1 Answer

Roger Couture
Roger Couture
Answered on 21 Feb, 2016 06:40 PM

Did you try to adTry adding a parallel constraint between two short segments or between two long segmentsd a parall
