How to create accurate model of an Airfoil? -SW-

Mustafa Eroglu
Mustafa Eroglu
8 Mar, 2016 08:09 PM

What are the most commonly used features in SolidWorks to model an Airfoil and what is the best parametric method?

2 Answer

Mustafa Eroglu
Mustafa Eroglu
Answered on 8 Mar, 2016 08:25 PM

Here is the answer:

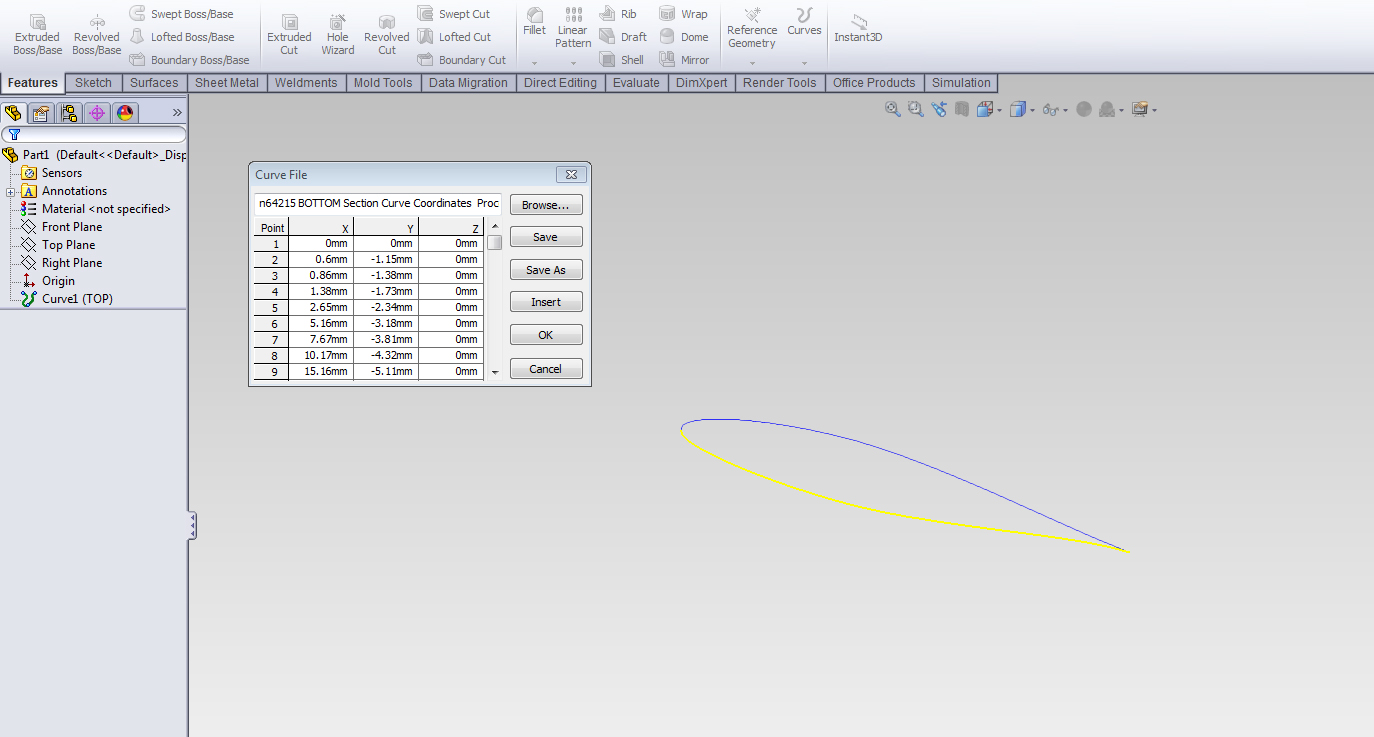

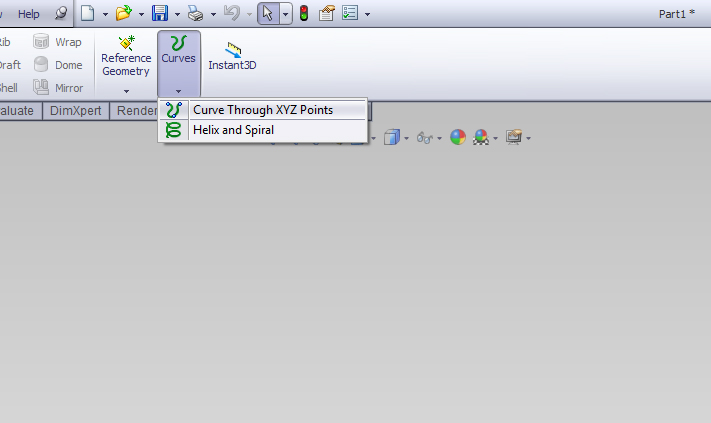

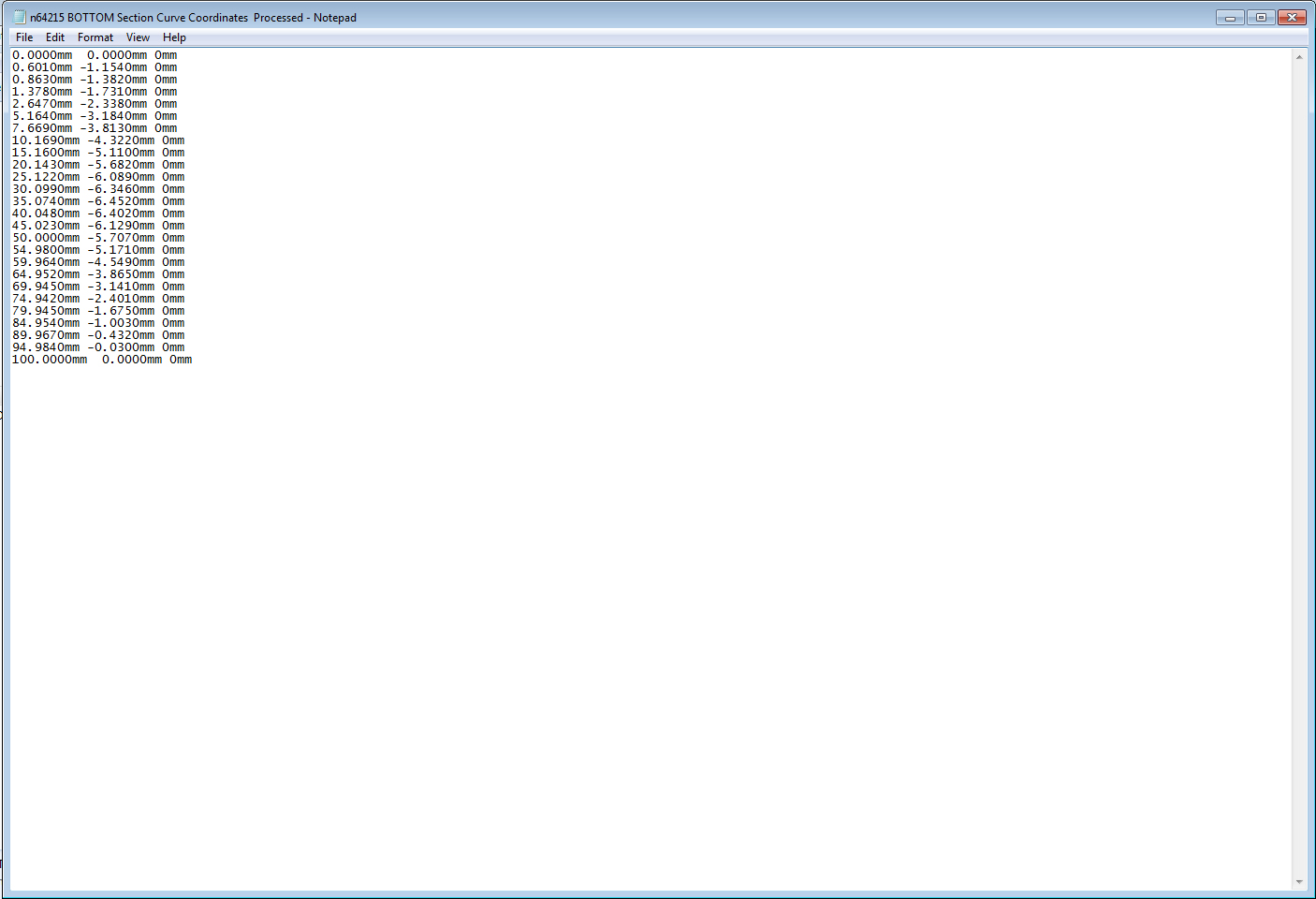

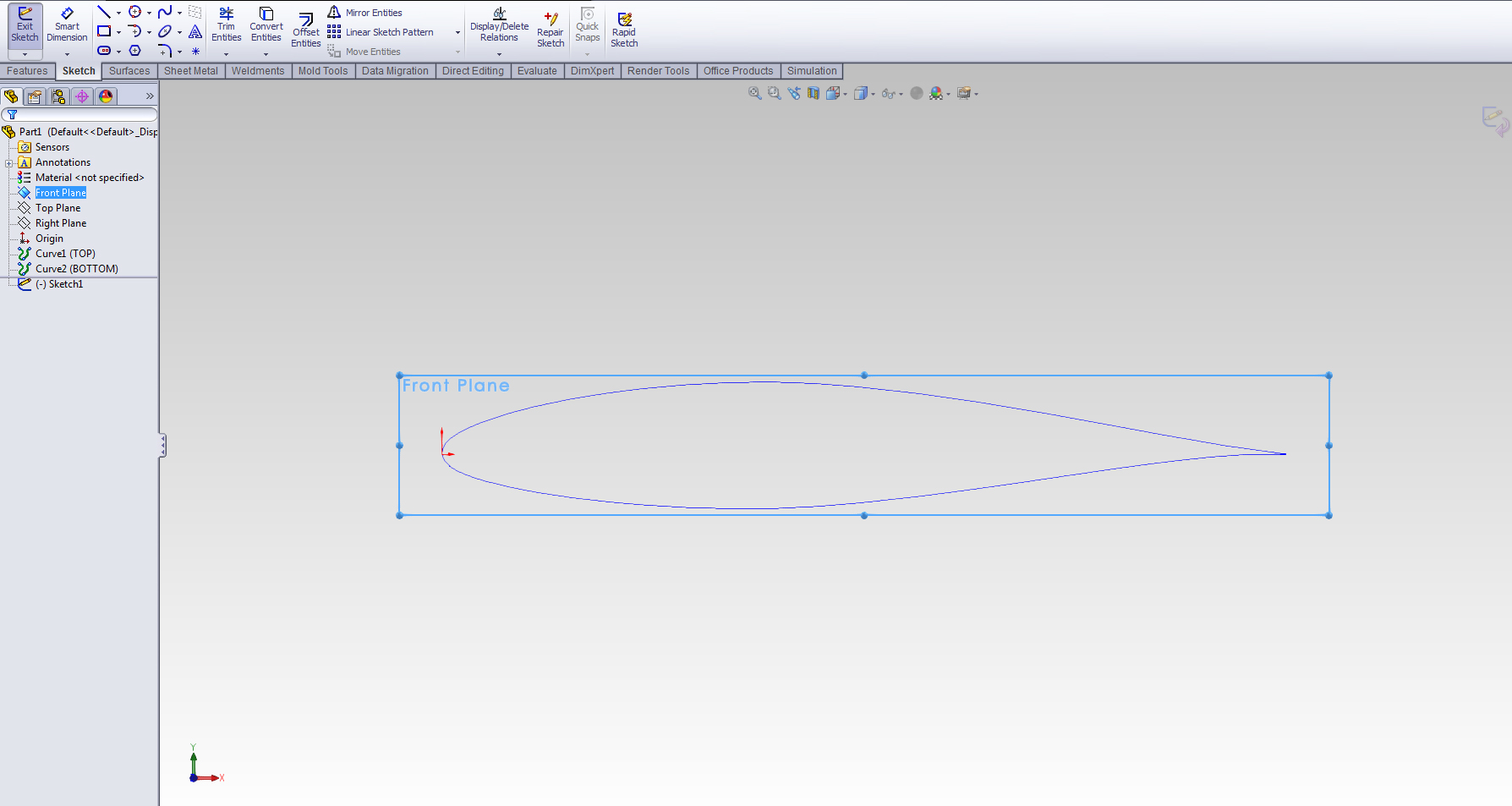

Answered with a tutorial: https://grabcad.com/tutorials/how-to-create-accurate-model-of-an-airfoil-sw

15-Result.jpg 15-Result.jpg 14-Process08.jpg 14-Process08.jpg 13-Process07.jpg 13-Process07.jpg 12-Process06.jpg 12-Process06.jpg 11-Process05.jpg 11-Process05.jpg 10-Process04.jpg 10-Process04.jpg 09-Process03.jpg 09-Process03.jpg 08-Process02.jpg 08-Process02.jpg 07-Process01.jpg 07-Process01.jpg 06-n64215 BOTTOM Section Curve Coordinates Processed.jpg 06-n64215 BOTTOM Section Curve Coordinates Processed.jpg 05-n64215 TOP Section Curve Coordinates Processed.jpg 05-n64215 TOP Section Curve Coordinates Processed.jpg 04-Airfoil Data.jpg 04-Airfoil Data.jpg 03-Web Resource03.jpg 03-Web Resource03.jpg 02-Web Resource02.jpg 02-Web Resource02.jpg 01-Web Resource01.jpg 01-Web Resource01.jpg n64215 BOTTOM Section Curve Coordinates Processed.txt n64215 TOP Section Curve Coordinates Processed.txt n64215.txt Airfoil Naca 642-215.x_b Airfoil Naca 642-215.STL Airfoil Naca 642-215.SLDPRT
Mustafa Eroglu
Mustafa Eroglu
Answered on 2 Jul, 2016 12:15 AM

Best parametric method explanation video:
https://youtu.be/MCHupWfi66g
Please support my channel (subscribe):
https://www.youtube.com/channel/UC4ez127XmLlHsRnSEeyhcGQ
