How to make a rectangular spiral coil
Hello Every One!
Help Me About Make The Make A Rectangular Spiral Coil

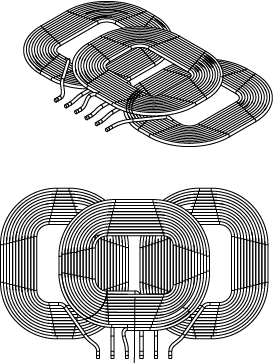

I Wanted To Make 3D Path For Making Wireless Charging Coils Model.
With Thanks.
Accepted answer
Here is the way I would do it.

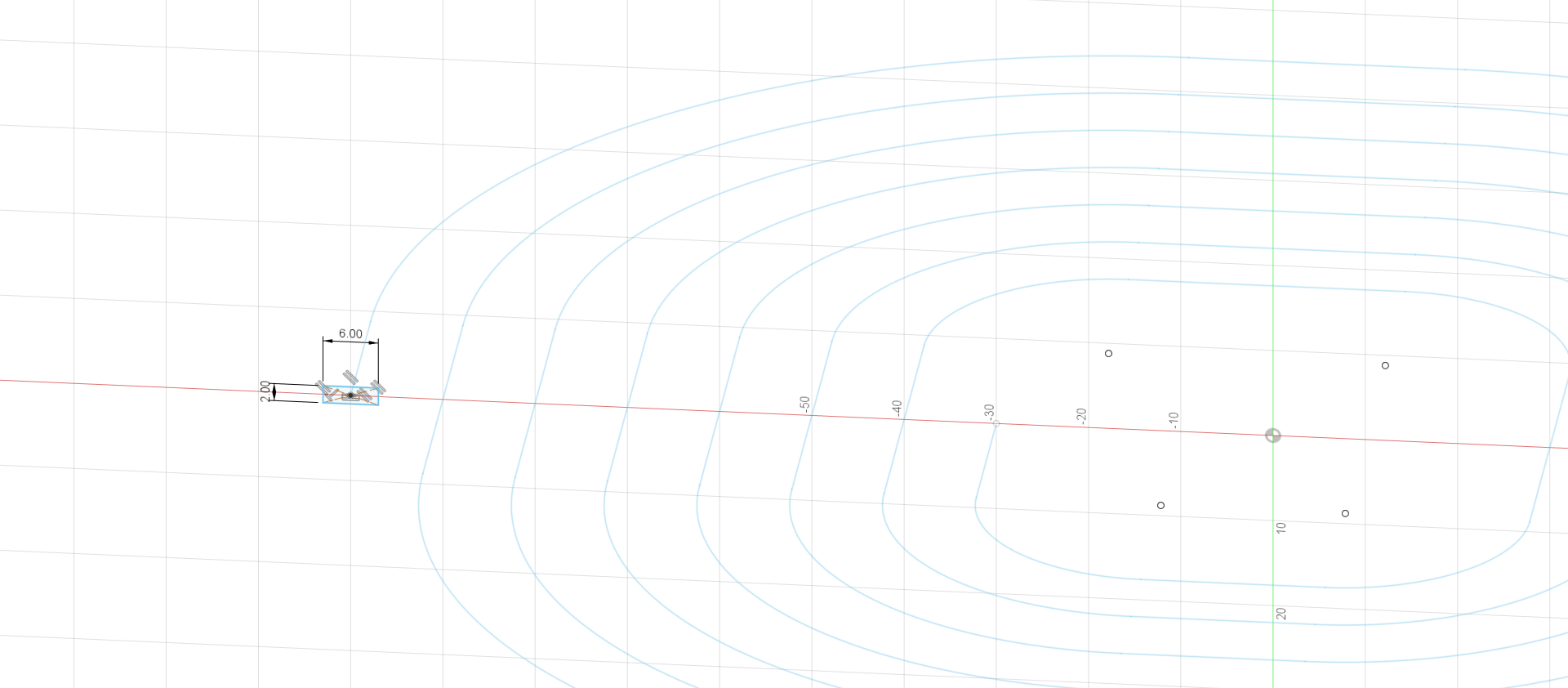

Set your grid lines to your desired spaces.
Sketch continuous lines from your start to end.
Add fillet accordingly as per spaces.
Create a new sketch for your profiled shape.
Use the Sweep tool to create your solid shape.
Grid Setting at 10mm.png

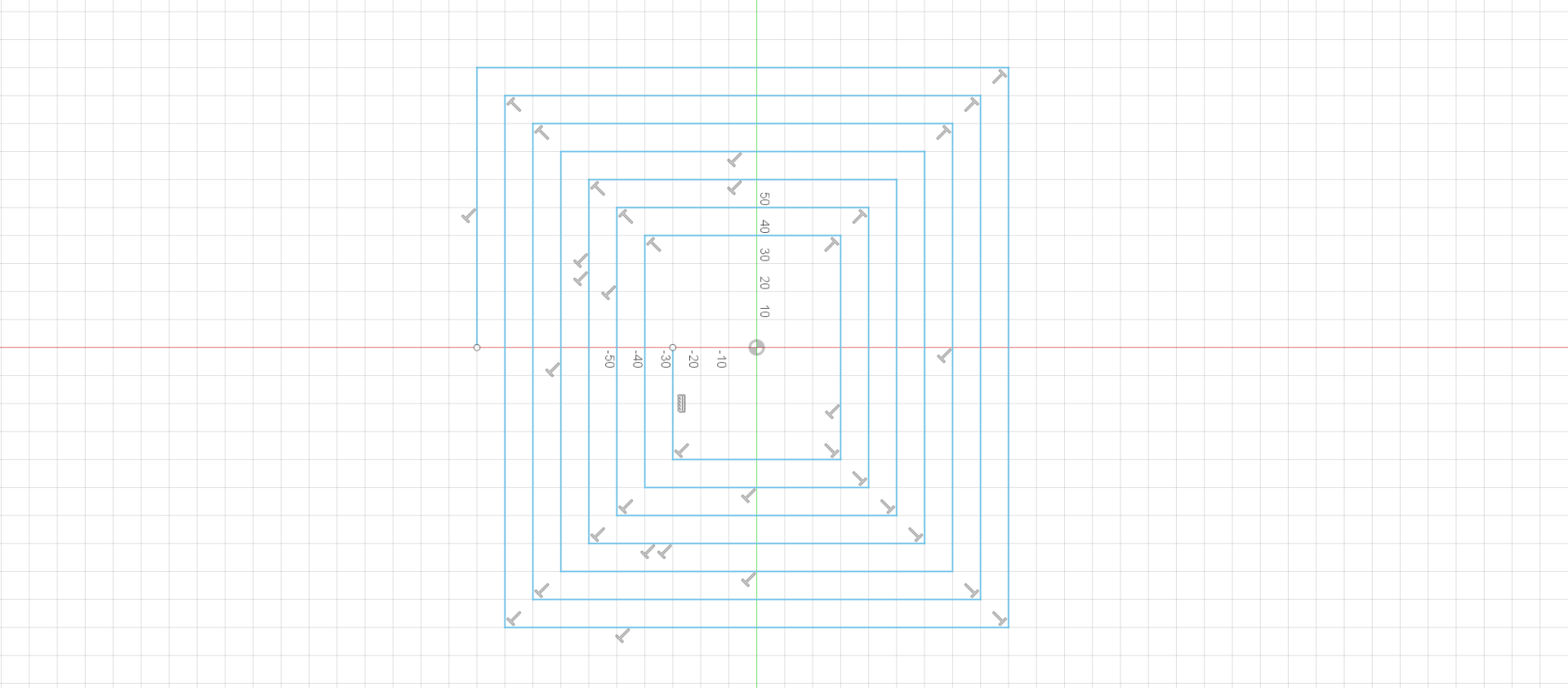

Grid Snap Lines.png

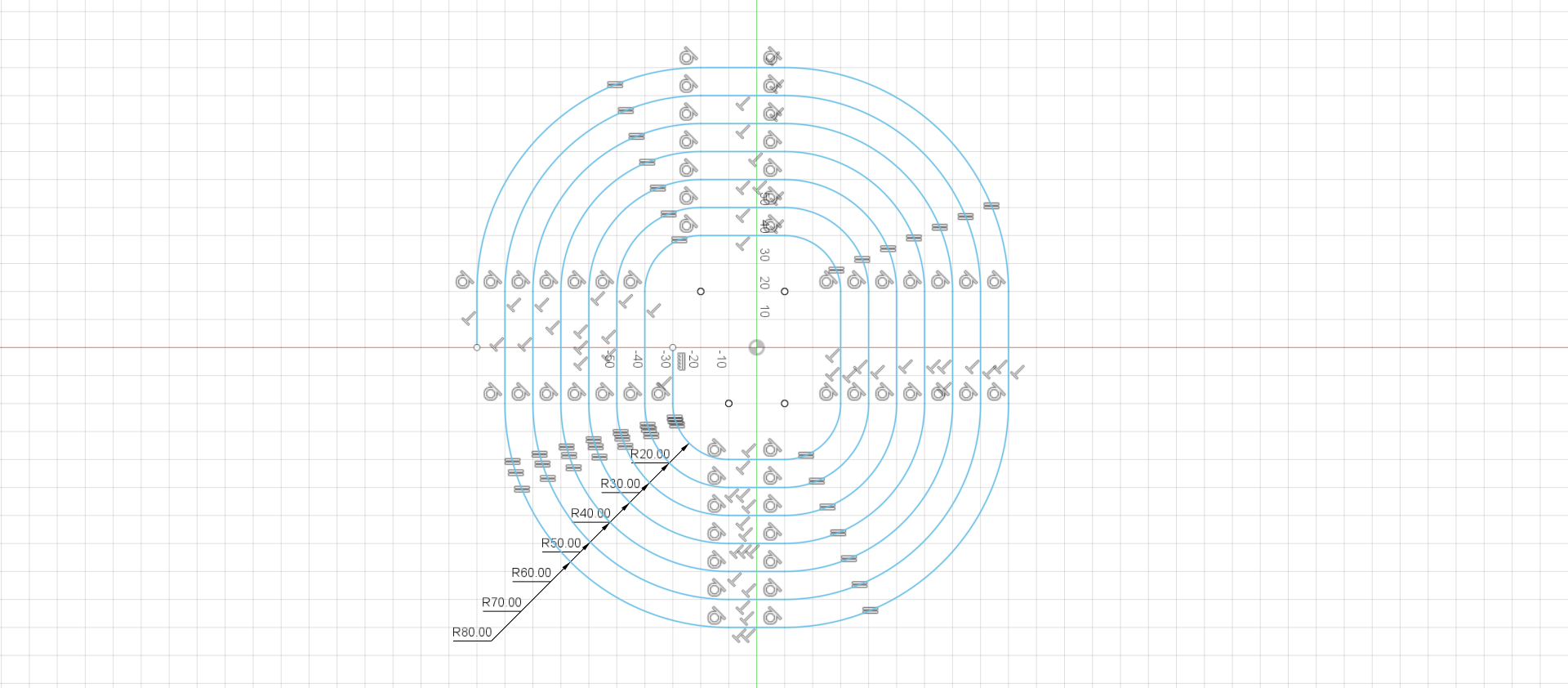

Grid Fillet Corners.png
Second Sketch Coil Shape.png
Sweep Tool for Solid.png
1 Other answer

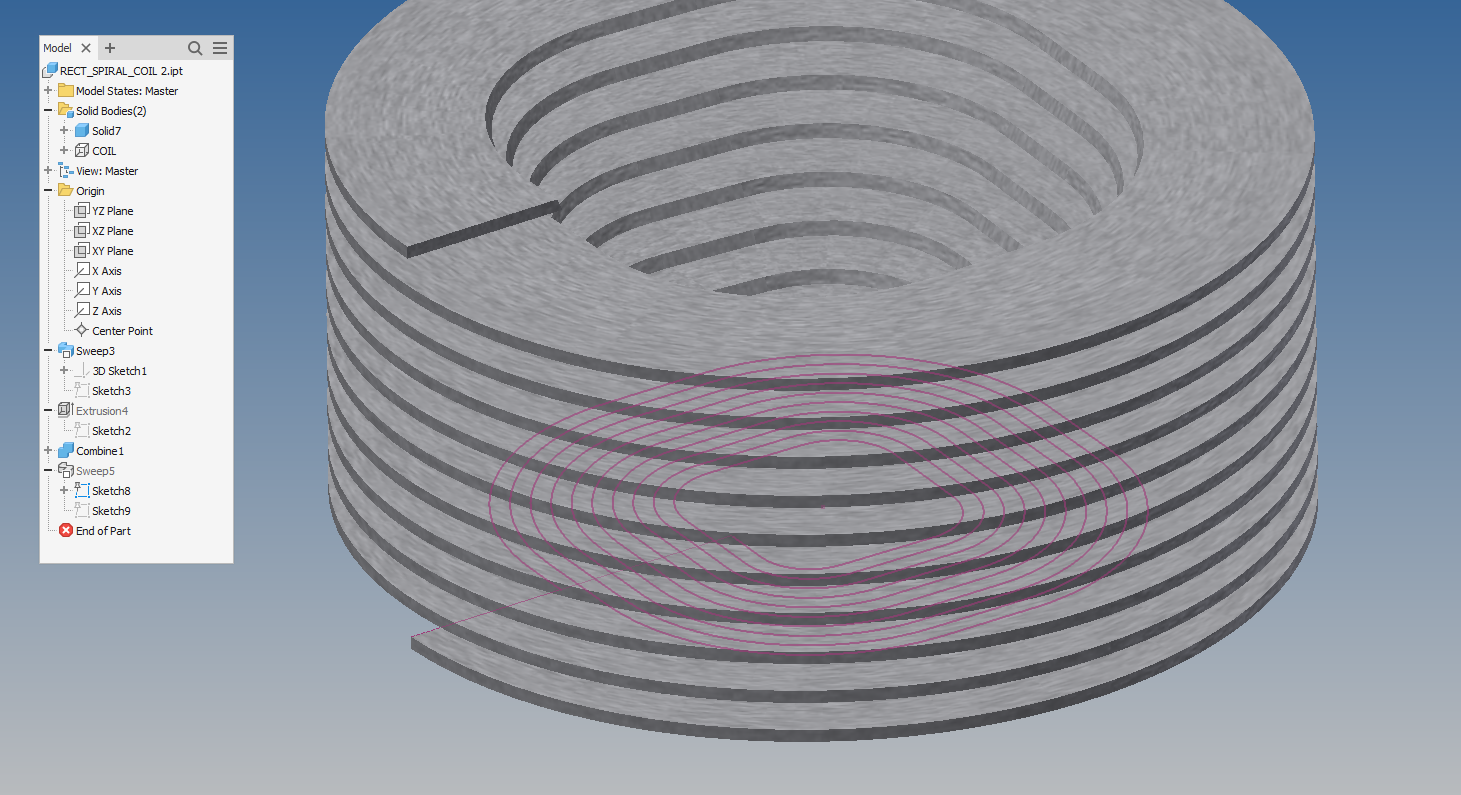

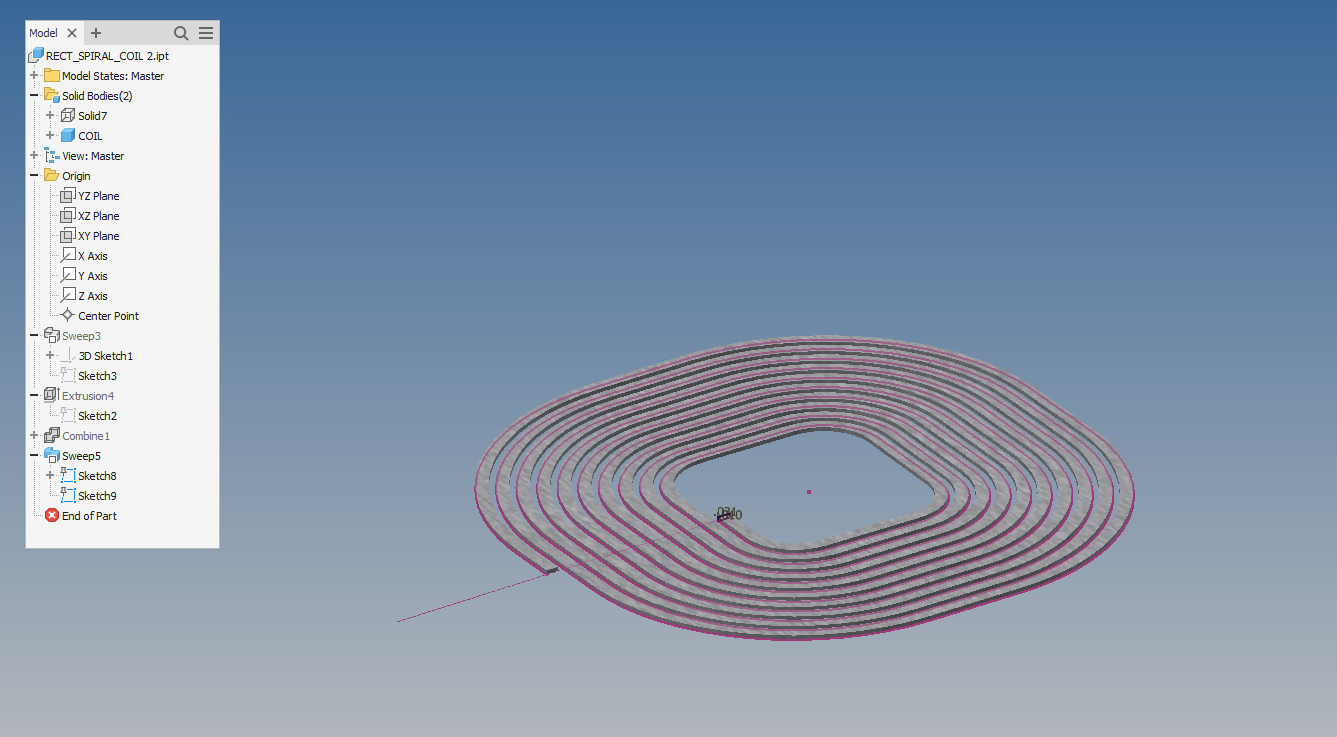

I like the method that Carlos used. Just playing around I came up with an alternative. While it's slightly more parametric. It is a little complicated.

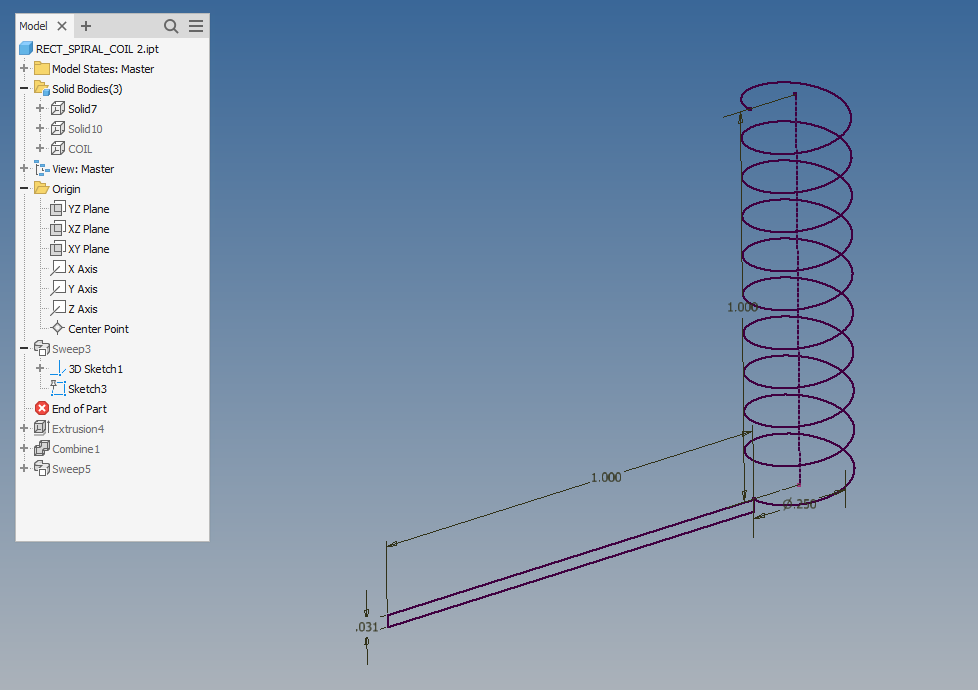

1. Start with a simple 3d Sketched coil.

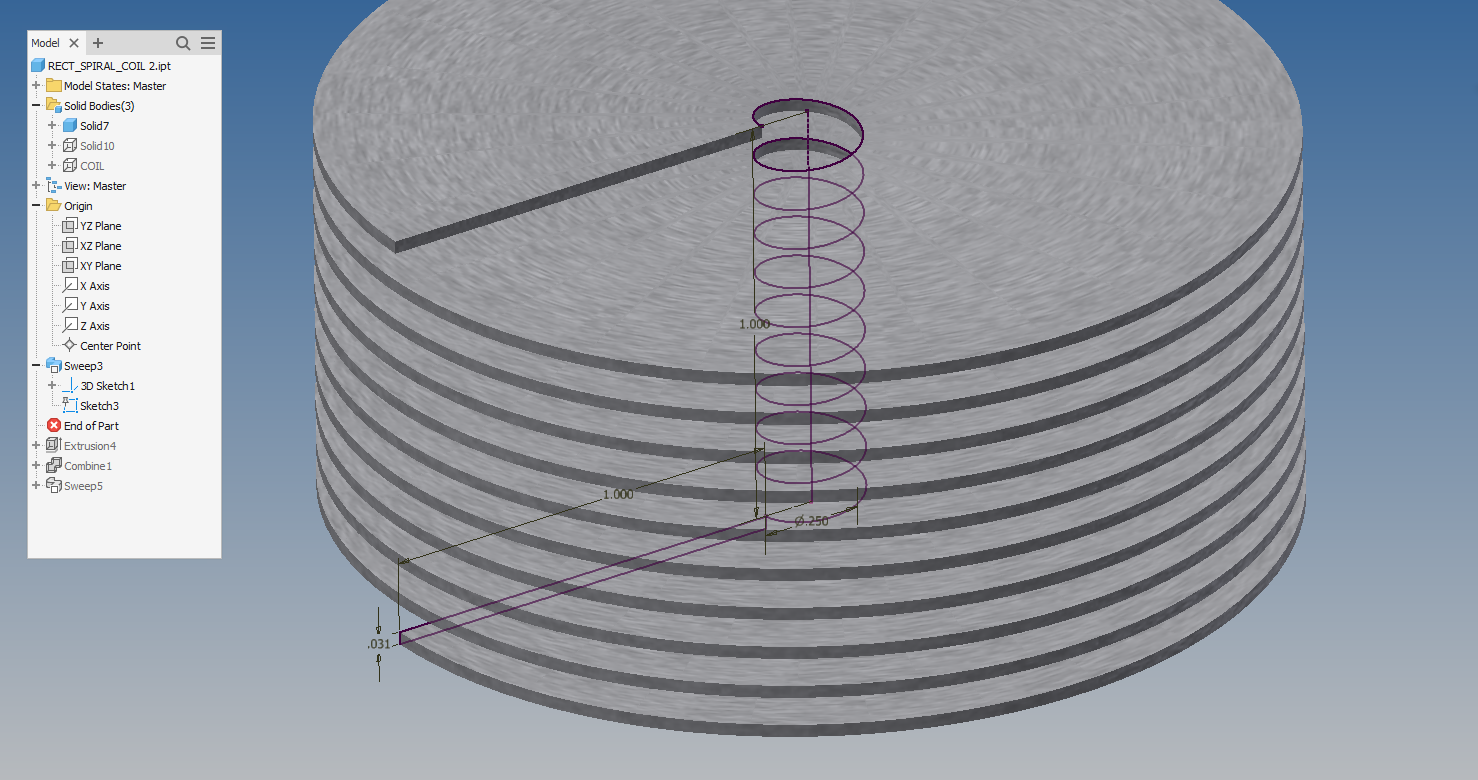

2. A simple thin rectangle is swept along the coil to create the first solid.
3. Then a sketch describing the innermost coil is draw.

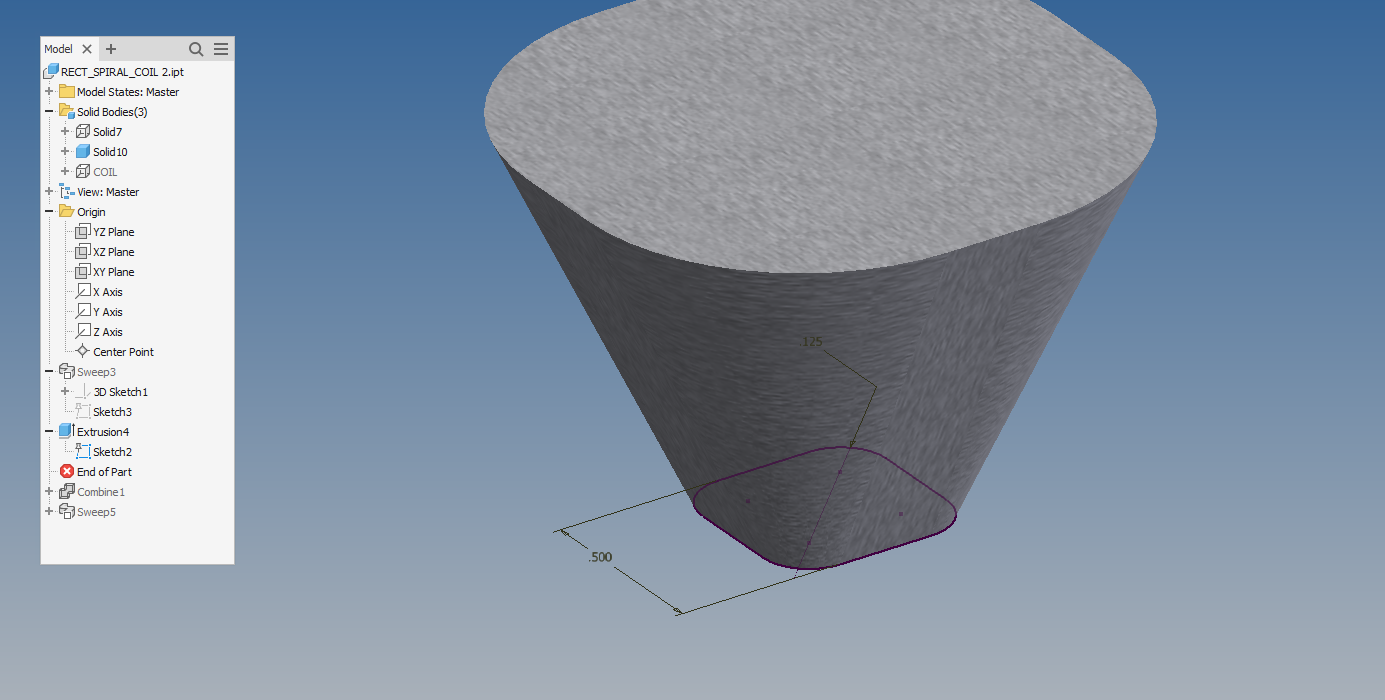

4. A tapered extrusion is created from that sketch to create a second solid.

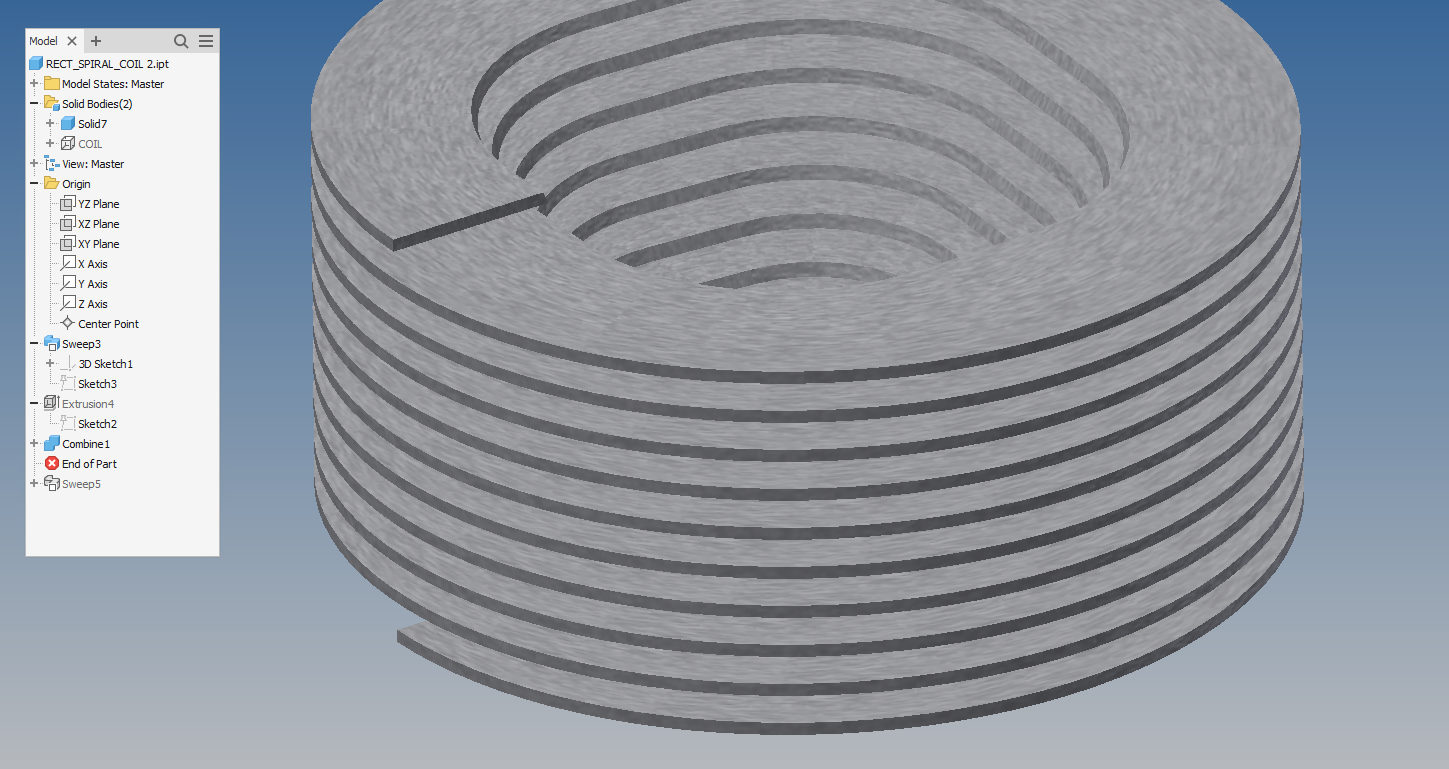

5. The second solid is subtracted from the first.

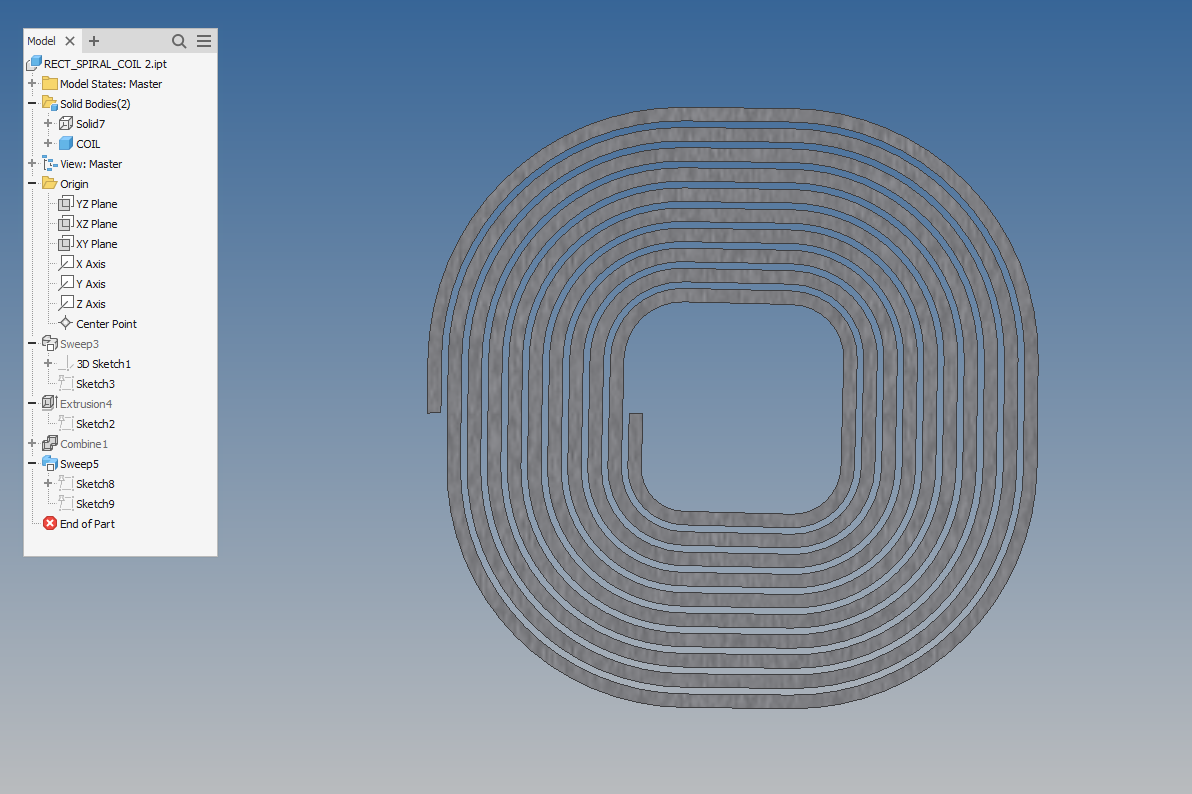

6. The spiral surface created from that combine is projected back onto a simple 2d sketch.
7. A profile of the wire cross section is swept along that 2d Sketch.
The only real problem with this method is the distance between the coils is a function of the taper angle of the second solid. However, it's not to difficult to do the trig on this.
RECT_SPIRAL_COIL.ipt
