How to make bends on a cylinder in Solidworks?

Brian
Brian
25 Jan, 2017 06:19 PM

Hi,
I am beside myself trying everything I know to build this shape into a sheet metal part. I have drawn it a as a part file an have built it out of brass shim stock.
Part thickness 0.005"
Can anyone help or give advice.

Best Regards,

Brian

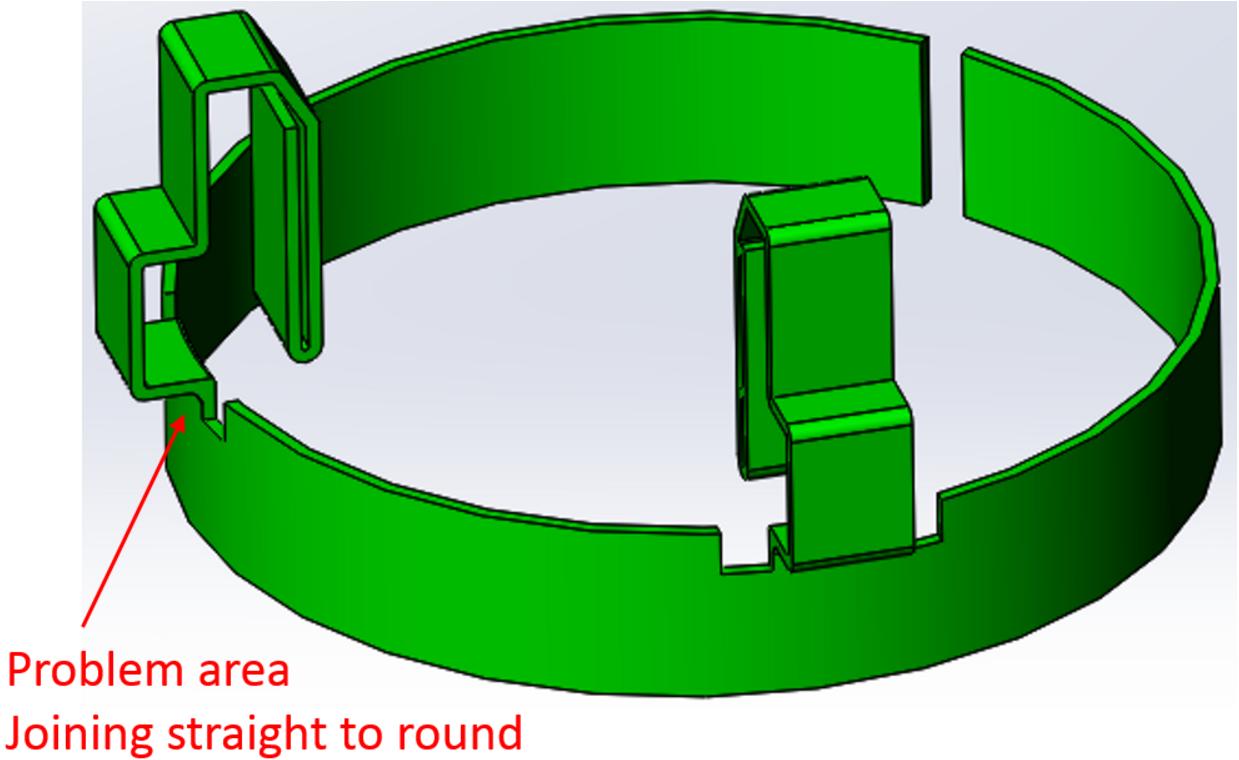

Brass part.jpg Brass part.jpg join problem.jpg join problem.jpg Opt.3 - Sheet Metal Connector_ Fitting.SLDPRT

2 Answers

Robert H.
Robert H.
Answered on 25 Jan, 2017 08:09 PM

You need a flat zone wherever you need to place a bend out of the main cylinder.

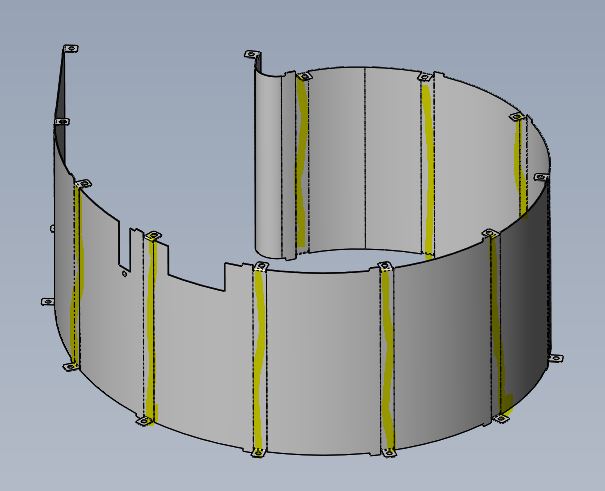

In the attached pic, all the highlighted areas are 'planar' chord segments embedded in the overall curvature of the part.

flat zones.JPG flat zones.JPG
Ryan M
Ryan M
Answered on 26 Jan, 2017 04:12 PM

Please see my attached part file, you should be able to modify it to make your part. It unfolds no problem.

63326.SLDPRT
