How to make mold of this part??

vipin kumar
vipin kumar
9 Oct, 2015 11:41 AM

Hey i try to make mold of this part but their is problem of draft i dont know what to do if any one can solve my problem plz solve thanks in advanced!!

exact_length_soul_lower_4.IGS

2 Answers

Brad Lundell
Brad Lundell
Answered on 19 Nov, 2015 02:54 AM

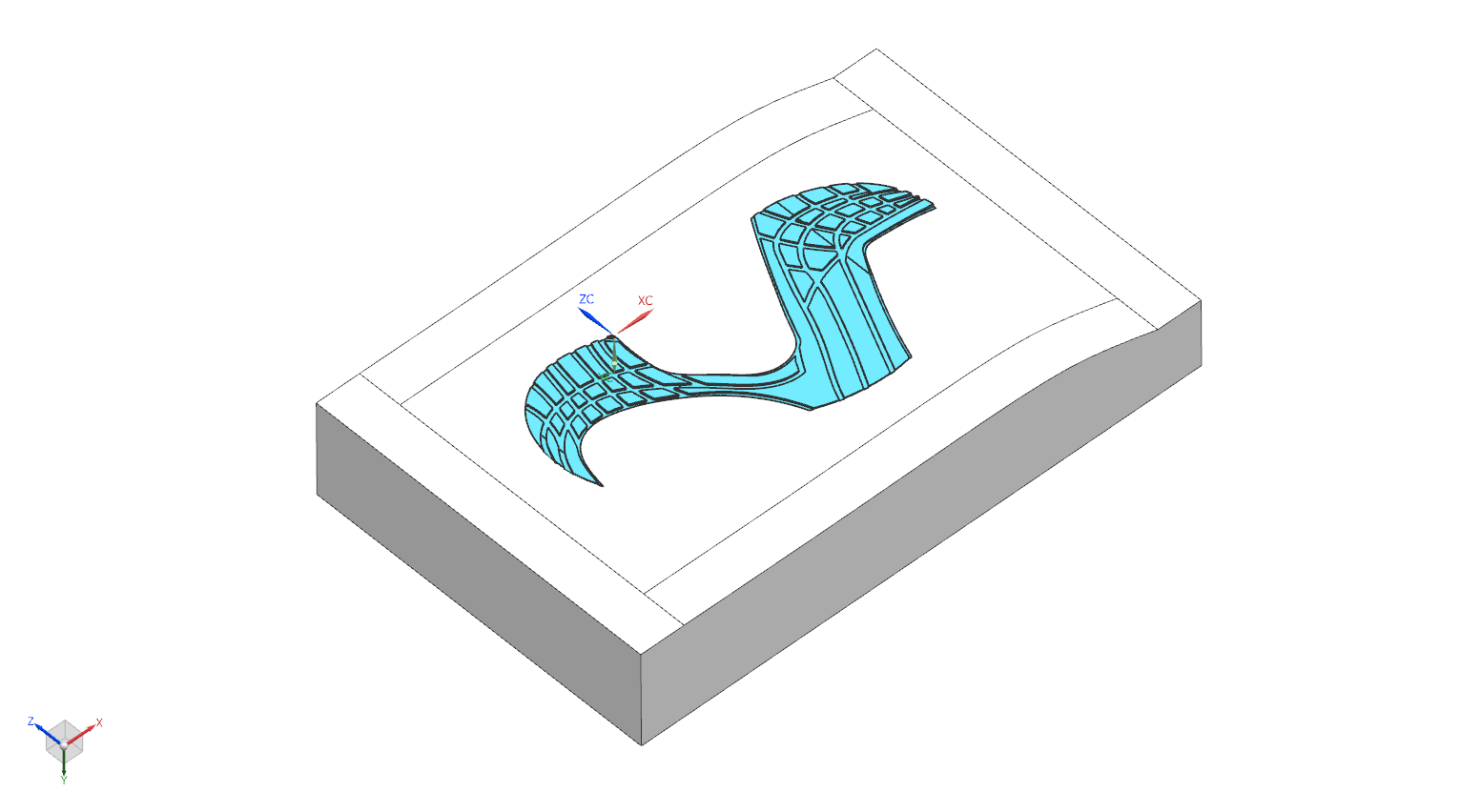

Is this the kind of mold you want?

Answered with a tutorial: https://grabcad.com/tutorials/how-to-make-mold-of-this-part

Mold 2.PNG Mold 2.PNG Mold.PNG Mold.PNG
Coskun Kuscu
Coskun Kuscu
Answered on 20 Nov, 2015 11:34 AM

hello @vipin kumar

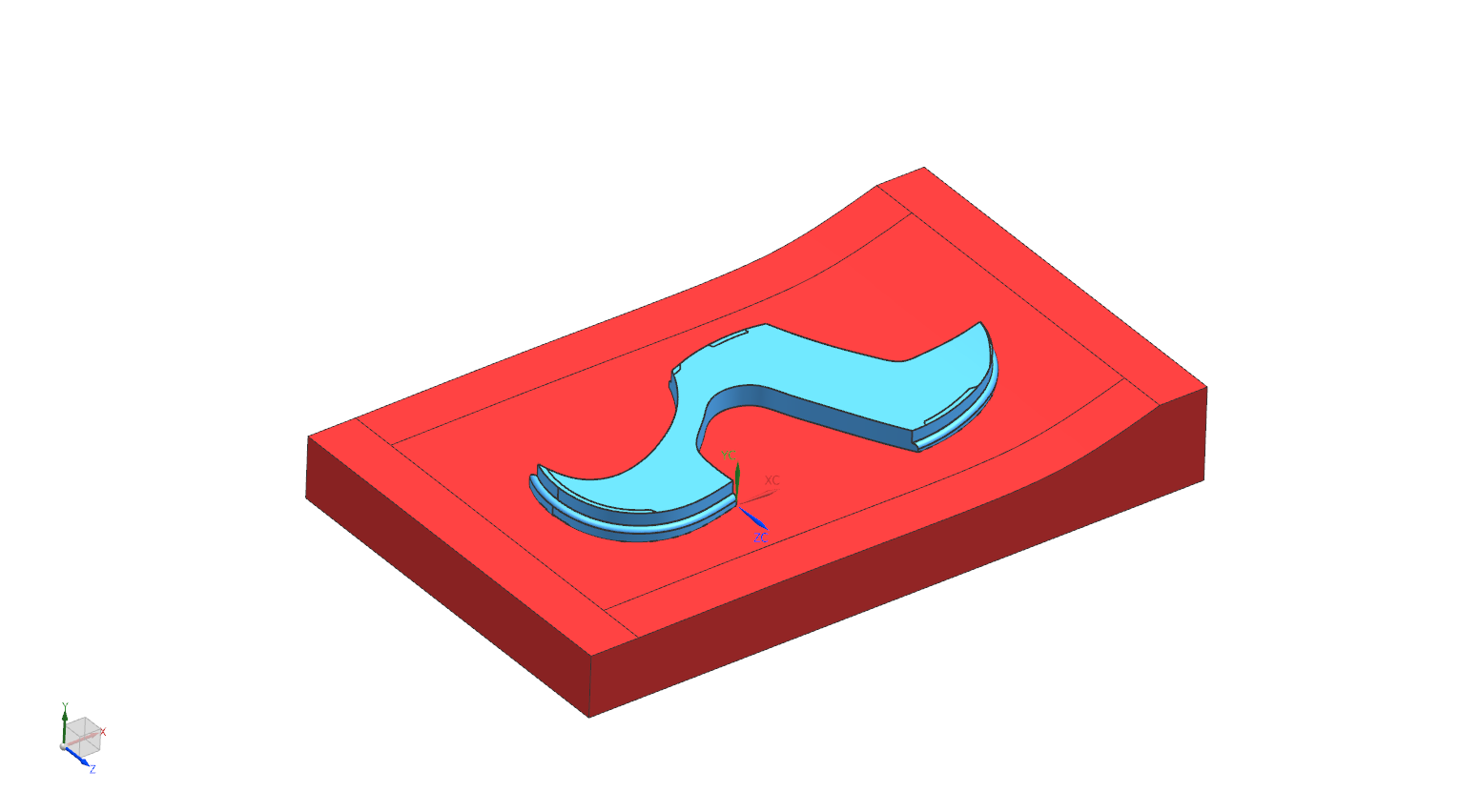

core cavity core distinction may in this way.
I'm sorry for my bad english

3.png 3.png 2.png 2.png 1.png 1.png exact_length_soul_lower.x_t exact_length_soul_lower.stp exact_length_soul_lower.igs
