How to model a helical coil with different pitch

nasir
nasir
25 May, 2020 06:40 PM

How to model a helical coil with different pitch in inventor
Thanks about your answers

2 Answers

Danny Key
Danny Key
Answered on 27 May, 2020 06:27 AM

Hoi Nasir,

I wil attach a file as example and a pdf printsreen.
I think you mean somthing like that.
Example is Inventor 2020

Greetings

Danny

HelicalCoilWithDifferentPitch.ipt helical coil with different pitch.pdf
Bob Wiley
Bob Wiley
Answered on 28 May, 2020 01:30 PM

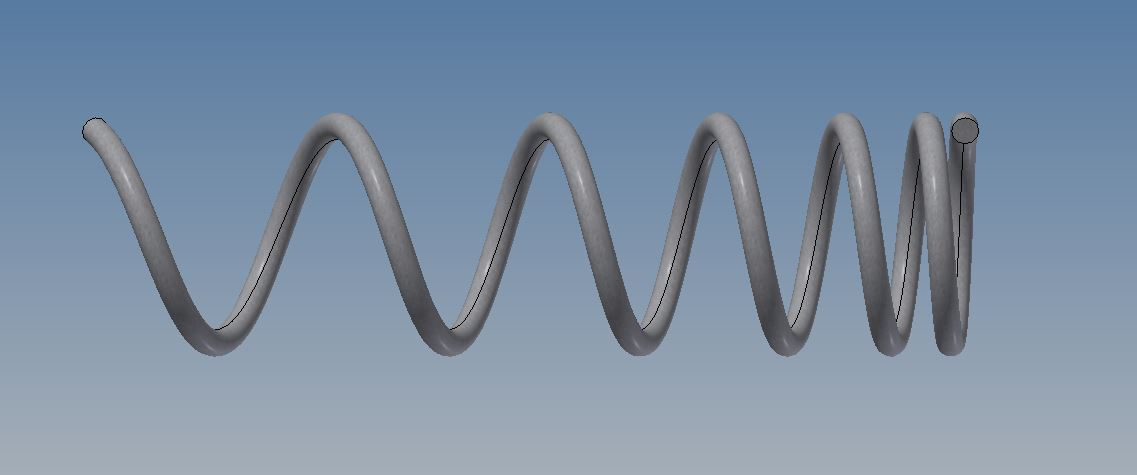

Or do you want it variable pitch like this?

variable_pitch.png variable_pitch.png variable_pitch.ipt
