I couldn't do this exercise

nanks da sensi
nanks da sensi
10 Nov, 2021 03:02 PM

Can someone do and send the file here please?

Screenshot_20211110-115923_Drive.jpg Screenshot_20211110-115923_Drive.jpg

2 Answers

Steven Kiley
Steven Kiley
Answered on 10 Nov, 2021 04:39 PM

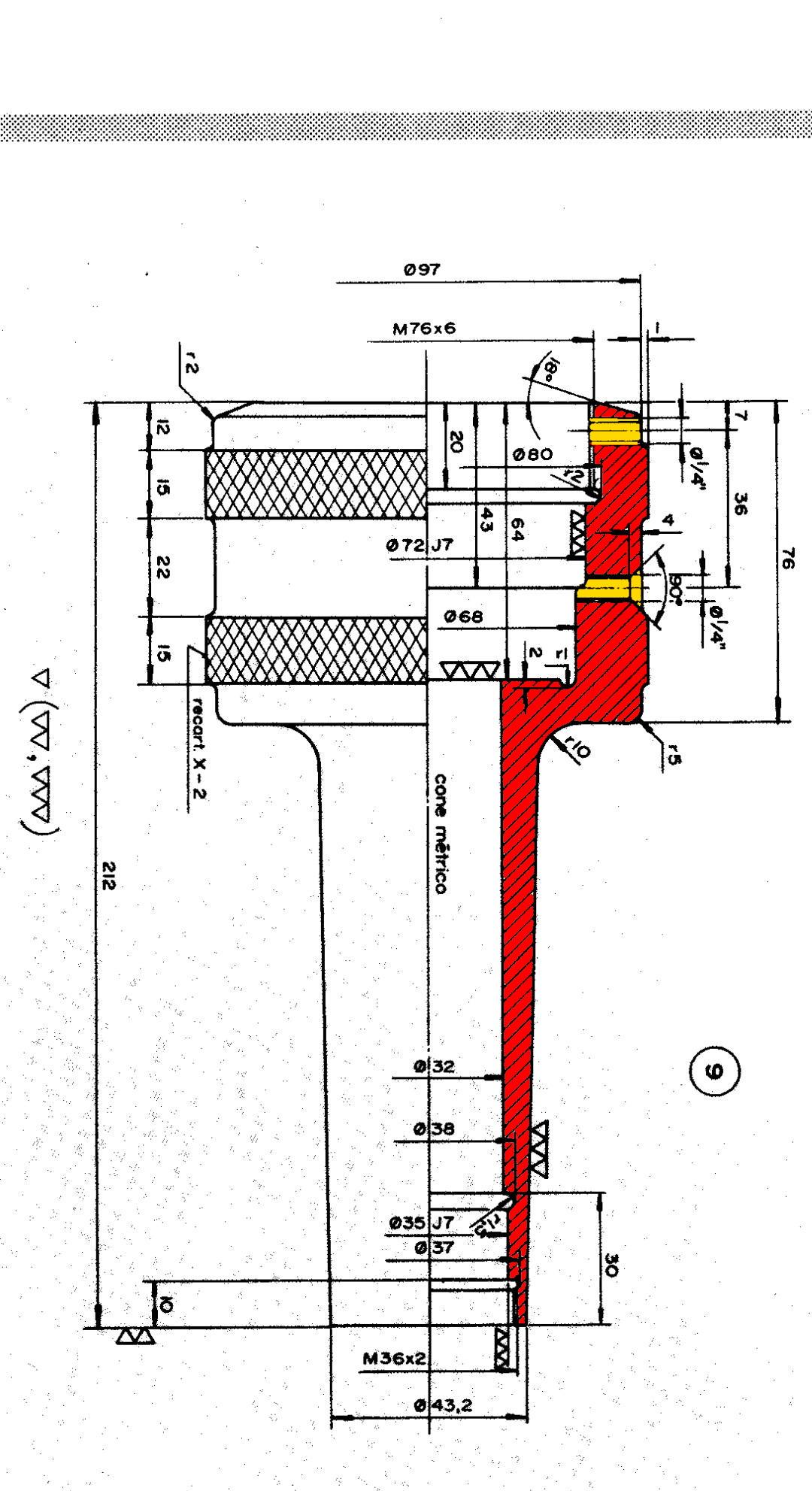

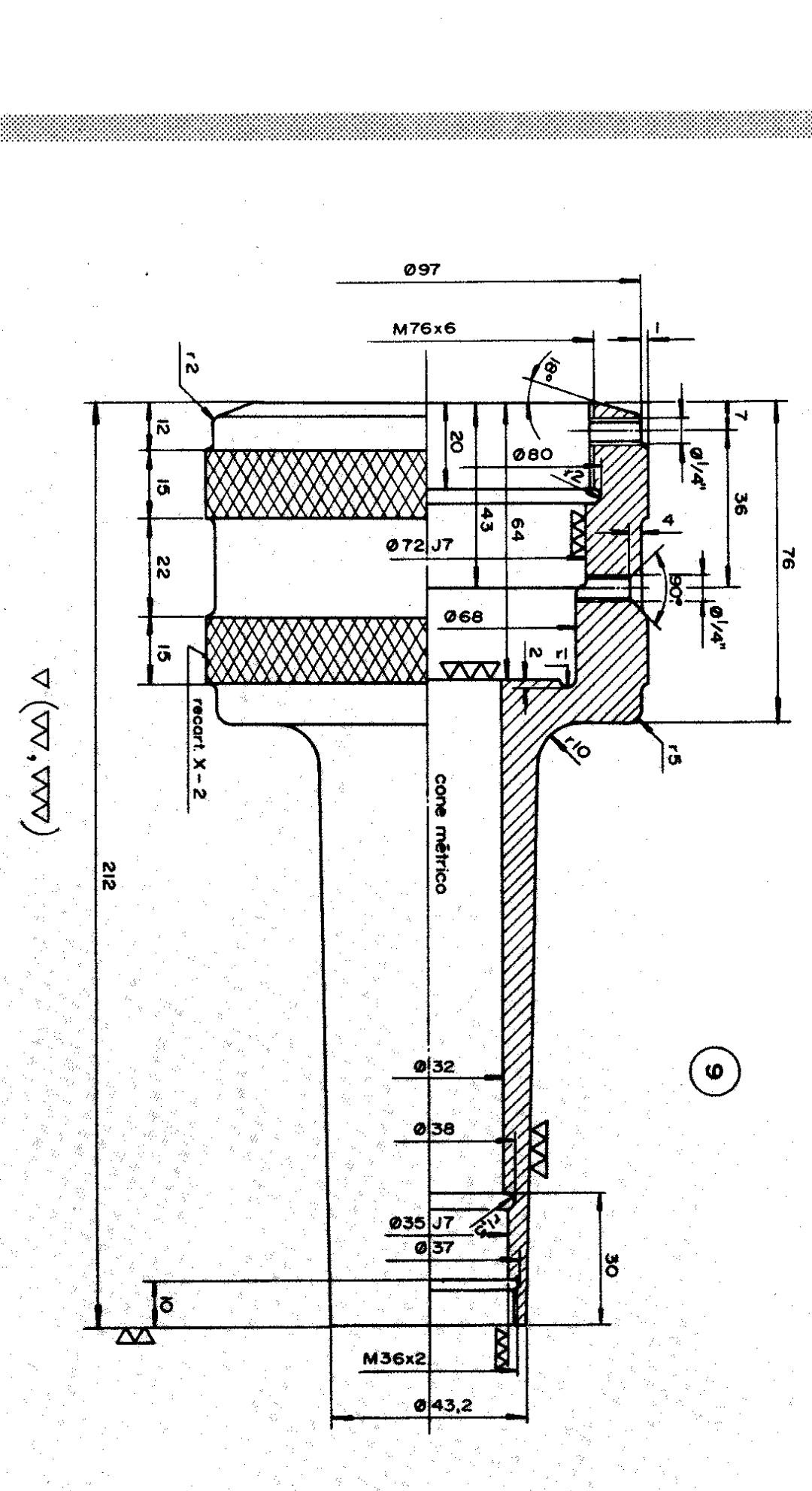

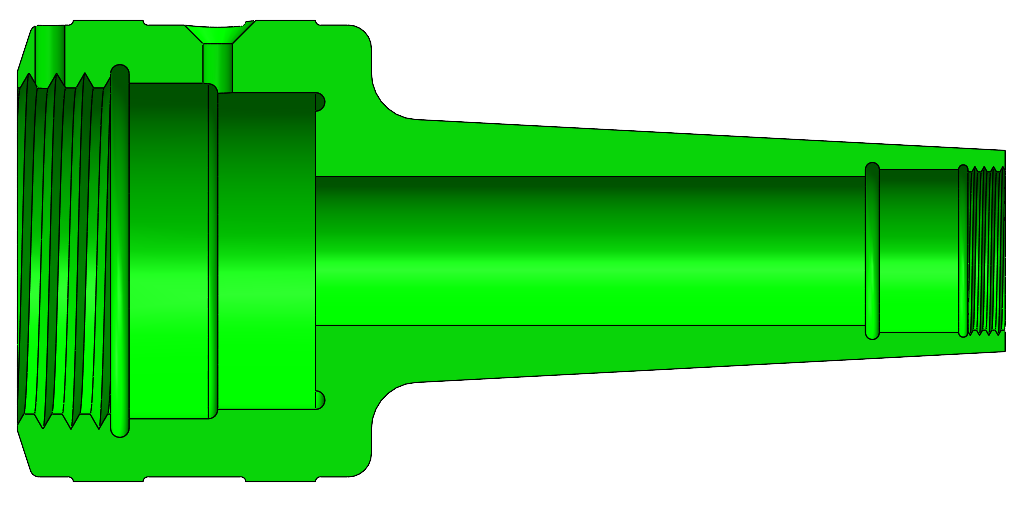

As stated, I'm not going to do the work for you, but the proper way to do this part is to draw the profile of the section view and revolve it around a centerline. See attached.

original (1).jpg original (1).jpg original.jpg original.jpg
FredSWUG
FredSWUG
Answered on 11 Nov, 2021 12:01 AM

I don't see a dimension calling out the taper. Anyone see it?

Tip.png Tip.png
