I need help modeling a reducing elbow from sheet metal fro production

Paula Restrepo
Paula Restrepo
26 Aug, 2020 09:49 PM

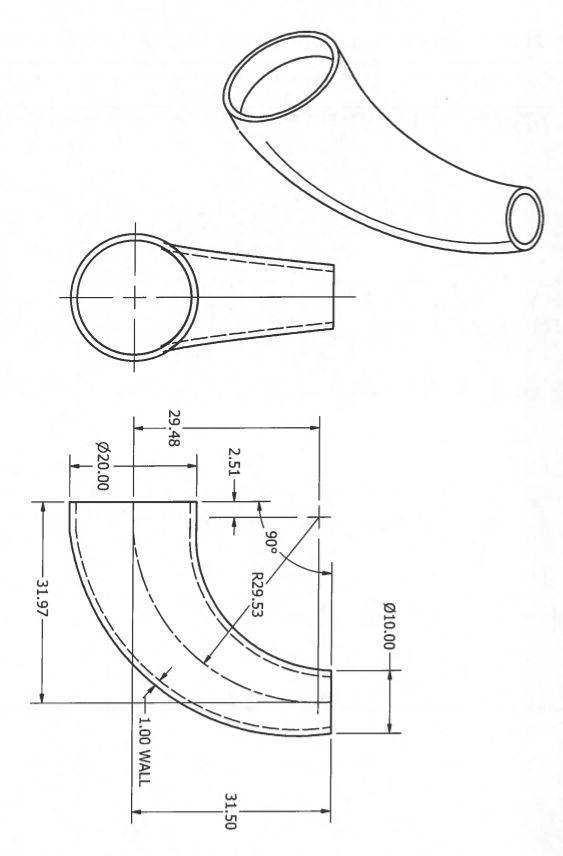

I can't get it to follow the radius and need it from sheet metal to get the flat pattern for production.

redelbow.JPG redelbow.JPG

Accepted answer

J. Riend
J. Riend
Answered on 27 Aug, 2020 10:47 PM

One way is to model Half of cone with Loft, then Flatten feature. (SW2019)
Good luck.

bent cone.PNG bent cone.PNG bent cone.STEP bent cone.SLDPRT
