Is it possible to reduce the distance between an arc and its centre point. In creo 4.0

harish kumar
harish kumar
6 May, 2020 09:41 PM

Hi There

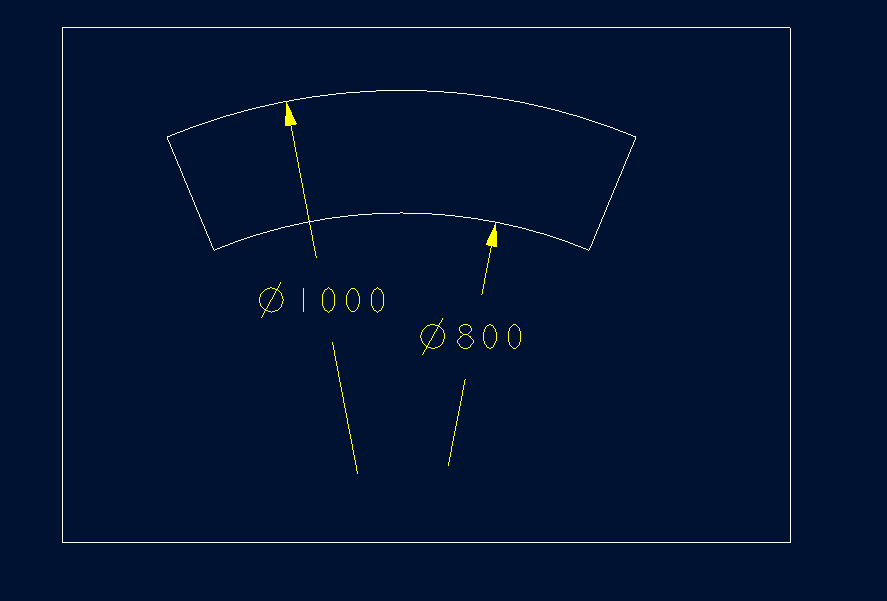

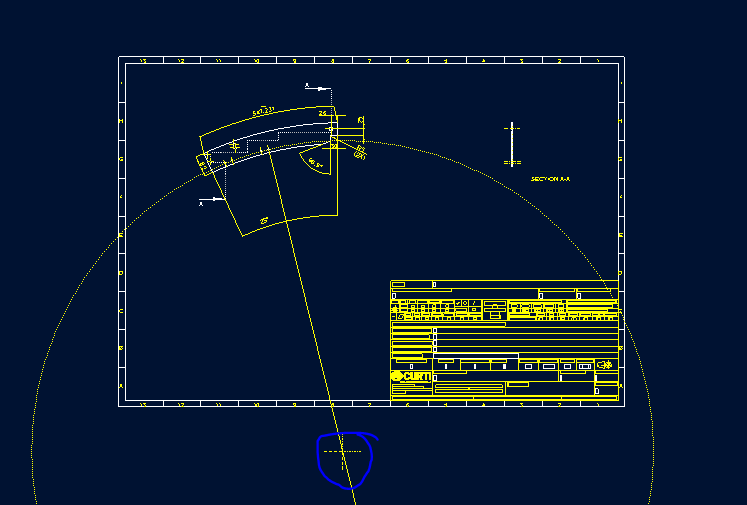

So, here i am explaining the exact situation. Actually i am using creo 4.0. Working on drawing and the part has a arc which size is radius 1200mm and part size is quite small. So what i want to customise the location of centre in order to use a proper sheet size. Like we are using jog, Breck and reduce the length during dimension.

image_2020_05_06T07_30_57_920Z-1.png image_2020_05_06T07_30_57_920Z-1.png

1 Answer

Bogdan M
Bogdan M
Answered on 8 May, 2020 02:52 PM

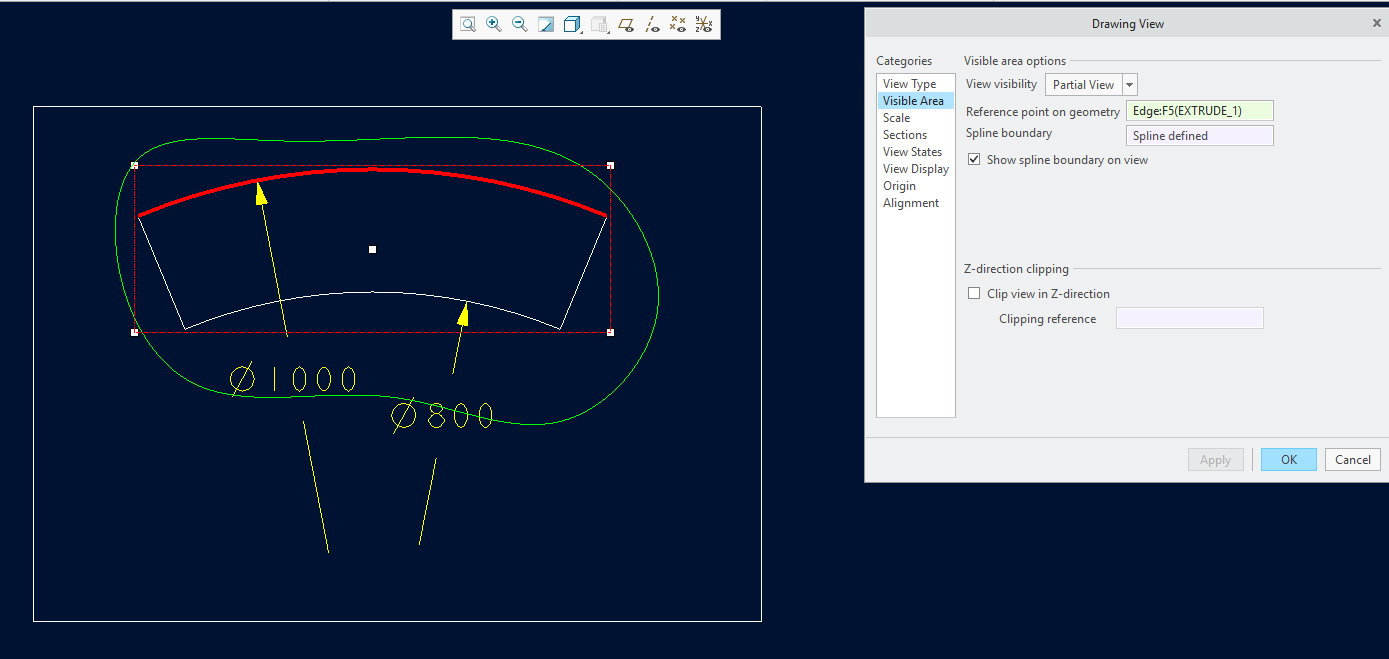

Hi. You can't move/relocate the center axis of you arc but you can "cut" the dimensions using a partial view.
In this case you can drag and make the dimensions how long you want/need.

Please let me know if you have any questions!

Take care!
Bogdan

22.png 22.png 11.png 11.png
