is there anyone can draw this nut for me at the autocad

Enes Yılmaz
Enes Yılmaz
5 Jun, 2020 02:43 PM

it has to be 2d

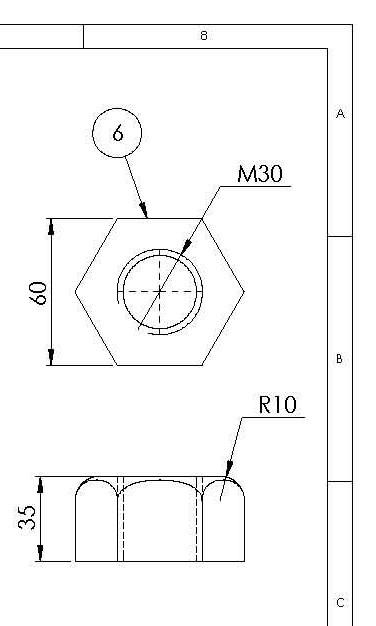

grab.jpg grab.jpg

Accepted answer

Sergo Jgamadze
Sergo Jgamadze
Answered on 5 Jun, 2020 03:54 PM

Easy. Success!

Nut_M30.dxf

1 Other answer

JMA
JMA
Answered on 12 Oct, 2020 02:21 AM

Hi,
If you want a 2D model like Mr Sergio JGAMADZE and a 3D model in addition, here is a compilation. Your 3D model is on the layer called 3D. All in the Object space, so without presentation. (Thank’s Mr JGAMADZE !)
Best regards.
JMA

Nut01_A3.dxf Nut01_A3.dwg
