please, guide me through this !

Abhimanyu
Abhimanyu
5 Jun, 2017 09:21 AM

i have been learning catia recently and i am facing problem to draw this. Especially the left side part where there are too many curves.

WIN_20170605_14_45_11_Pro (2).jpg WIN_20170605_14_45_11_Pro (2).jpg

2 Answers

Jasper Aaron
Jasper Aaron
Answered on 5 Jun, 2017 02:04 PM

can make it only using circles

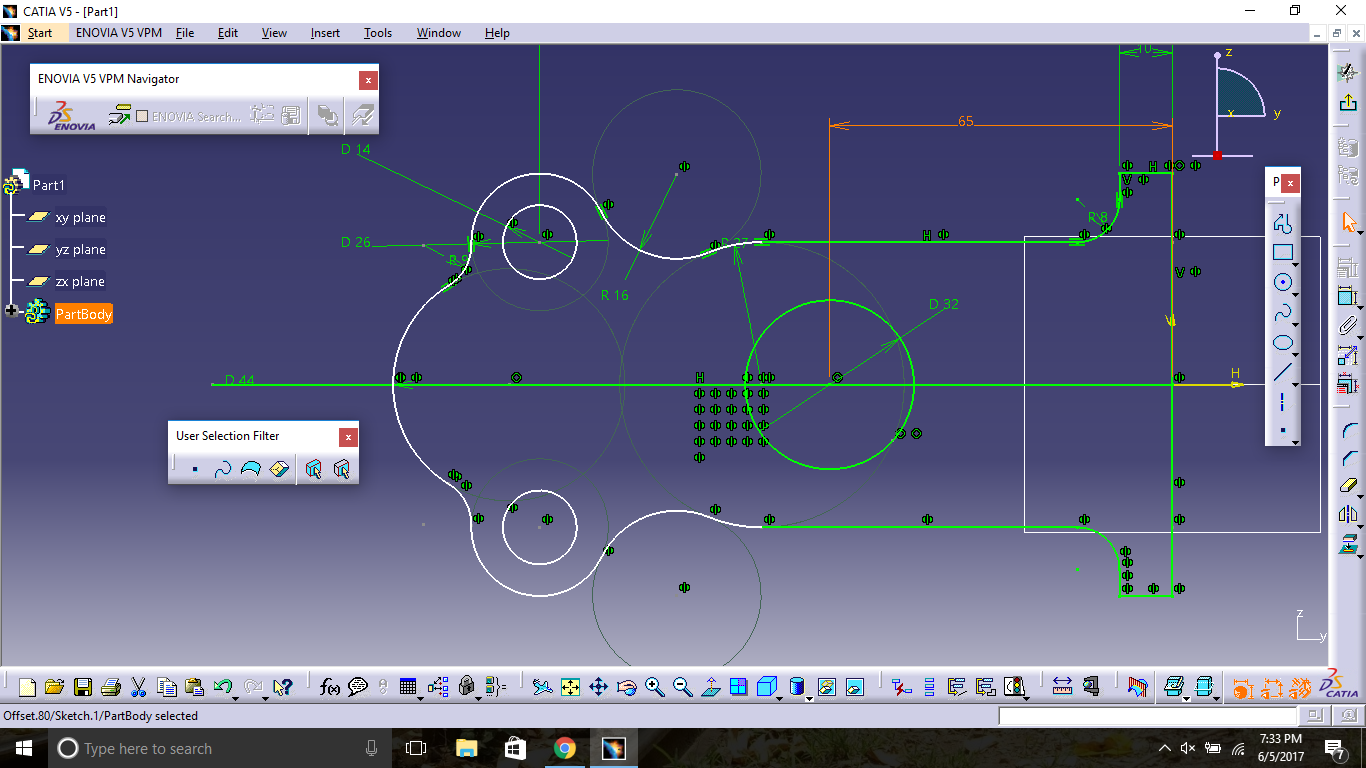

Screenshot (40).png Screenshot (40).png
Amit Patel
Amit Patel
Answered on 5 Jun, 2017 12:46 PM

Hi,

Rather than worry about the curves, why not create circles using the rads of each bend. Then where all the circles all intersect, create "corners", this is easiest method.

Can learn more at www.intrinsys.com/blog
