what is the name

Dmitrii
Dmitrii
6 Mar, 2013 10:39 AM

My English is bad, especially in the technical terminology. Seeking a model of such a mechanism here, literally a turntable. Can someone tell tags for search? Thank you

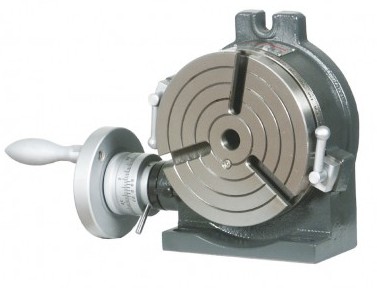

plateau-diviseur-optimum-rt-100.jpg plateau-diviseur-optimum-rt-100.jpg

5 Answers

Eckhard Hofmann
Eckhard Hofmann
Answered on 7 Mar, 2013 01:01 PM

This is a Round Table for dividing!

rotary_upright.jpg rotary_upright.jpg lms-28.jpeg.jpg lms-28.jpeg.jpg
Eckhard Hofmann
Eckhard Hofmann
Answered on 8 Mar, 2013 03:08 AM

I hope i can help you and the Community with this quick Projekt !

Eckhard Hofmann
Eckhard Hofmann
Answered on 7 Mar, 2013 01:15 PM

You can workholding the parts with clamps in the T-Slots and in the middle of the Table is a conical Hole for Tool Shafts of a jaw Chuck! You can find a lot of different Round Tables. The fifth axis of an CNC-Machine is a Round Table Dividing Head!

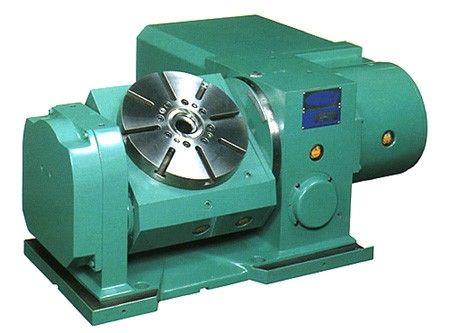

phaseII-rotaries.jpg phaseII-rotaries.jpg 05-ltnc-l.jpg 05-ltnc-l.jpg
Dmitrii
Dmitrii
Answered on 7 Mar, 2013 01:38 PM

thanks, I understand how does it works and the parts of which it consist. I even have it, but i need it in another mechanism as a part. I hoped find here turnkey solution, but there is no....

Eckhard Hofmann
Eckhard Hofmann
Answered on 8 Mar, 2013 03:13 AM

Please take a look at my Projekt-Side ! You can find more Renderings and the STEP-Files for download! Enjoy it !
