Catene di tolleranze

Domenico Fratangelo
11 Sep, 2024 09:26 AM

Scopo del tutorial è lo studio delle catene di tolleranze mediante l'ausilio di MBD Dimensions di SolidWorks.

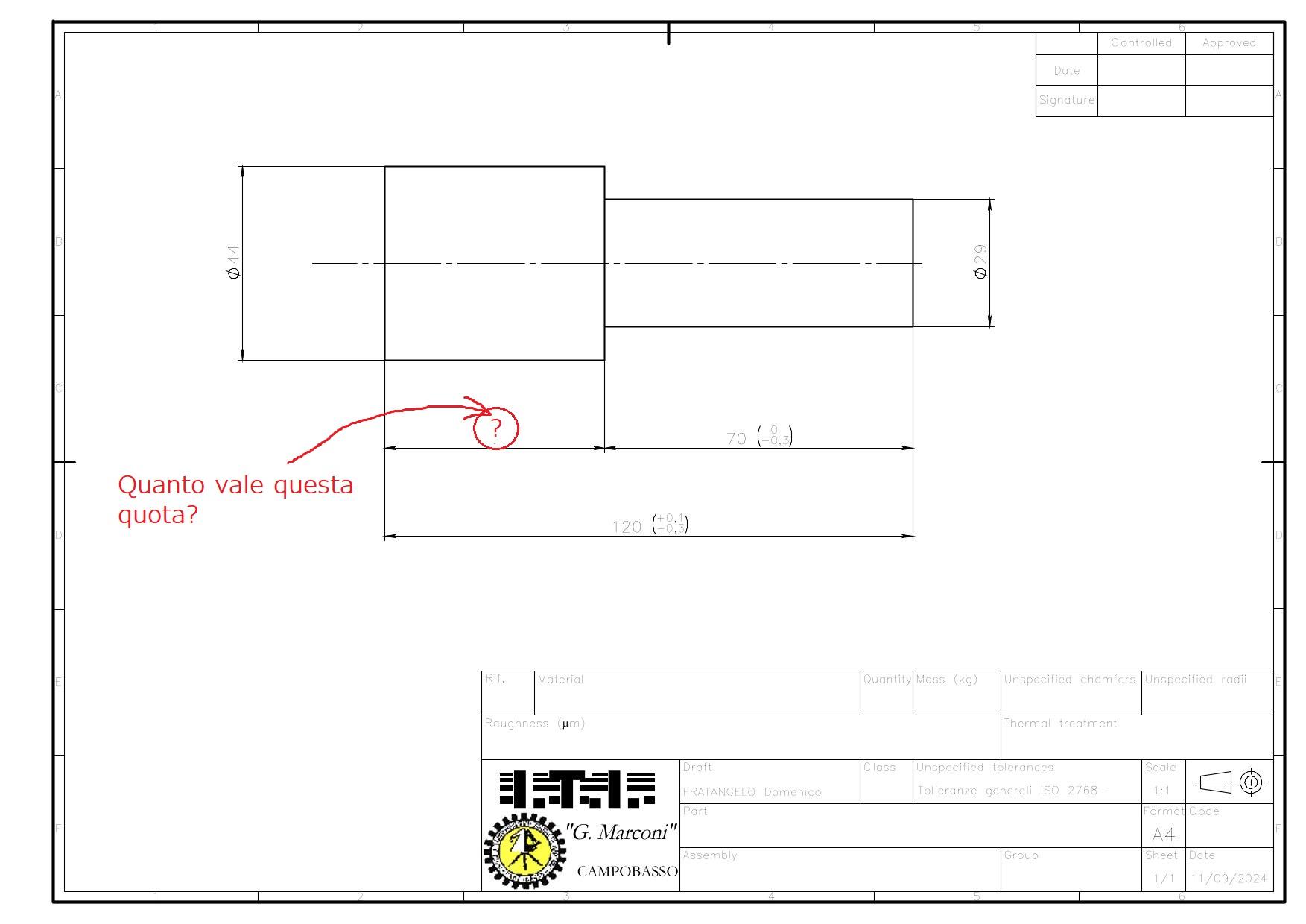

  1. Step 1: Dati di progetto

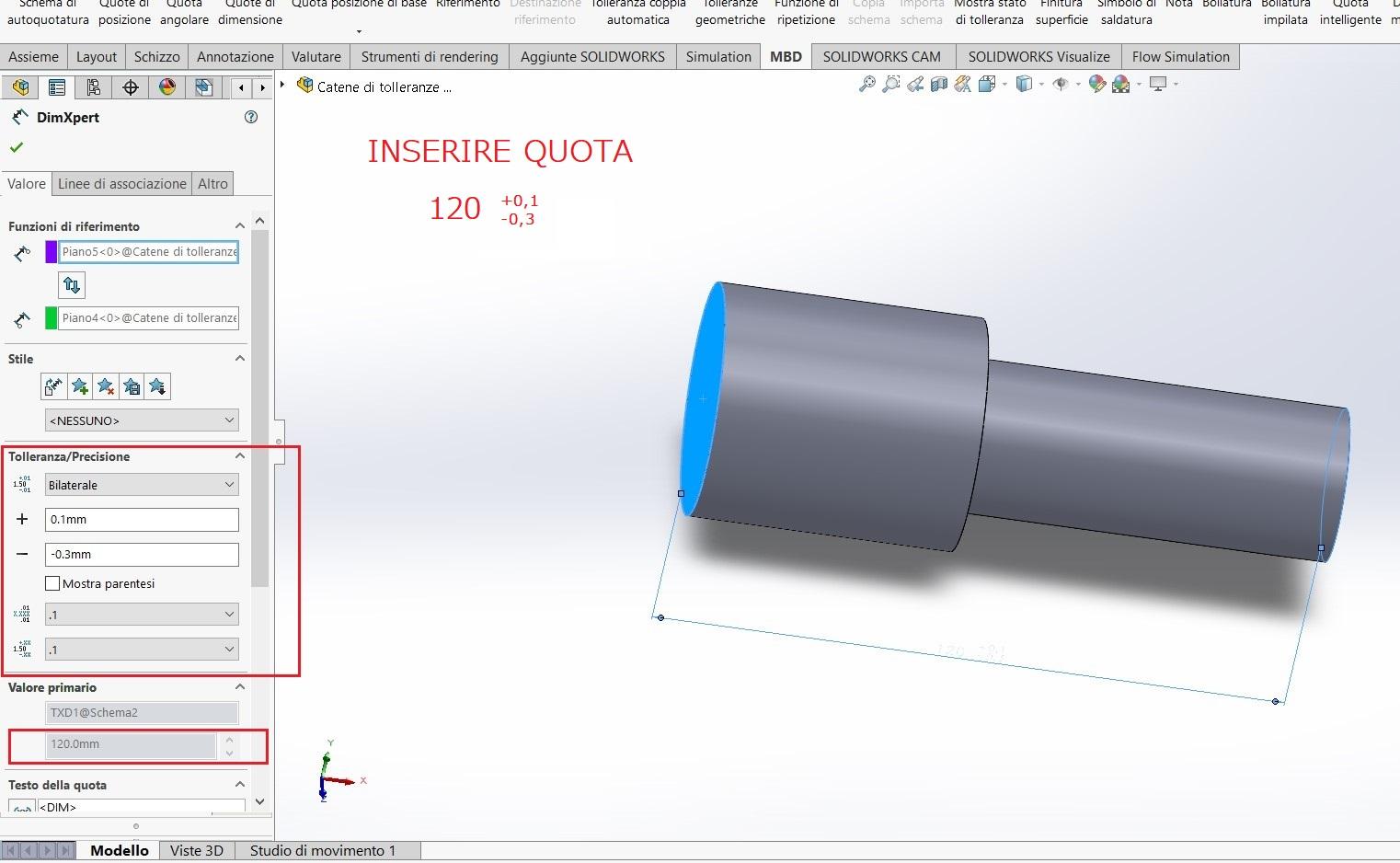

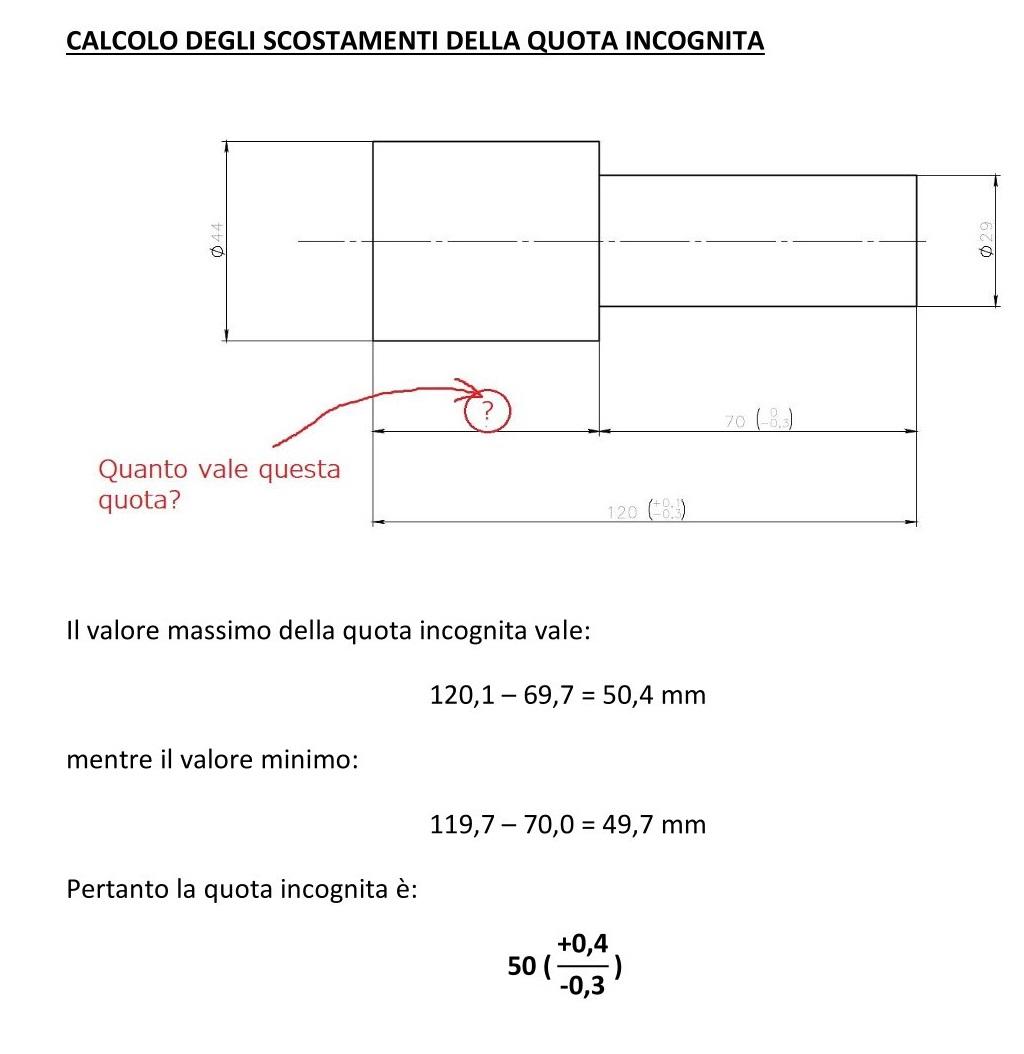

  2. Step 2: Calcolo degli scostamenti della quota incognita

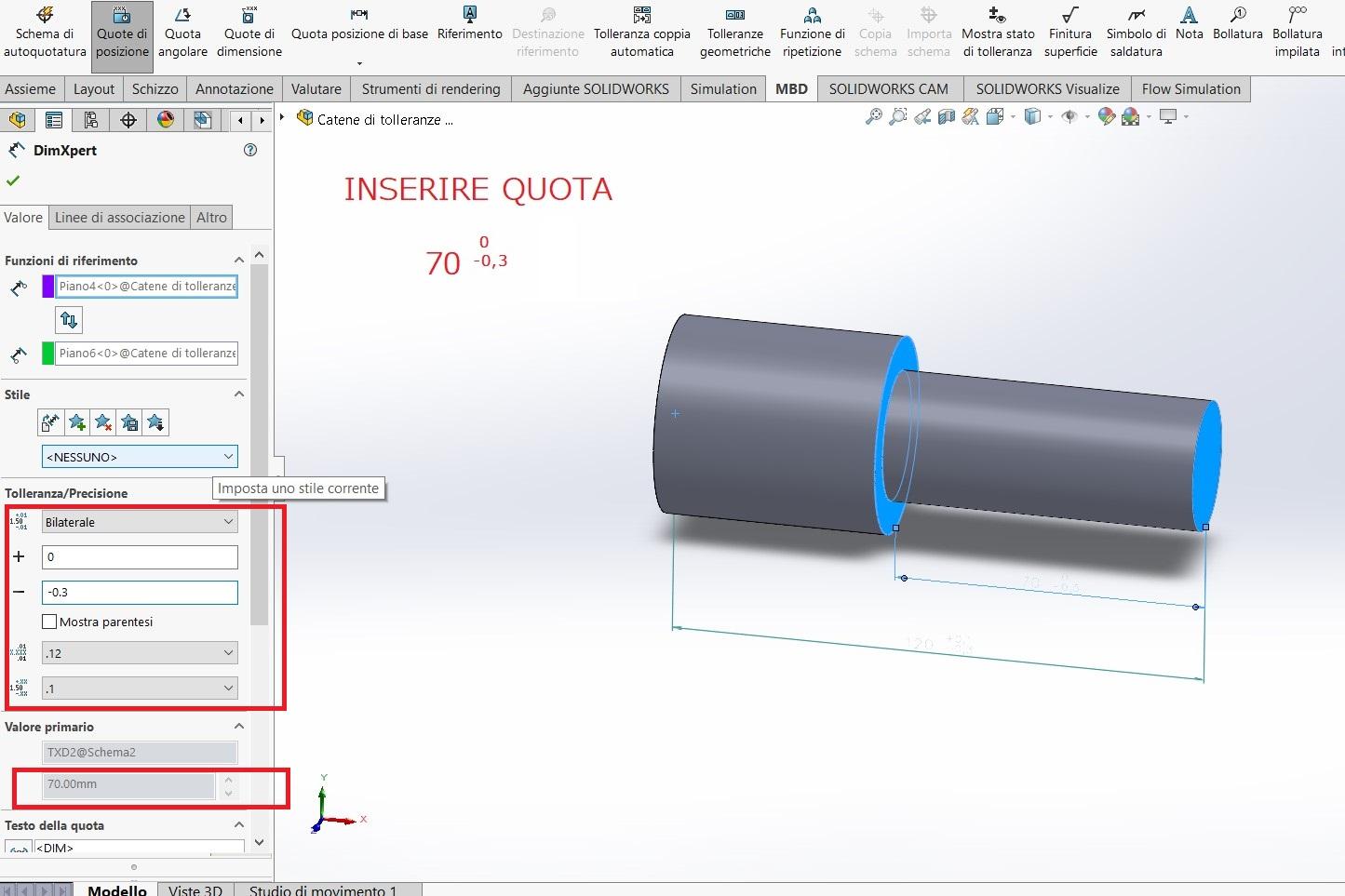

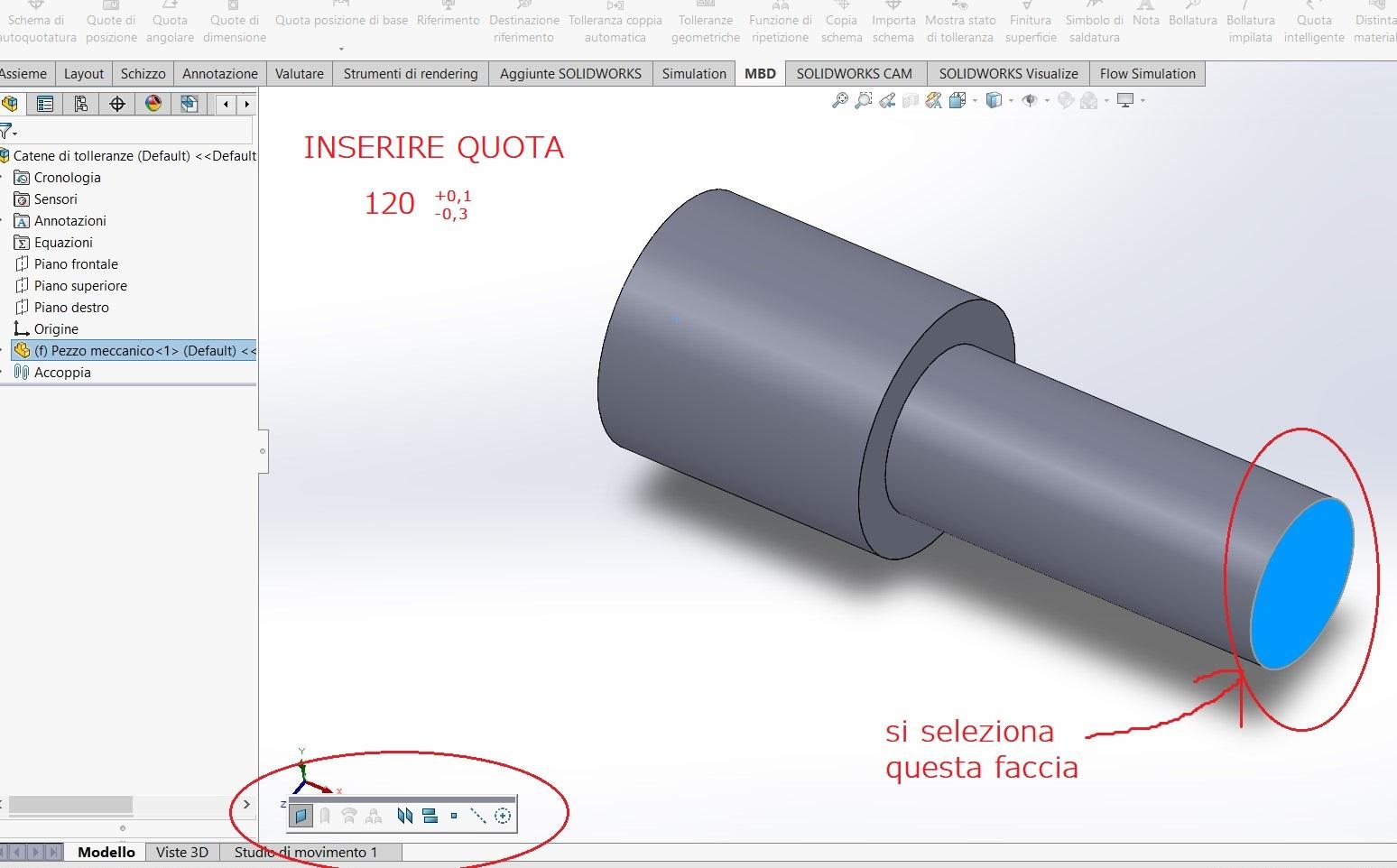

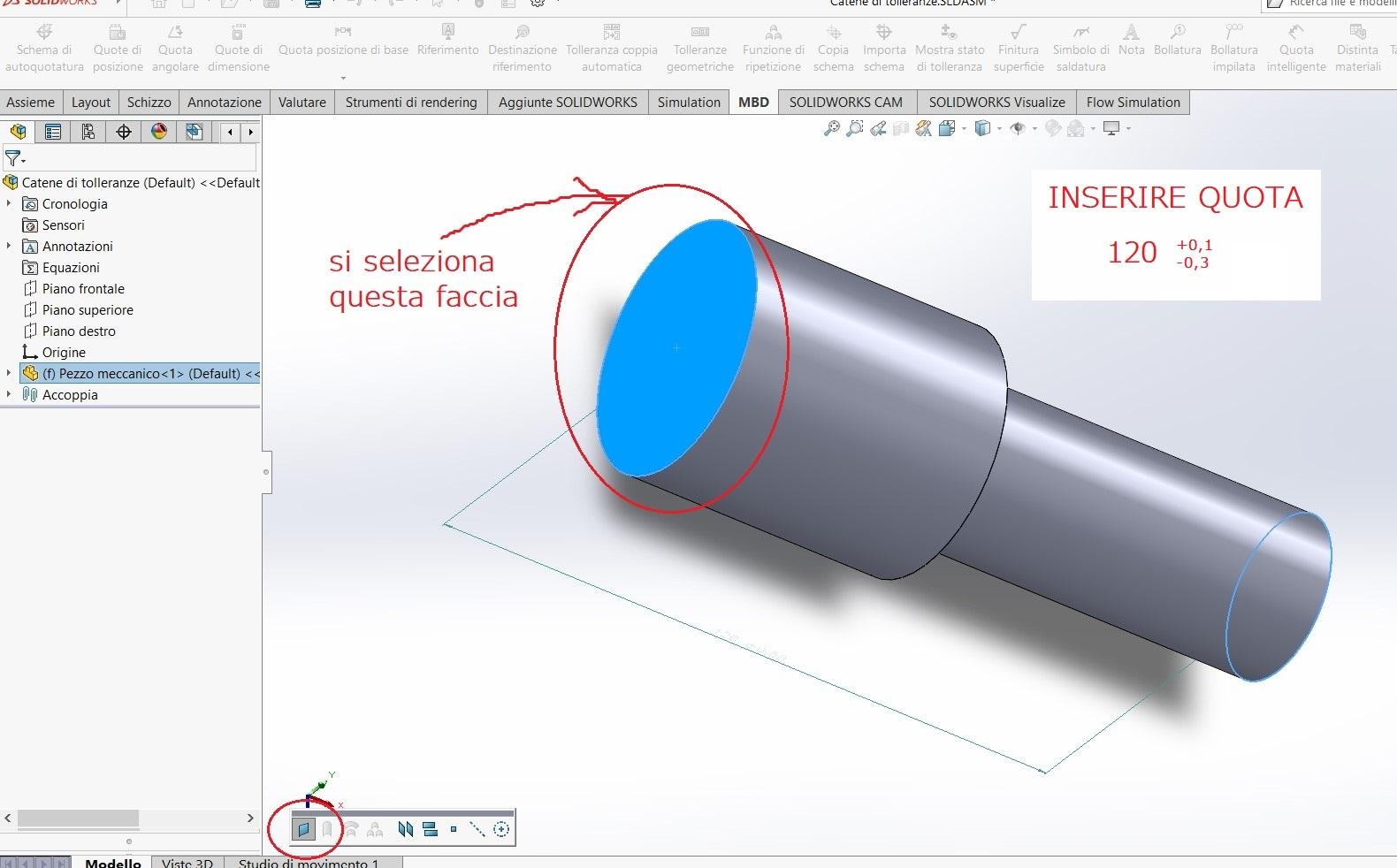

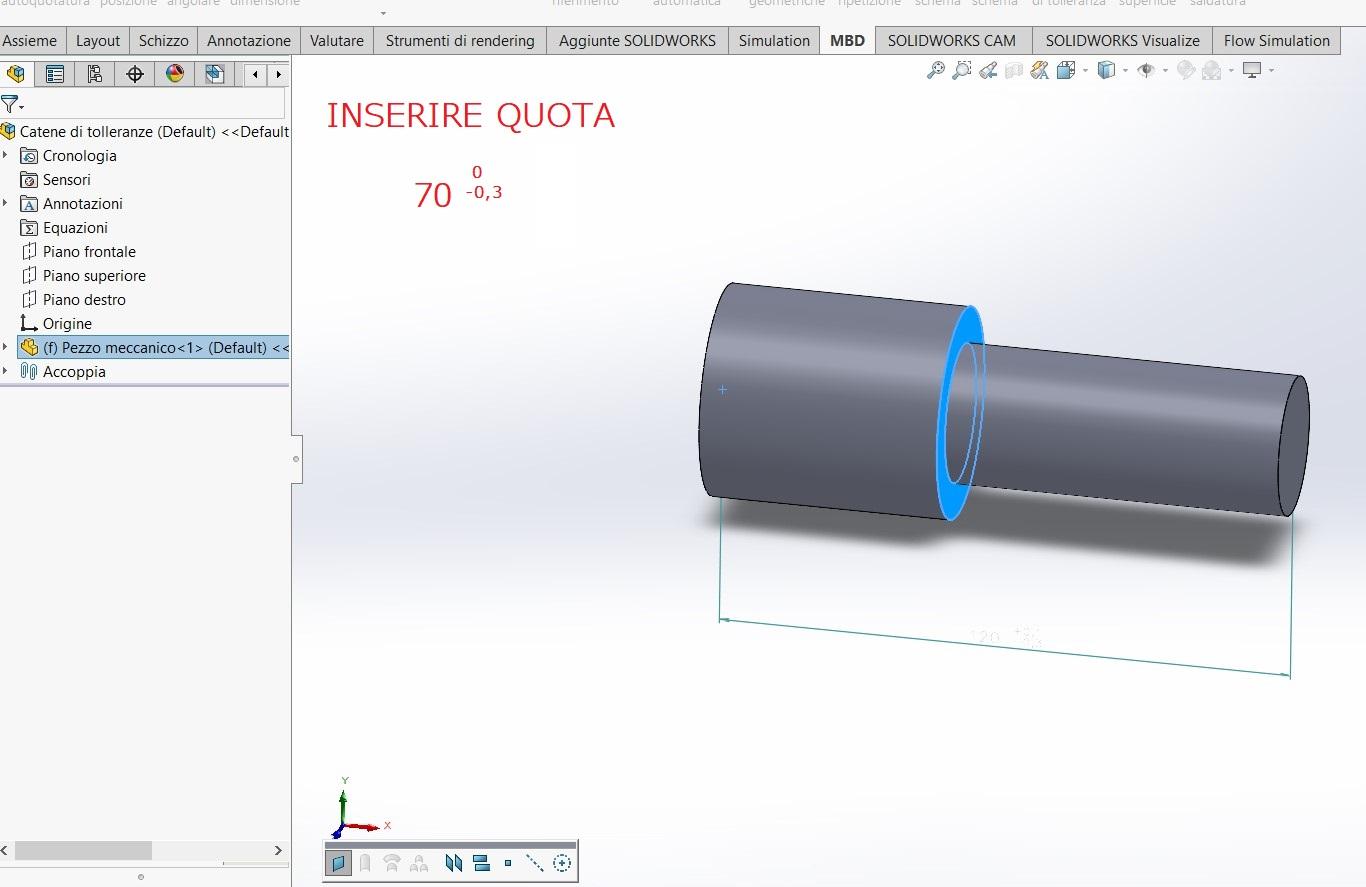

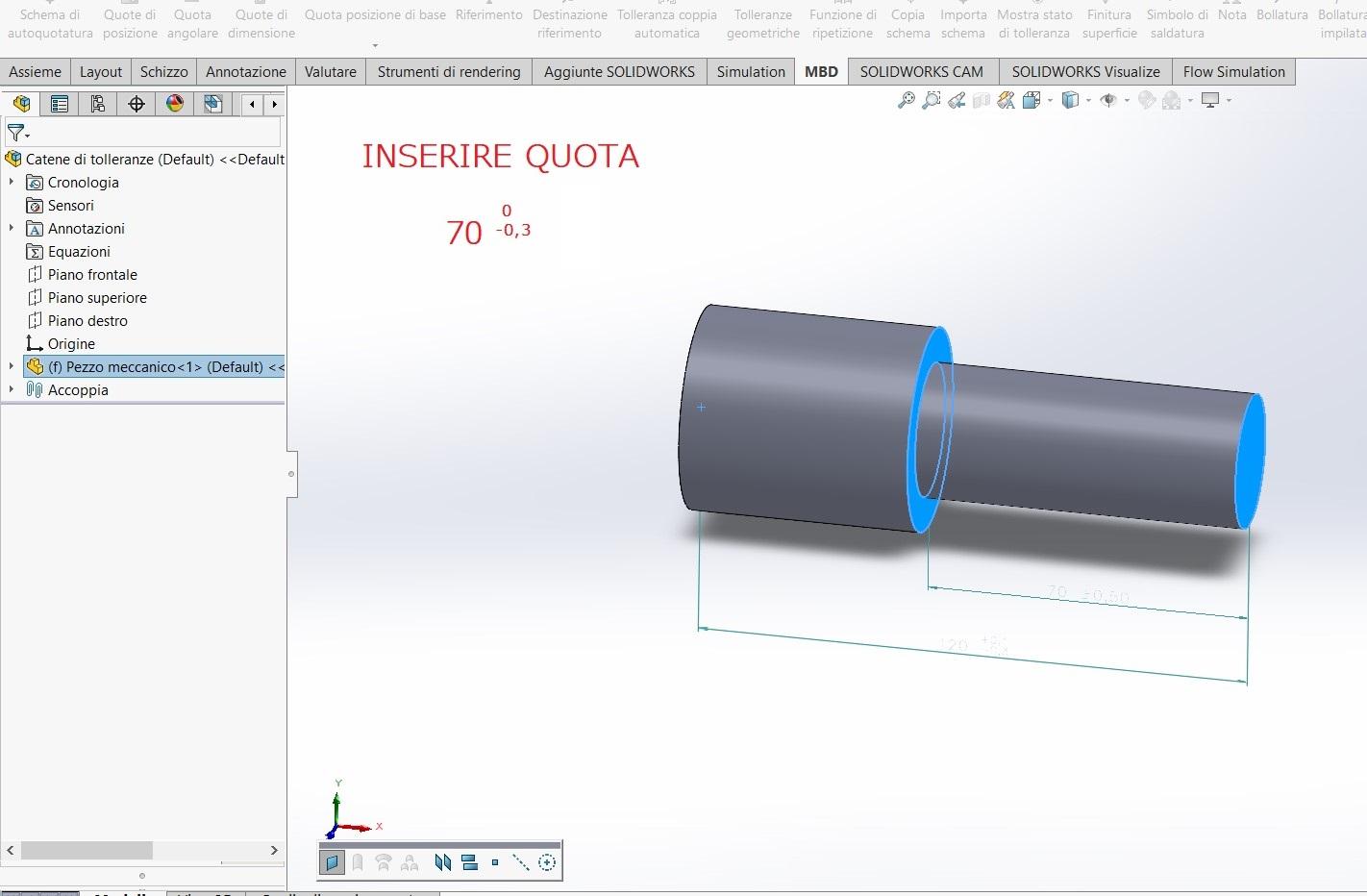

  3. Step 3: MBD Dimensions

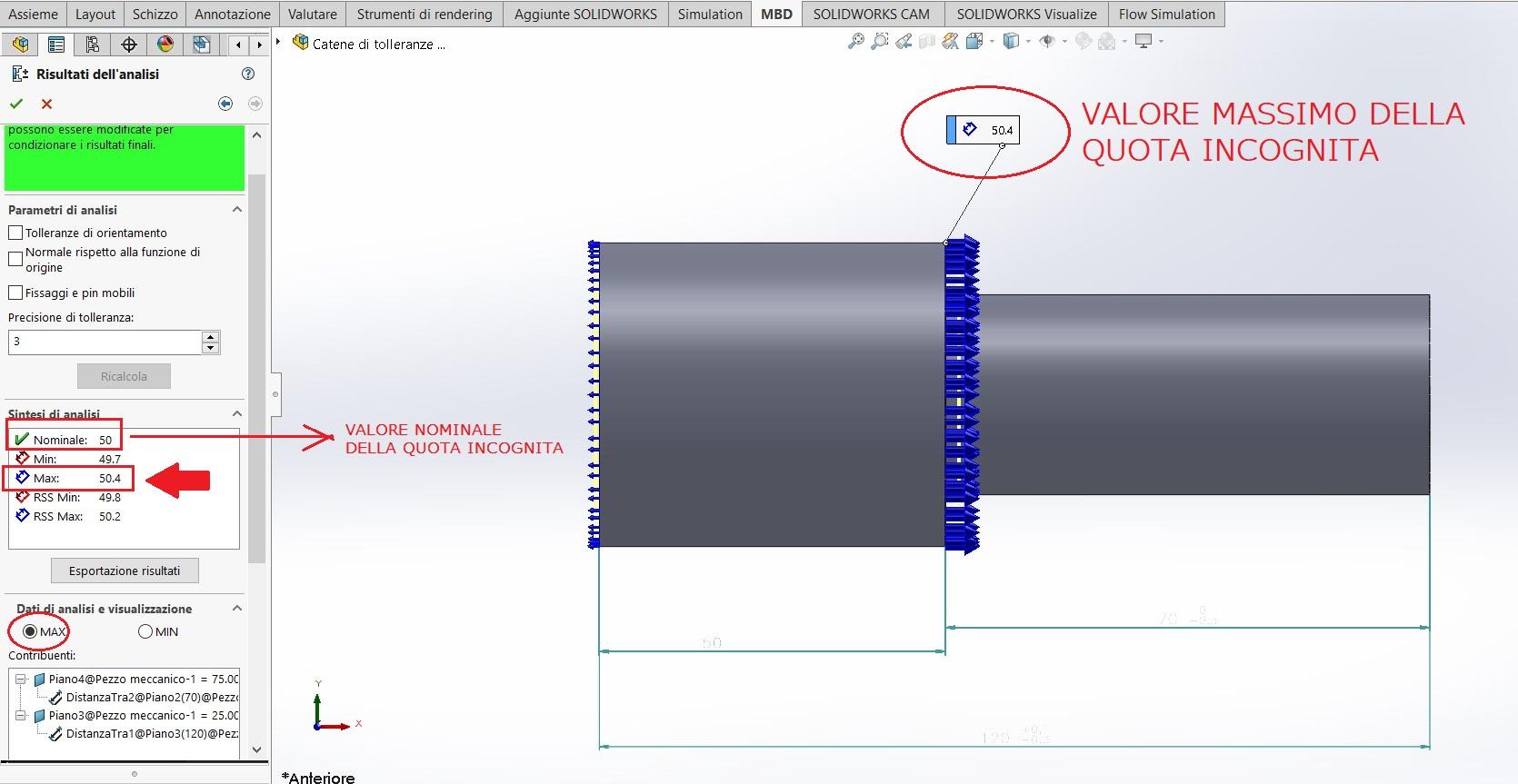

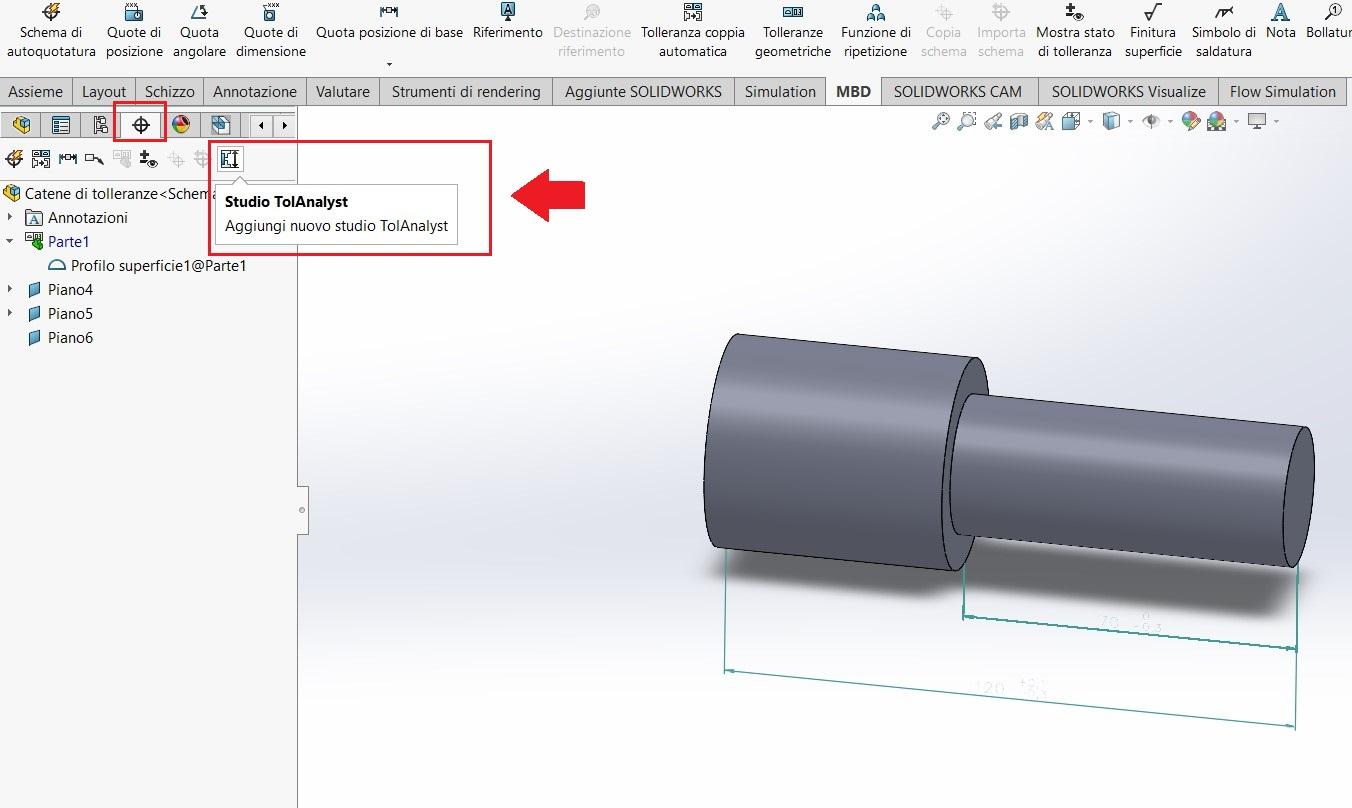

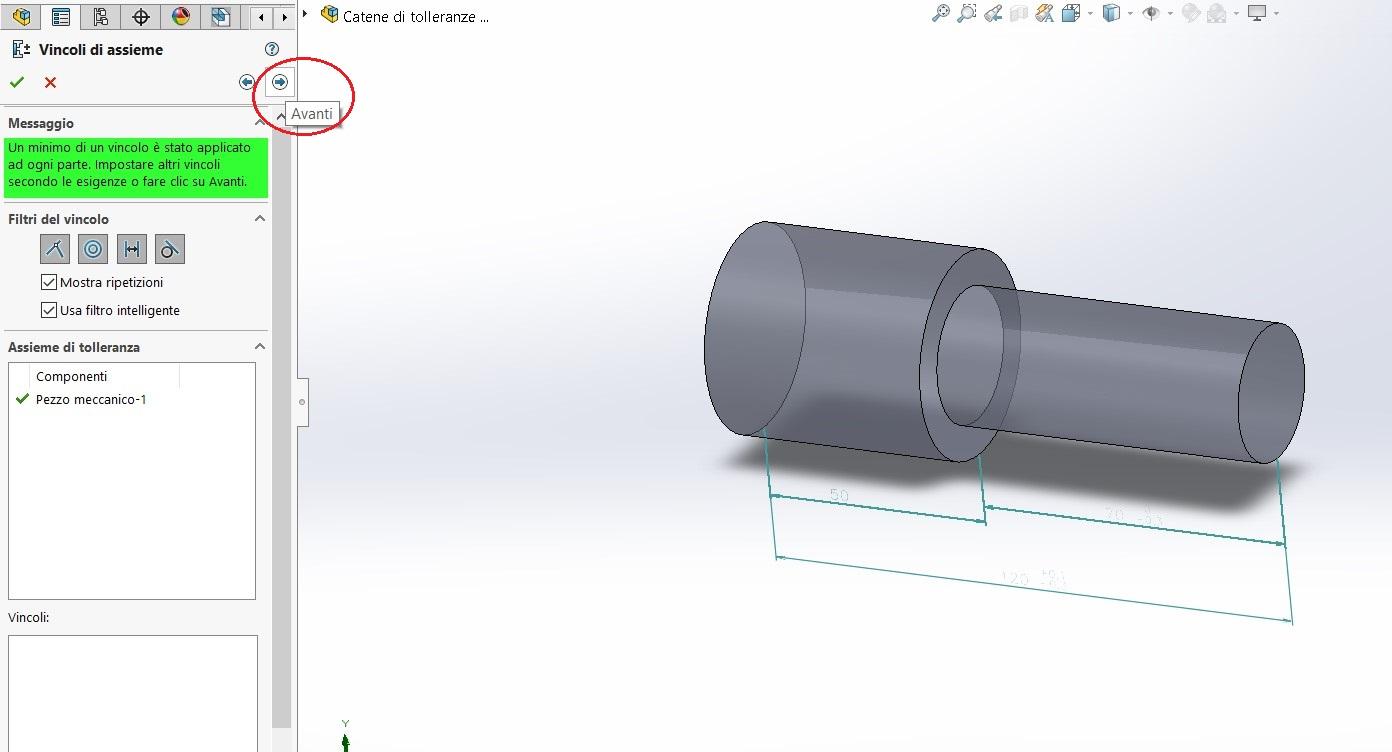

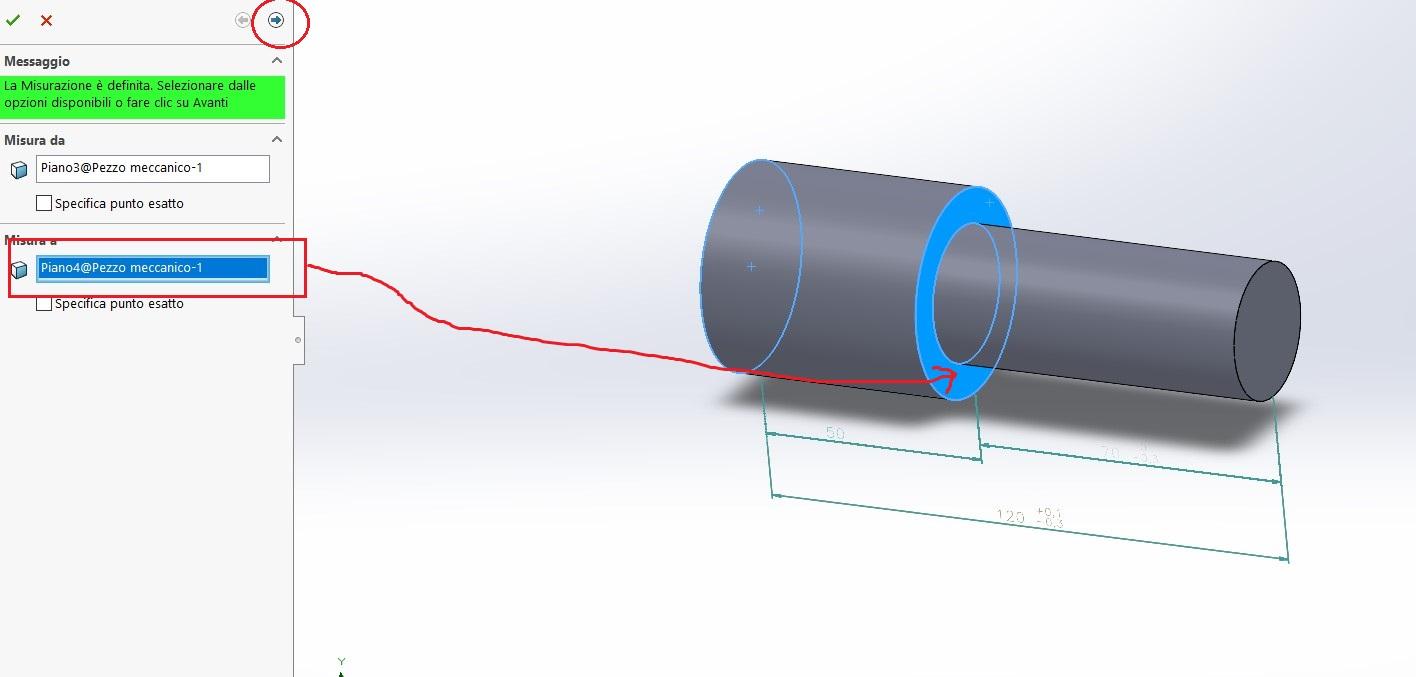

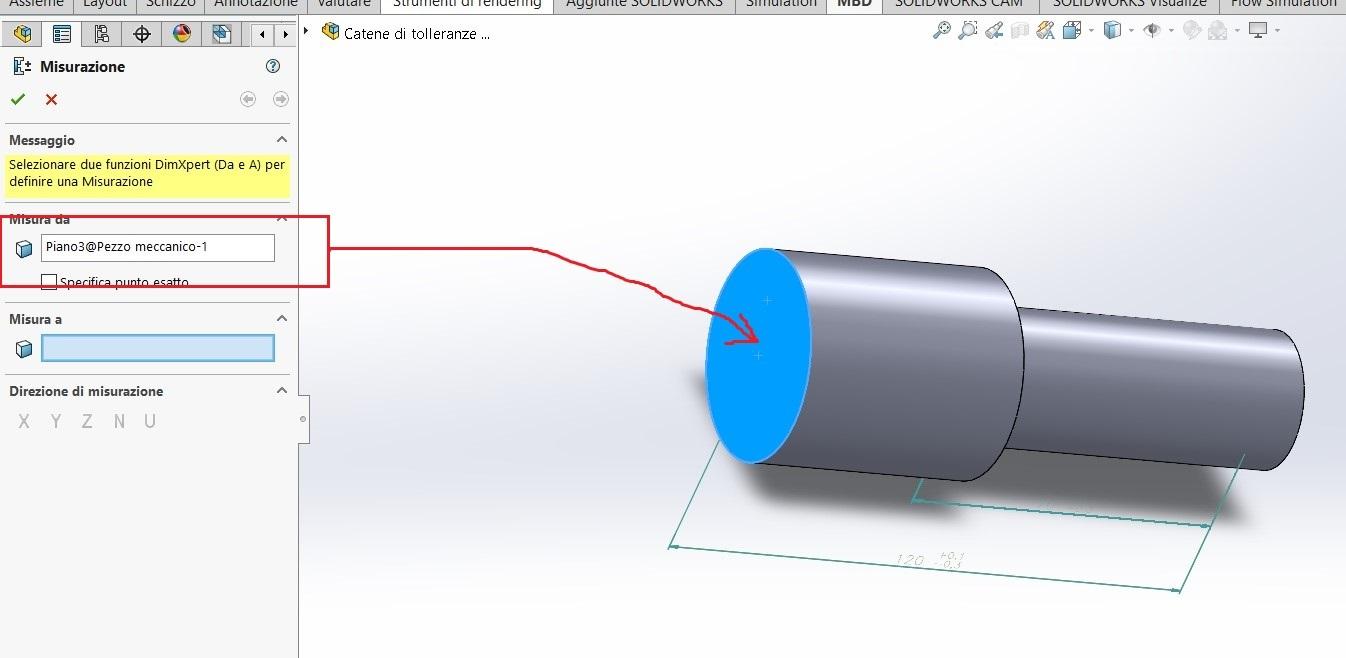

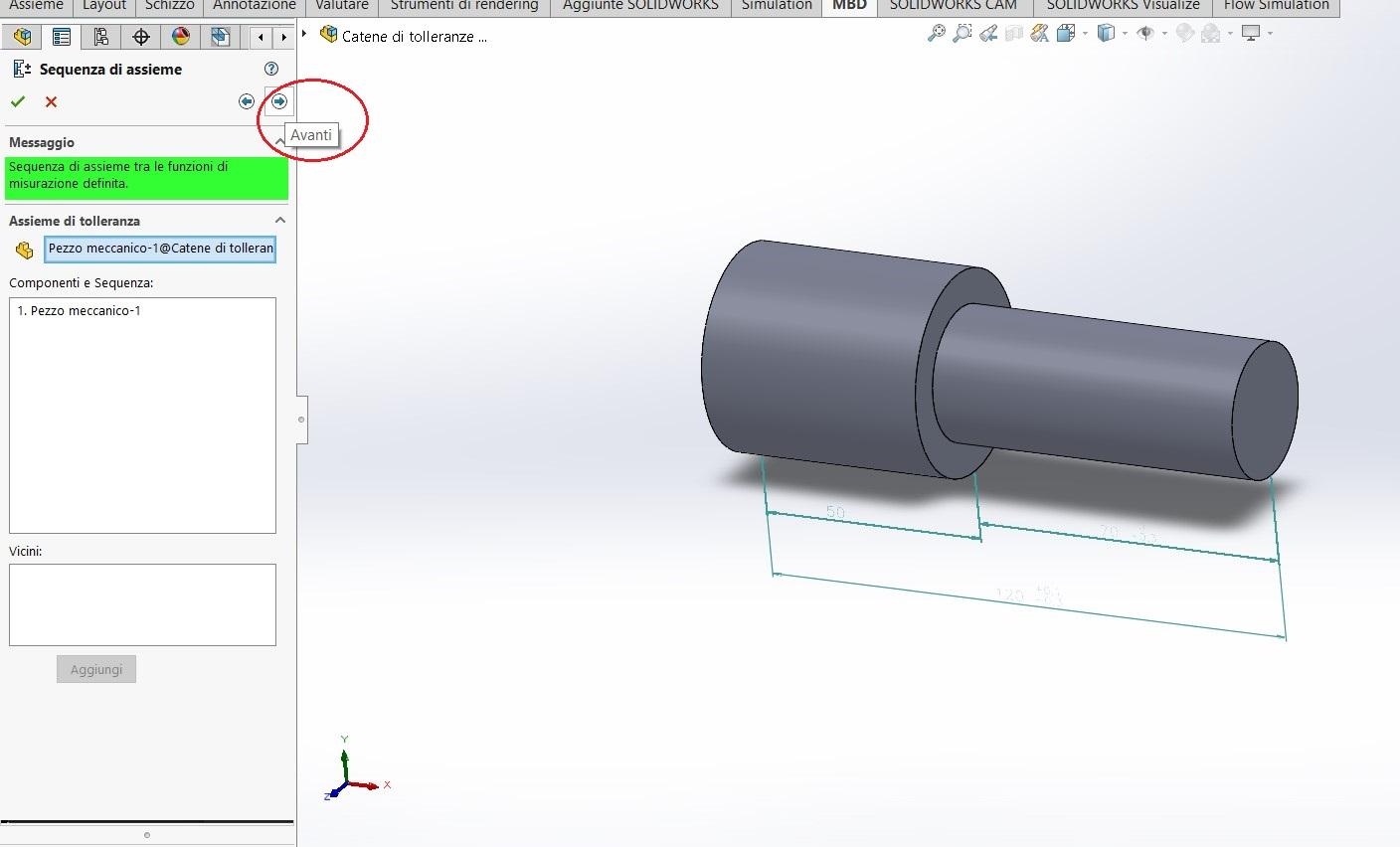

  4. Step 4: Studio TolAnalist







  5. Step 5: Risultati
