Tutorial: How to make engine part 41

Aykut Dana

26 Sep, 2012 10:24 PM

Intake and Exhaust Valve Nails

1. Step 1:

   open a sketch on the front plane




2. Step 2:

   draw a centerline and line




3. Step 3:

   continue the sketch




4. Step 4:

   finish your sketch like shown




5. Step 5:

   use revolve command




6. Step 6:

   open a sketch bottom of the body




7. Step 7:

   draw a center rectangle




8. Step 8:

   use cut-extrude command




9. Step 9:

   open linear pattern command




10. Step 10:

    select the shown edge for direction




11. Step 11:

    enter shown values




12. Step 12:

    save the "intake valve nails"




13. Step 13:

    click on the linear pattern. dimension appears




14. Step 14:

    change the 40mm dimension. make it 30mm




15. Step 15:

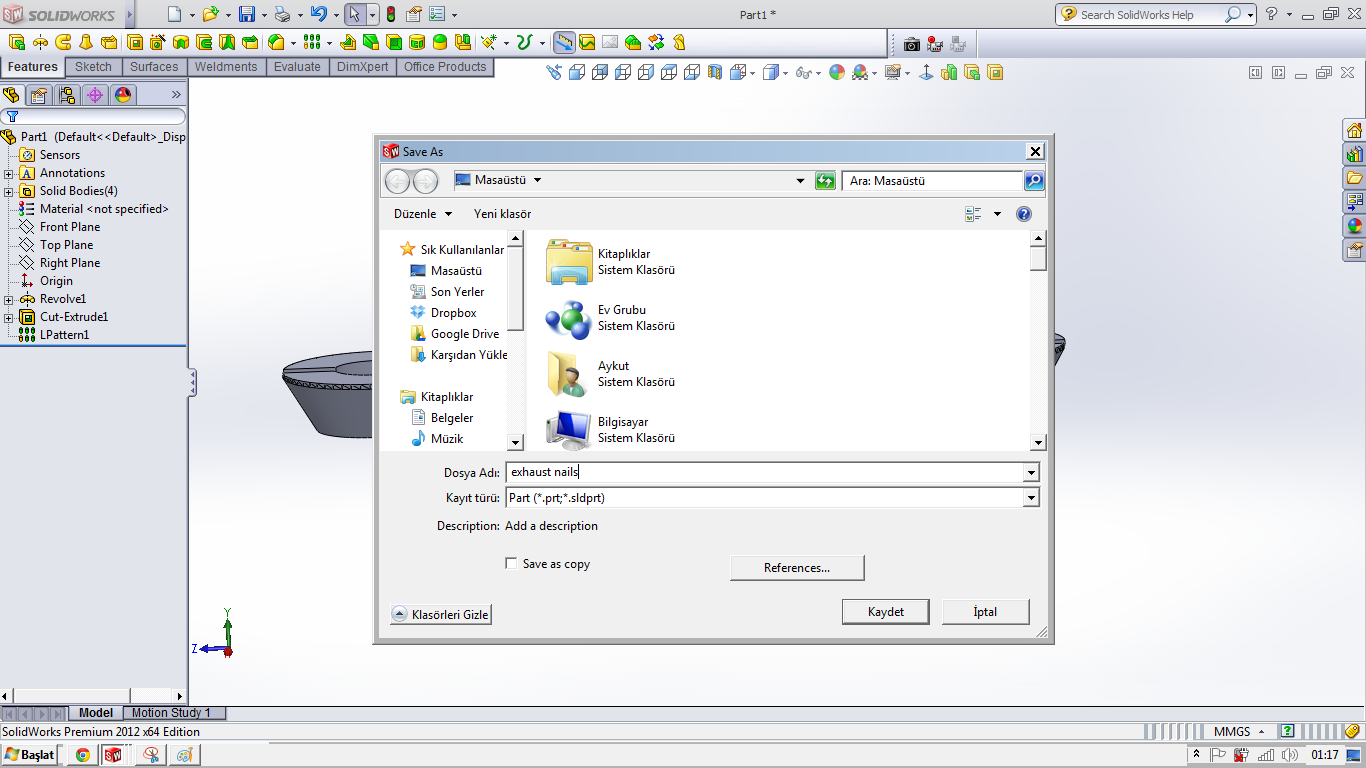

    use save as option and save the "exhaust valve nails"
