Tutorial: Using deform feature in Solidworks.(Tutorial-2)

Abhijeet

6 Feb, 2012 06:08 PM

Tutorial: Using deform feature in Solidworks.

1. Step 1:

   Create a model and invoke sketch on a plane similar to the figure shown.




2. Step 2:

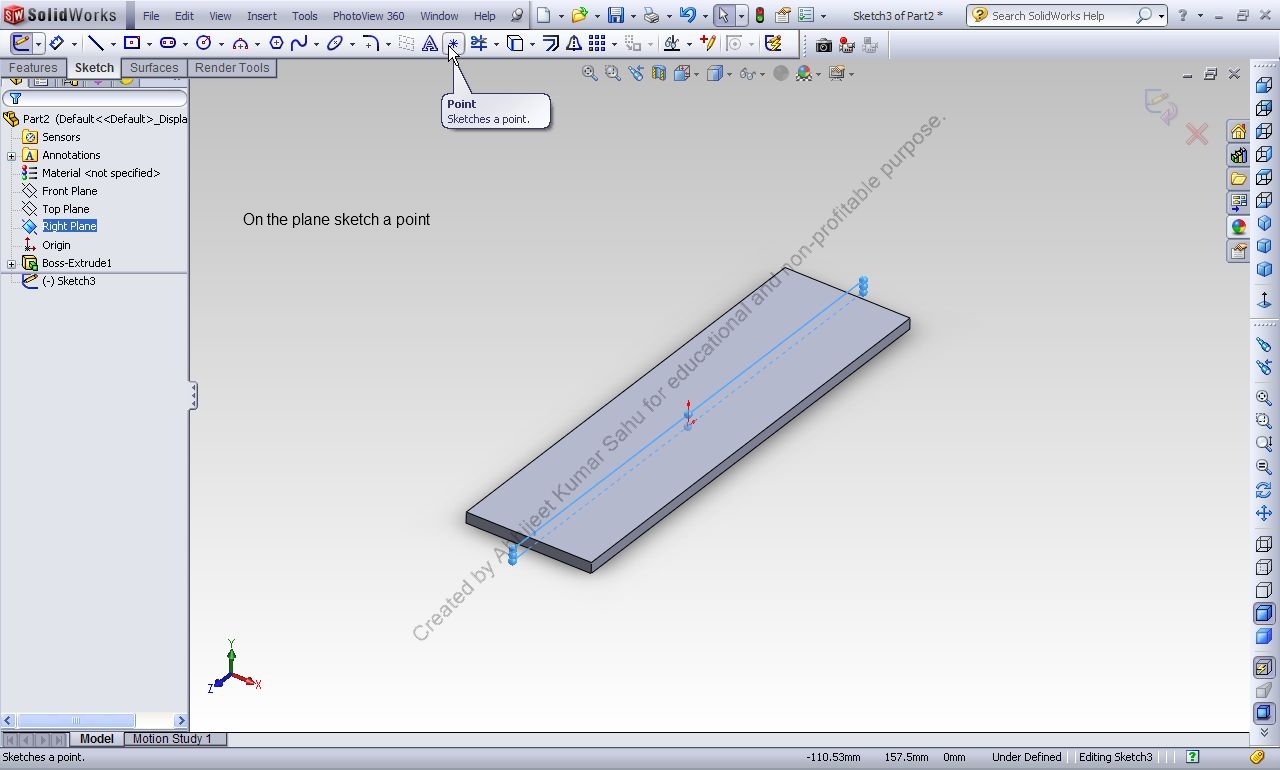

   On the plane sketch a point. You can sketch a no. of points according to your requirement.




3. Step 3:

   Provide dimensions to the point.




4. Step 4:

   Insert-> Features-> Deform




5. Step 5:

   Choose the appropriate options and fill the spaces to get a deformed shape.
