Tutorial - Warp feature in Creo Elements aka Pro/E?

Sudhir Gill

7 Mar, 2012 07:50 AM

Here is the tutorial.

1. Step 1:

   Sketch >> Top plane.




2. Step 2:

   Draw a circle.




3. Step 3:

   Extrude it.




4. Step 4:

   Insert >> Warp.




5. Step 5:

   Select the body.

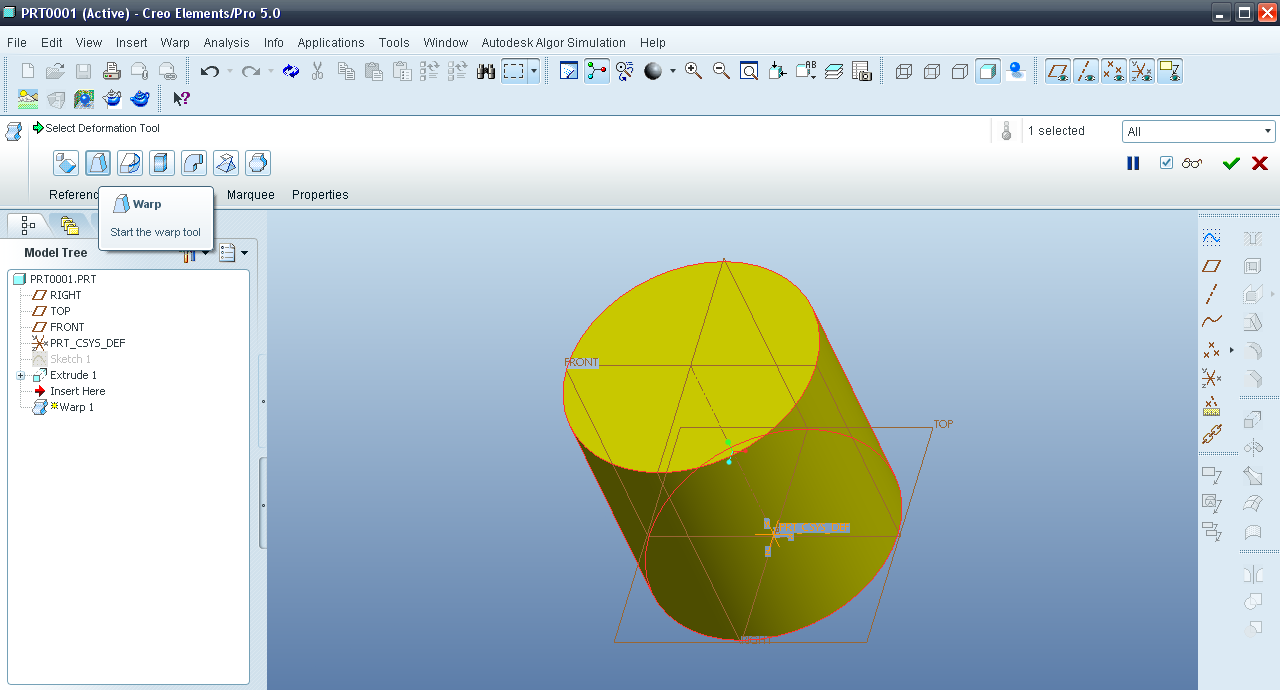

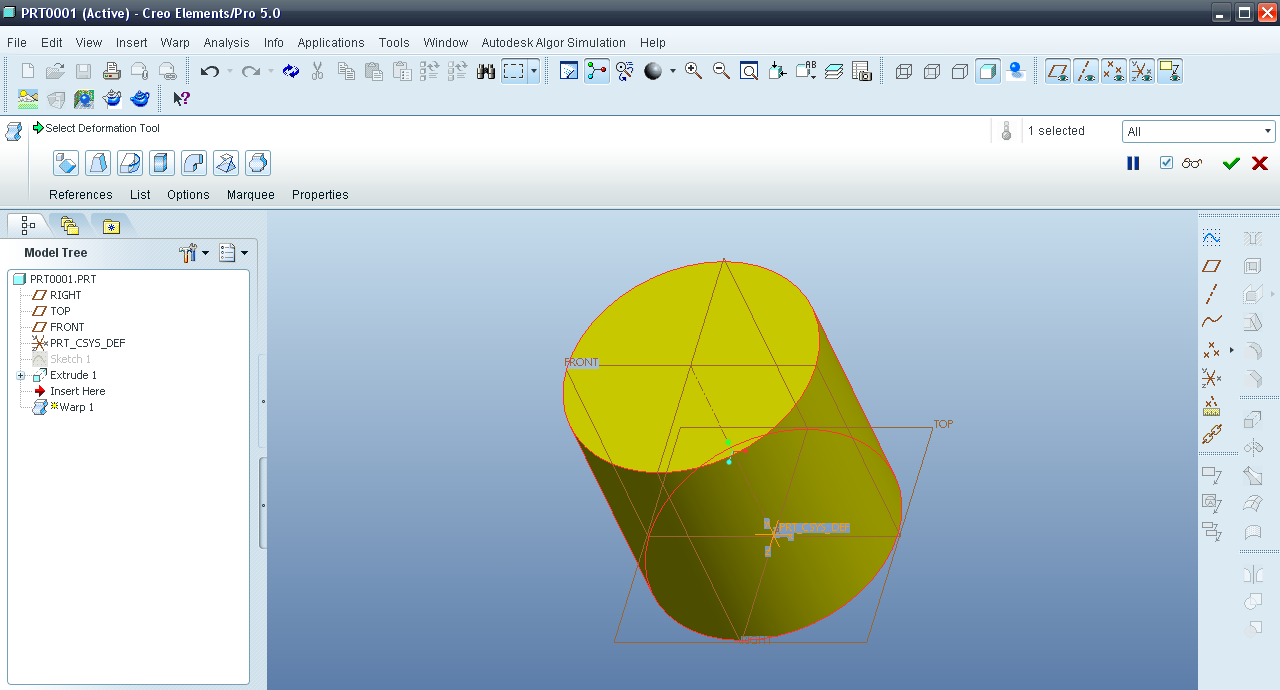

6. Step 6:

   Click Warp tool.




7. Step 7:

   Adjust the control vertices freeform or by clicking option and then edge to edge.

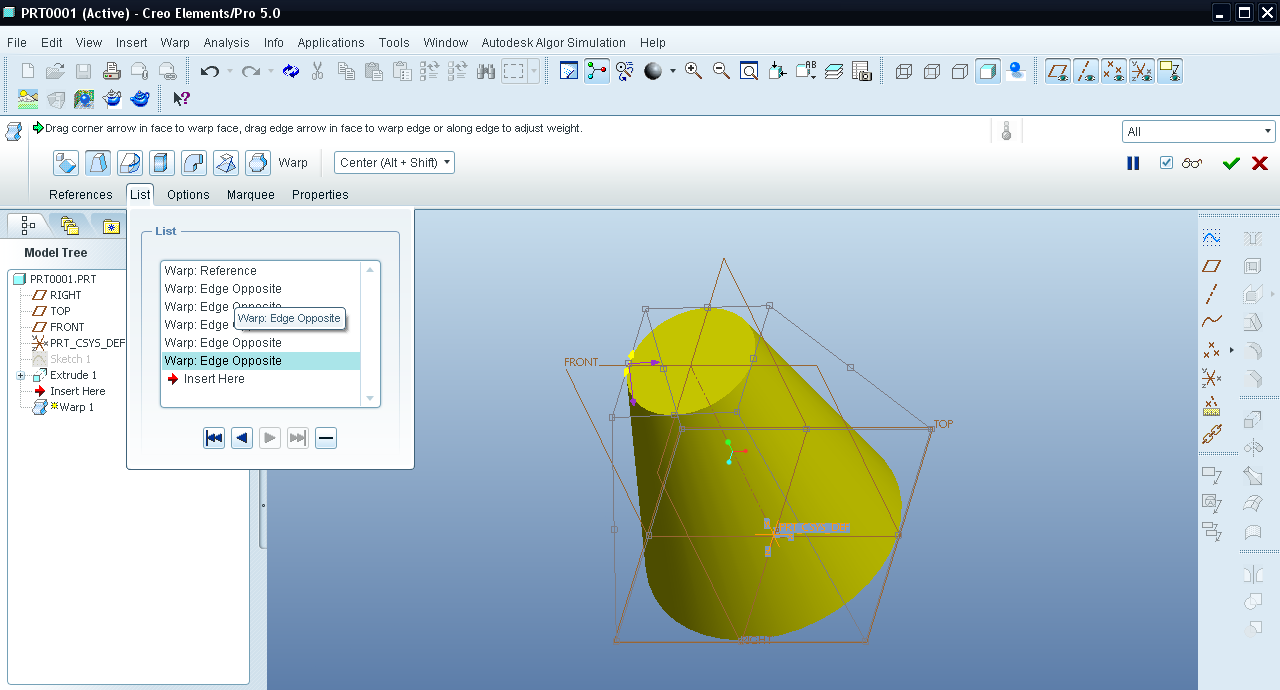

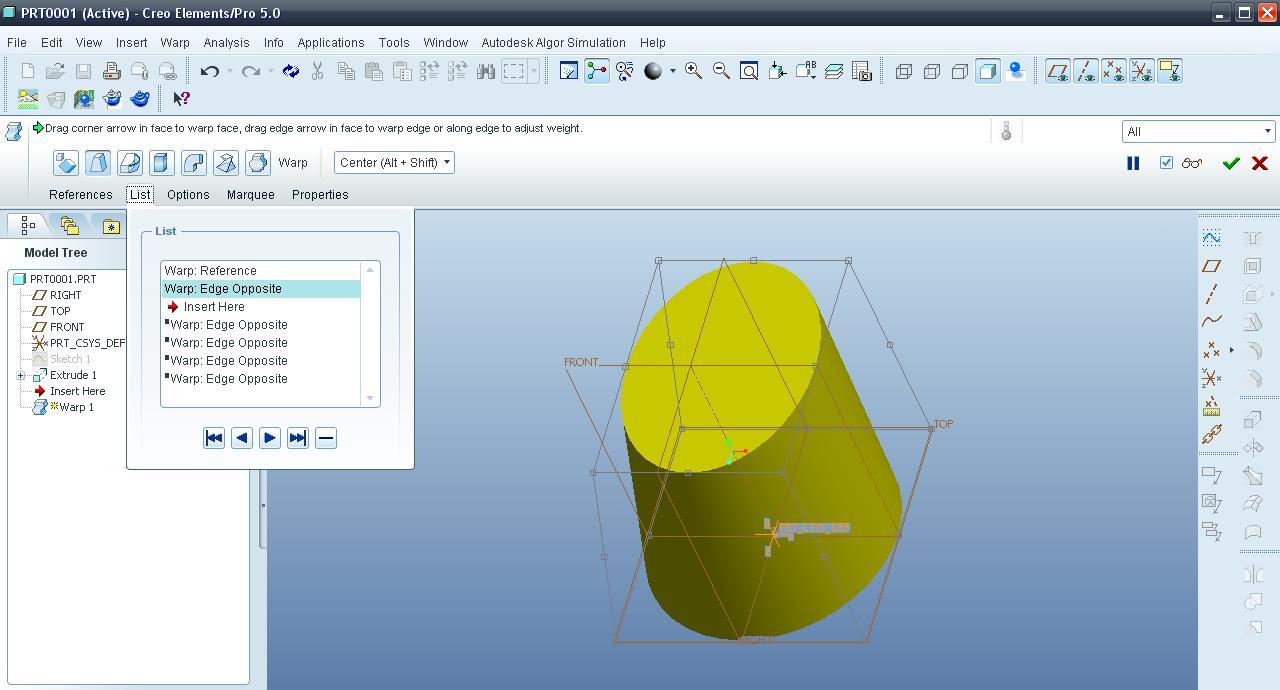

8. Step 8:

   Click List.




9. Step 9:

   We can change the selected edge here.

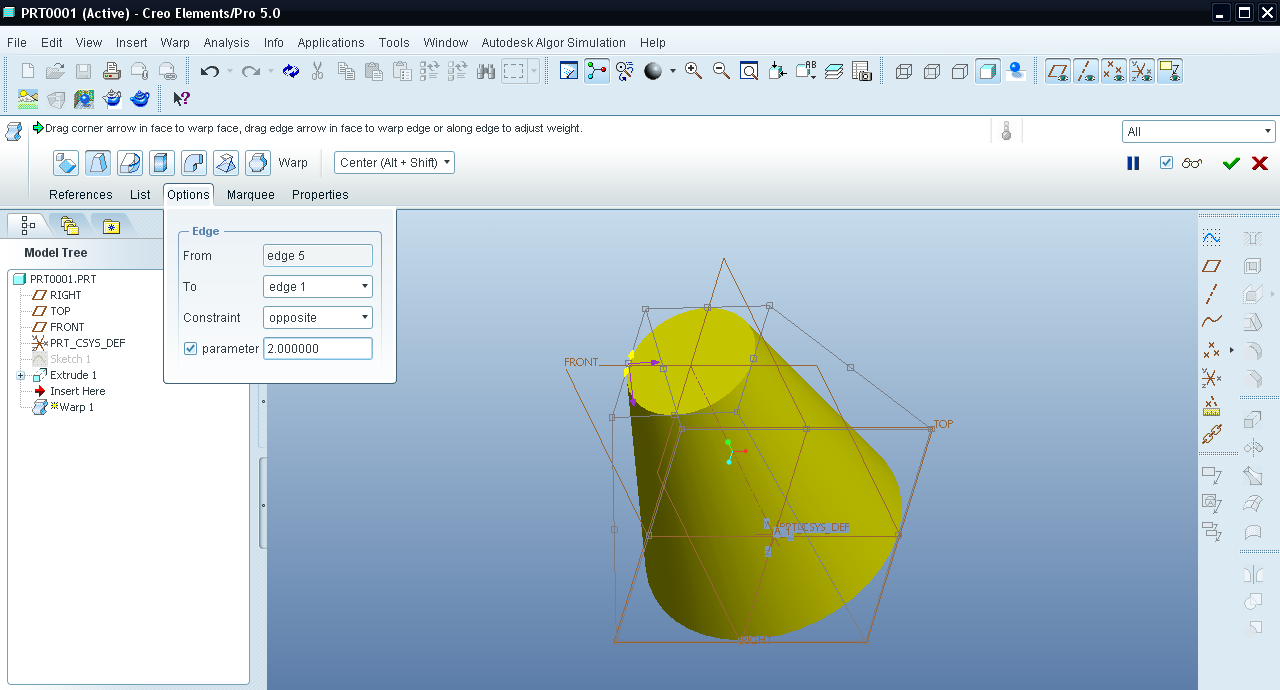

10. Step 10:

    Click Option and input the value for edge selected in previous step.




11. Step 11:

    Click OK and the feature is generated.
