Tutorial - Welded corner (Sheet-metal) in SolidWorks?

Sudhir Gill

16 Feb, 2012 06:53 AM

Here is the Tutorial.

1. Step 1:

   Start Solidworks and open the attached file.




2. Step 2:

   Under Sheet metal tab click Corners>>Welded corner.




3. Step 3:

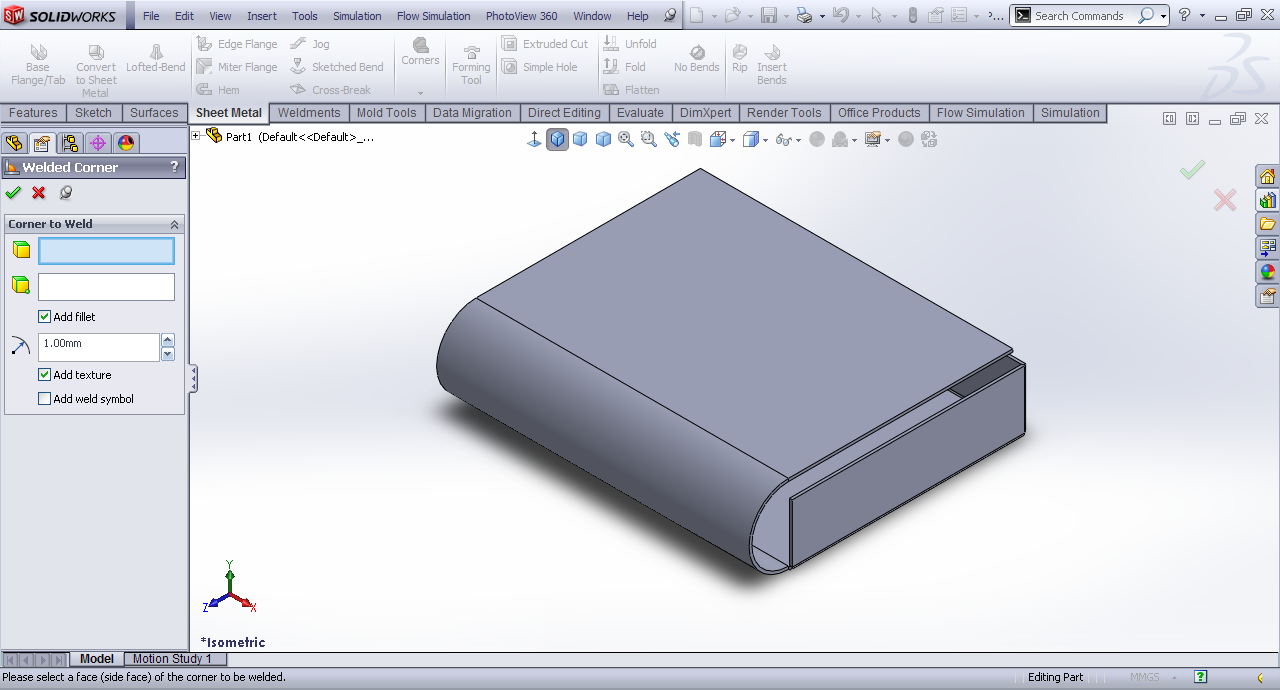

   The Welded corner property manager will show.




4. Step 4:

   Select the edge and the vertex and keep the default radius value.




5. Step 5:

   Click OK and then close and we have the welded corner feature generated.
