How to Creat Large Patterns using Inventor 2012?

I'm trying to make a large perforated pattern for a television speaker area. It consists of almost 13,000 very small holes. Inventor freezes when I array the pattern. Is there an easier way of creating this type of pattern?

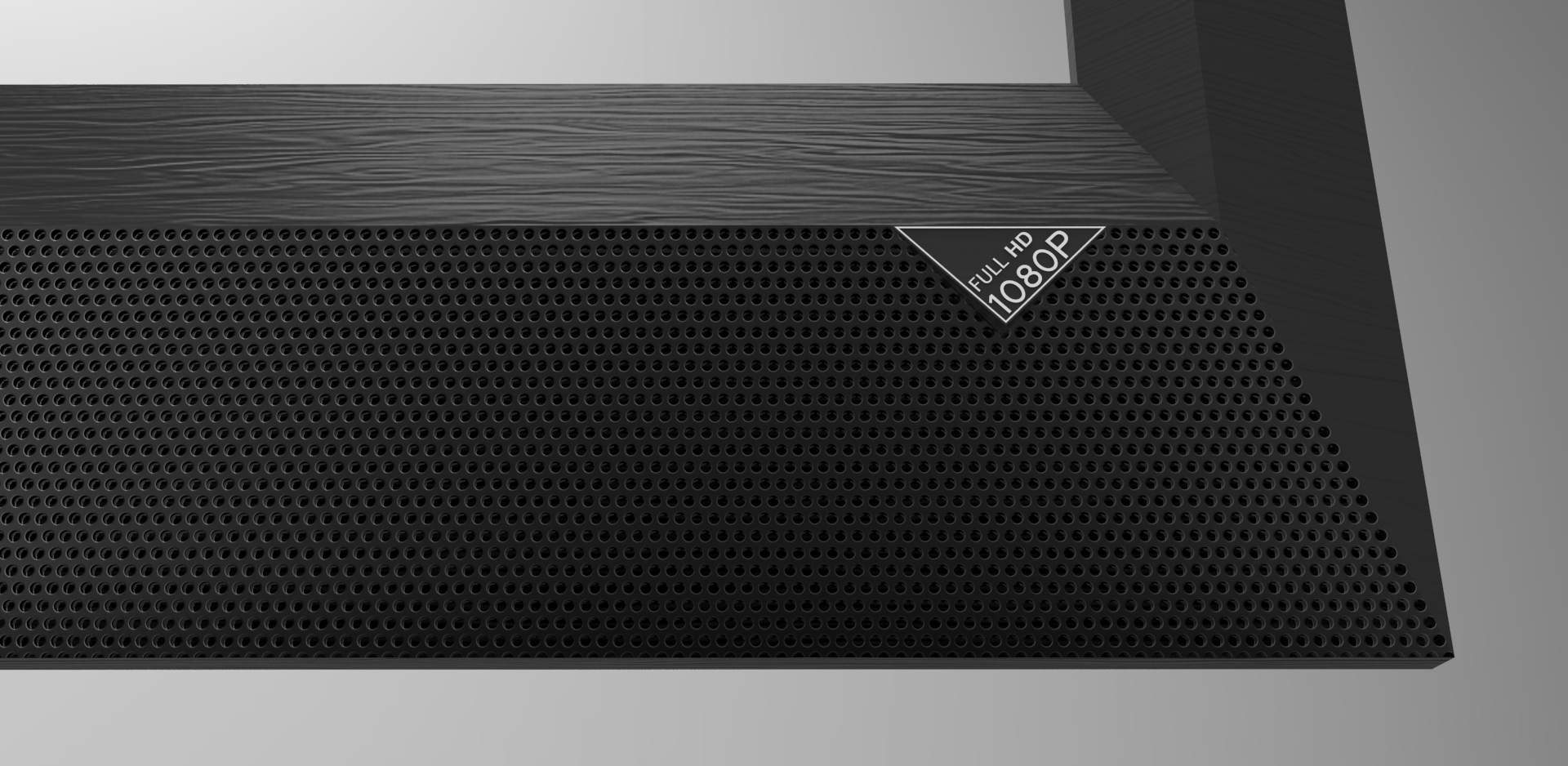

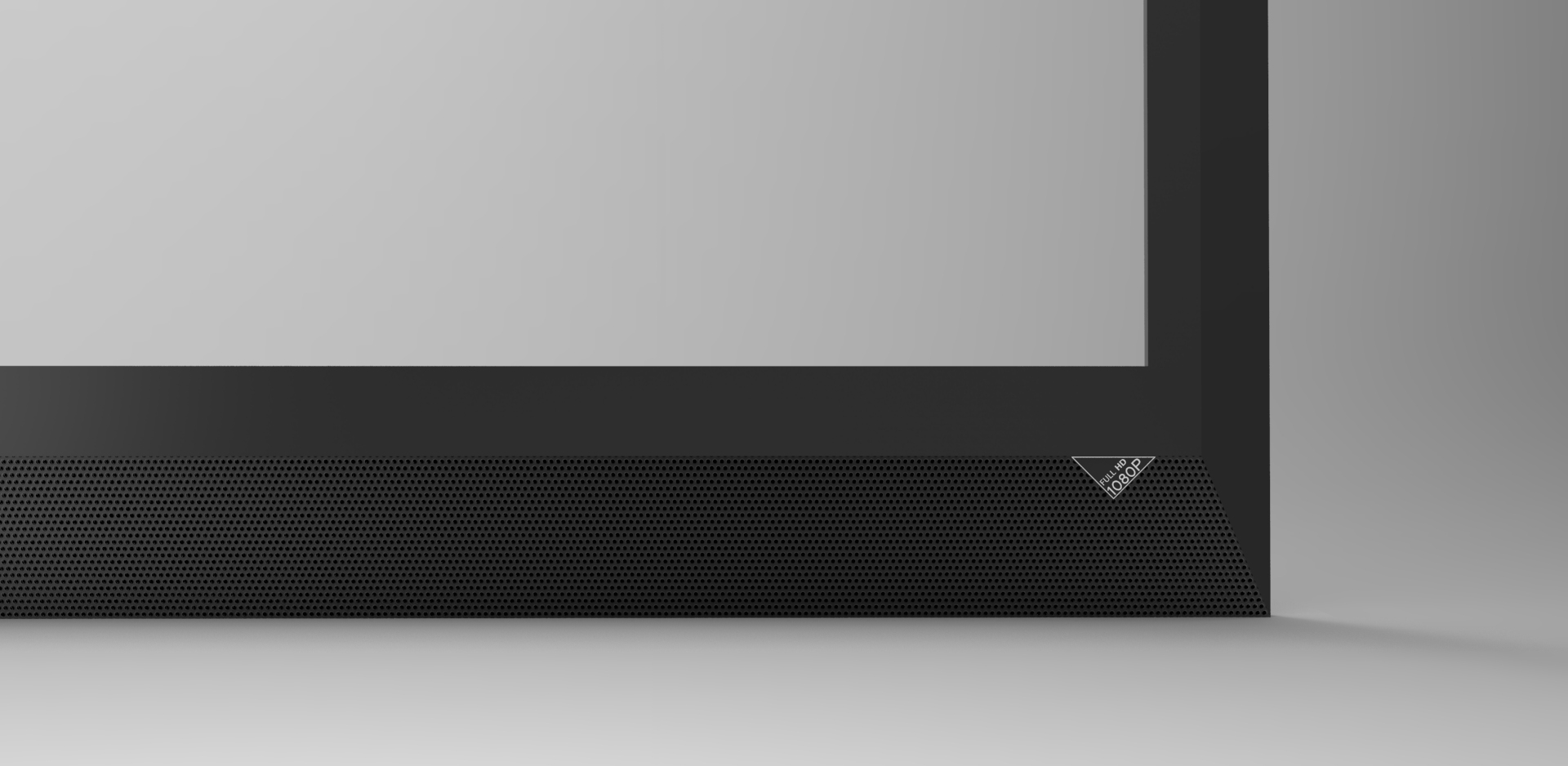

I attached a photo of the TV I'm modeling, I'm referring to the small hole pattern on the bottom of the television where the speakers are located.

    9 Answers

    You might be able to achieve the look by using a material with hole like expanded metal. Just a thought.

    Upvote 1Upvoted 2 Downvote 0Downvoted 1

      I would suggest to split the whole pattern in sections it works better but it's a bit annoying to manipulate it...

      Upvote 1Upvoted 2 Downvote 0Downvoted 1

        Hi Cullen there is no easy way it is down to IV and the resourses the software will use from your computer. You will always get a problem with this kind of comand... 3 options, bare with it with your comp, buy a super comp, ask someone on GrabCAD that does have a super comp if there could do it for you.
        :P

        Upvote 0Upvoted 1 Downvote 0Downvoted 1

          I've come to the same conclusion. I tried splitting the pattern into smaller sections, and it worked it just takes a lot of time. I'll try making a pattern that looks similar, otherwise I'll just skip it until I have 20K to drop on a supercomputer. Is there another program that can handle this type of command other than AutoCAD? Will solidworks handle this better?

          Thanks

          Upvote 0Upvoted 1 Downvote 0Downvoted 1

            There maybe some software that is somewhat better than others, but bottom line 13000holes creates a lot of geometry. Try making a sheet metal part that is say 24in square. Make the part metal and apply an expanded metal surface to it. It is a very believable look with out the geometry.
            With some research the correct look should be achievable.

            Upvote 0Upvoted 1 Downvote 0Downvoted 1
            • William
              William 24 Jun, 2012 01:06 AM

              Hi Kevin after reading your answer about sheet metal, just had an Idea! make it an I-Part and with the right equation in the parameters would that maybe work? to late for me to try it as time for bed now..... Just a though, anyway have a nice night m8 :P

            • Cullen Williams
              Cullen Williams 24 Jun, 2012 01:15 AM

              Yes that may work also, although the face in which i need the perforation is more of a trapezoid.

            If anyone would like to take a look Here is the model in which I need the perforation, If you need a different format please ask.

            Diameter of each circle is .05", and about .1" apart from one another from center point to center point.

            Upvote 0Upvoted 1 Downvote 0Downvoted 1

              I was able to apply a material to the model in Keyshot that looks really similar. Here is a render of the pattern. Thanks for the suggestions

              Upvote 0Upvoted 1 Downvote 0Downvoted 1

                I wish Autodesk would do something about this issue, because its a major barrier for my process. I drew this wall with 4500+ holes and it took forever for inventor to figure out the geometry. Every small correction took about 5 minutes to recalculate. The most frustrating part is that my computer was only running about 15% in processing power and i also had lots of ram left. Inventor should at least use the power available.

                Here's my wall: http://www.behance.net/gallery/CPH-Urban-Toilet/5826687

                Anyways, i'm happy that keyshot could help you out.
                - Morten

                Upvote 0Upvoted 1 Downvote 0Downvoted 1
