how to make sketch in 3D mode on the object face picture and model shown?

rehan
rehan
7 Sep, 2013 06:29 PM

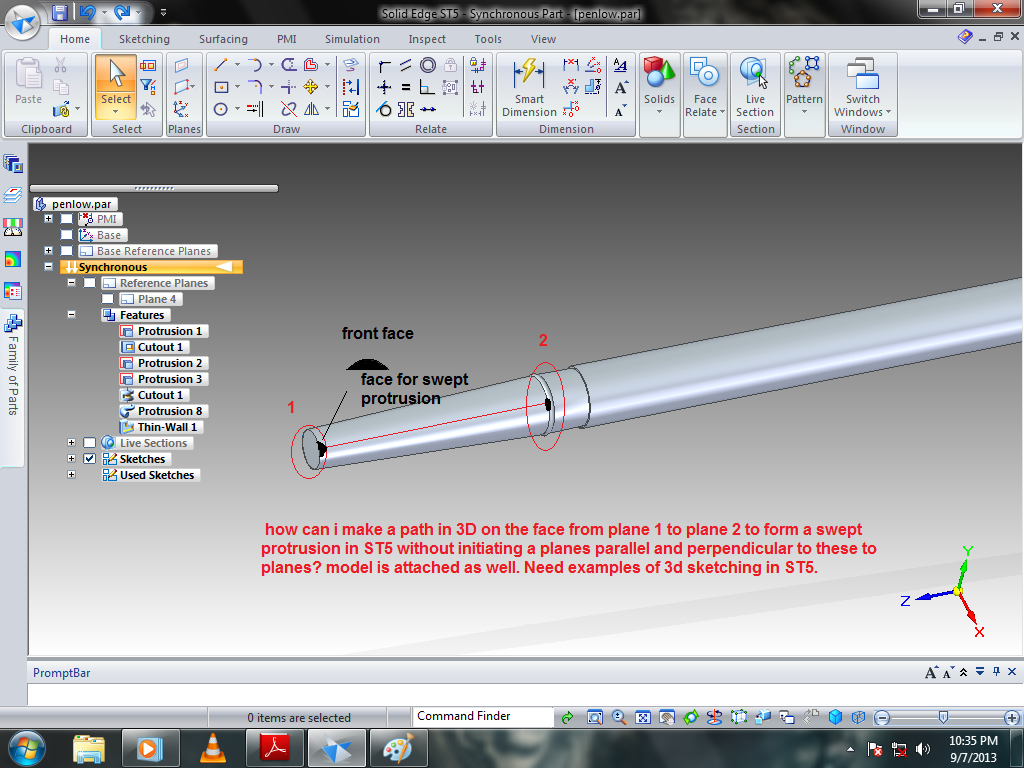

I want to make sketch in 3D mode on the object face. How can i do that in solidedge ST5?
can a sketch be make without initiating plane for every new sketch??

pen.png pen.png penlow.par

2 Answer

Fikusz Kukisz
Fikusz Kukisz
Answered on 13 Oct, 2013 09:47 PM

select object's face for new sketch plane

Haider Shakoor
Haider Shakoor
Answered on 16 Nov, 2013 02:14 PM

you can use tangent plane or use quadrant points on round faces
