Tutorial how to make engine part 17

Aykut Dana

26 Feb, 2012 08:58 PM

Carter-2

1. Step 1:

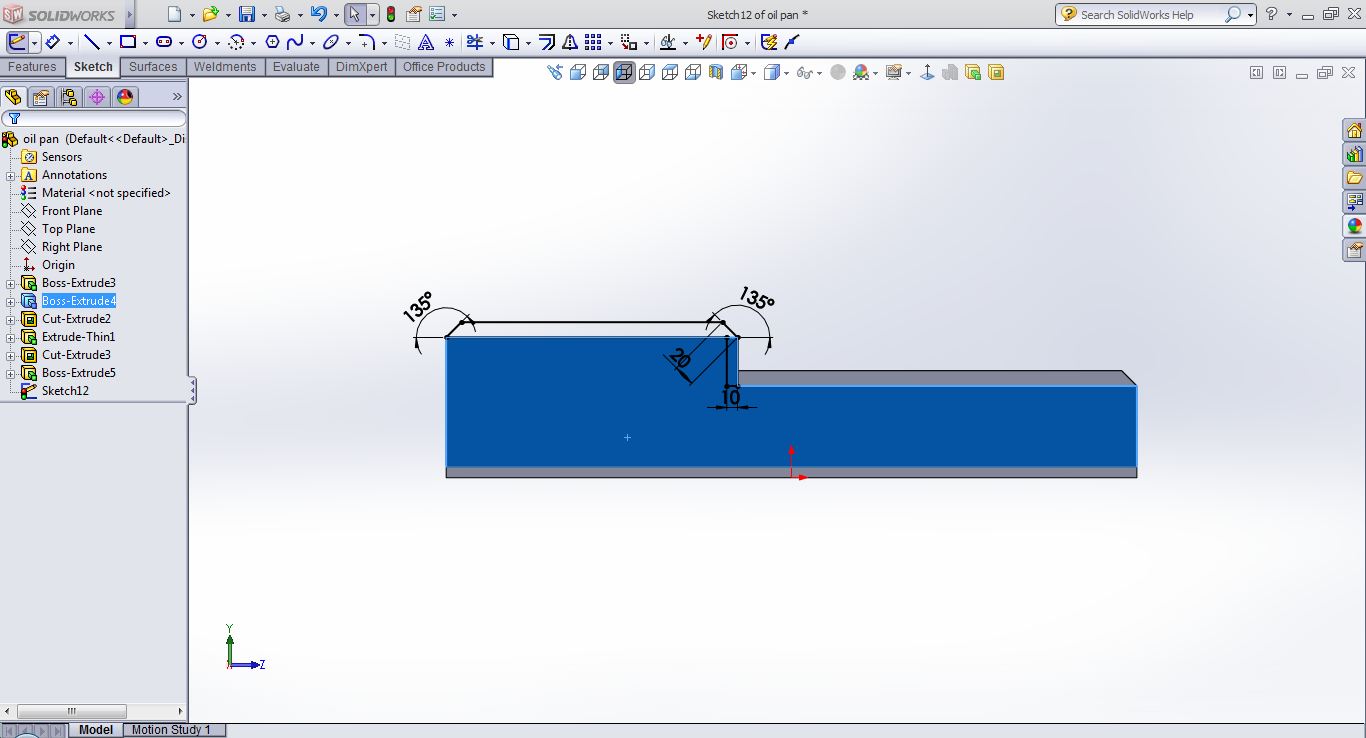

   draw shown sketch on the blue surface




2. Step 2:

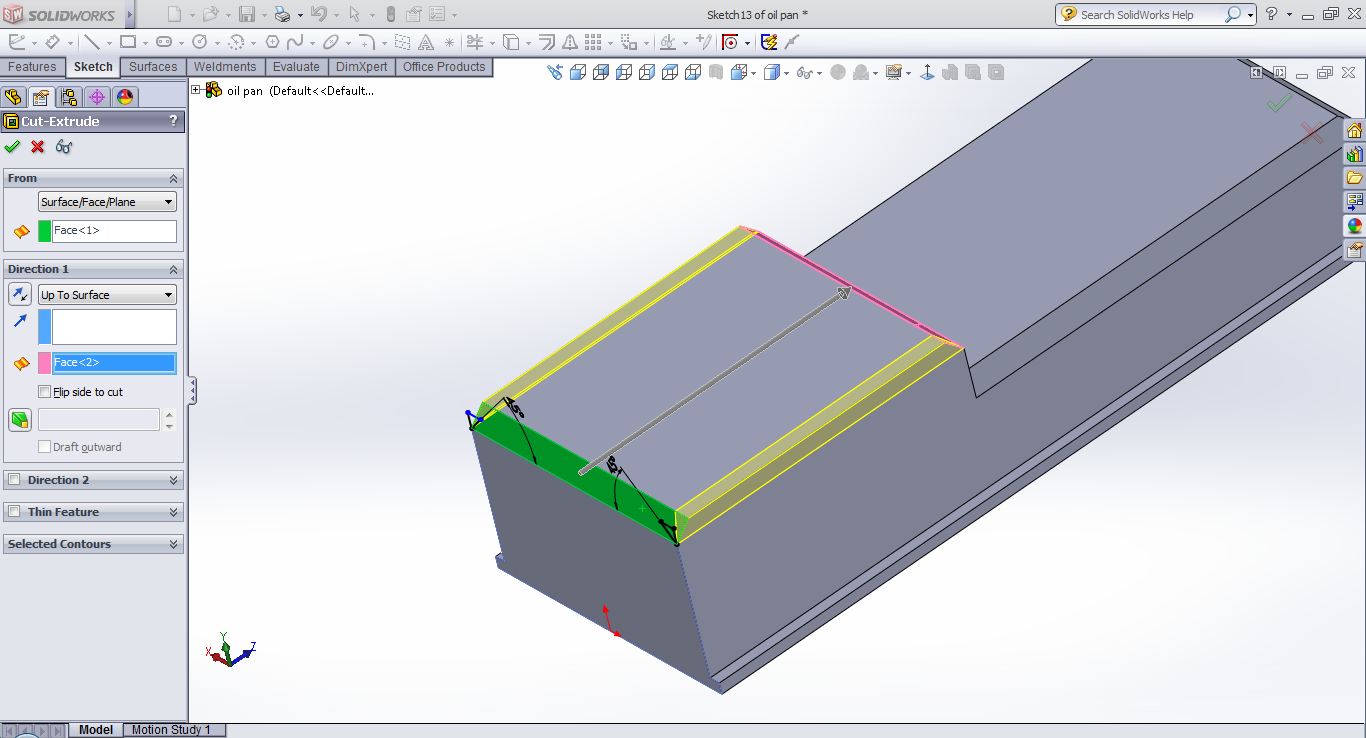

   use cut extrude command .




3. Step 3:

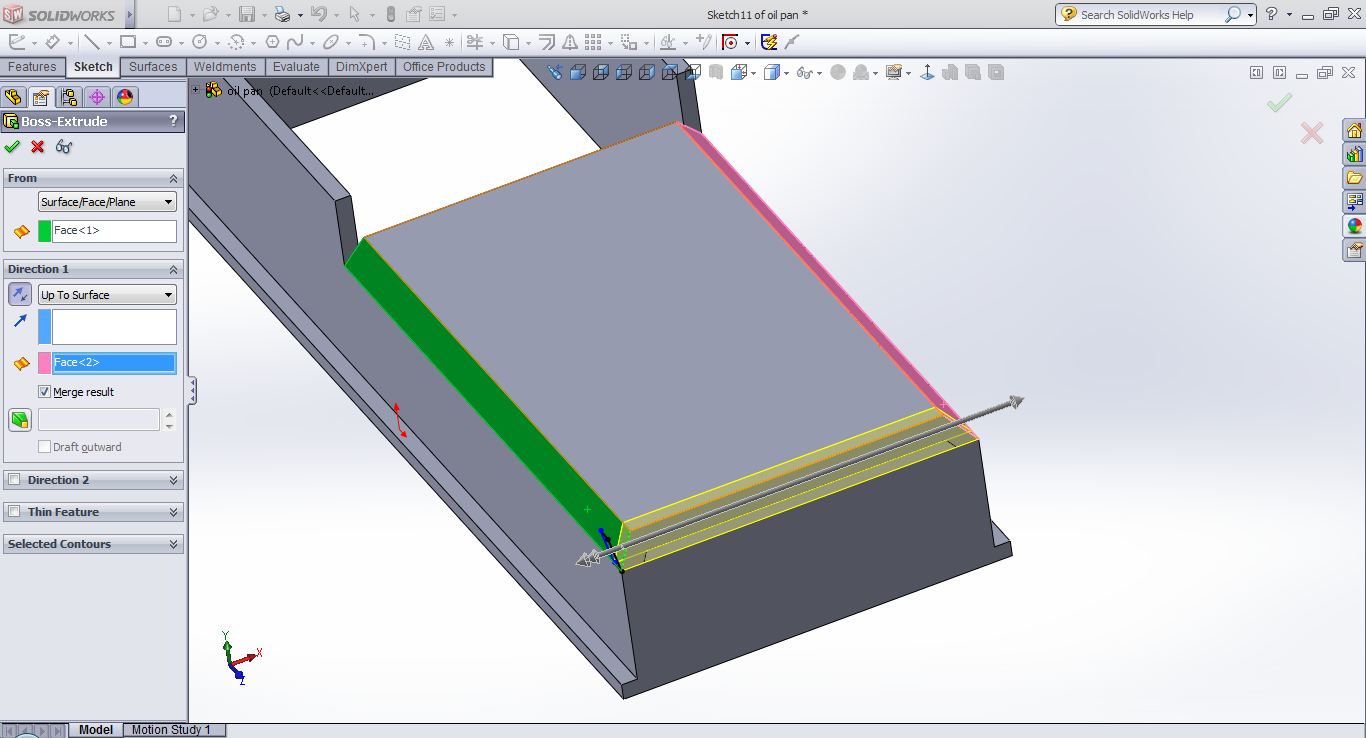

   use extrude command. click on 'from surfacde-face-plane' option and select he green surface. then click on direction 1 'up to surface' and select the pink surface




4. Step 4:

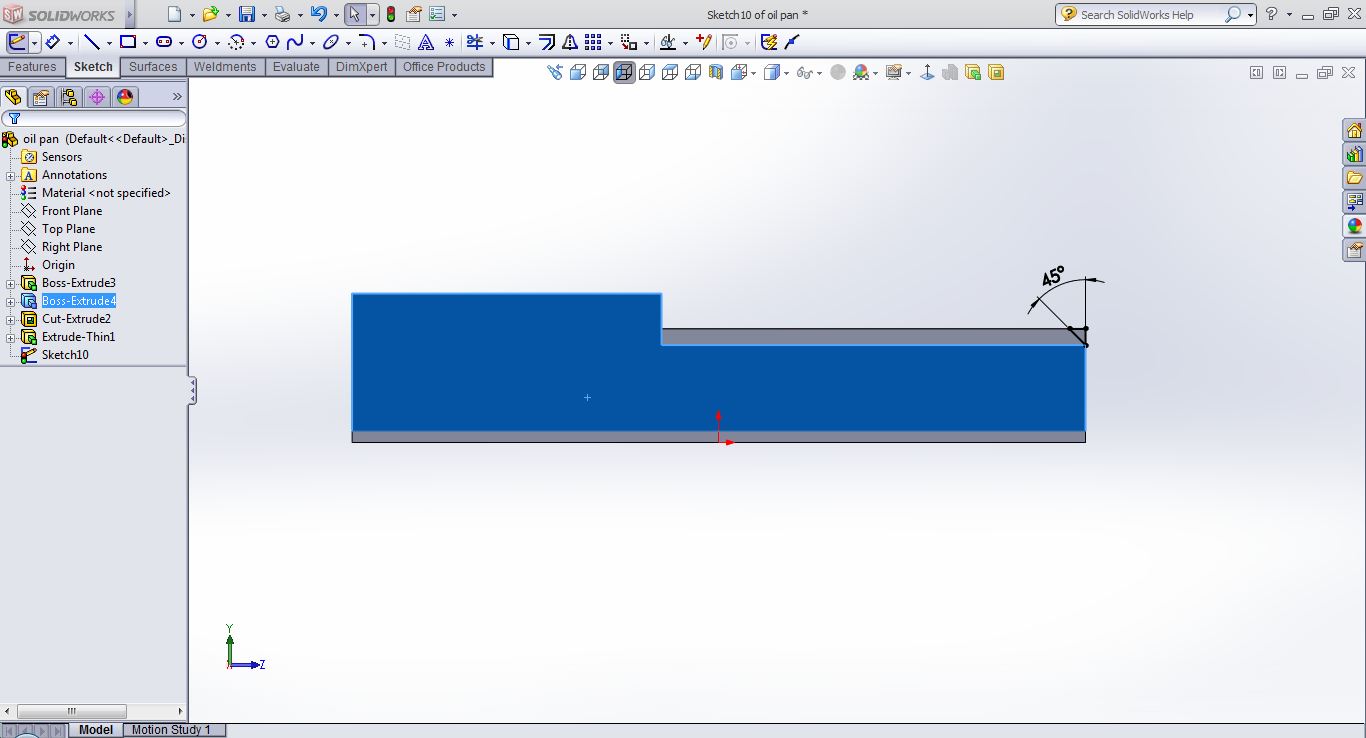

   draw shown sketch on the blue surface..




5. Step 5:

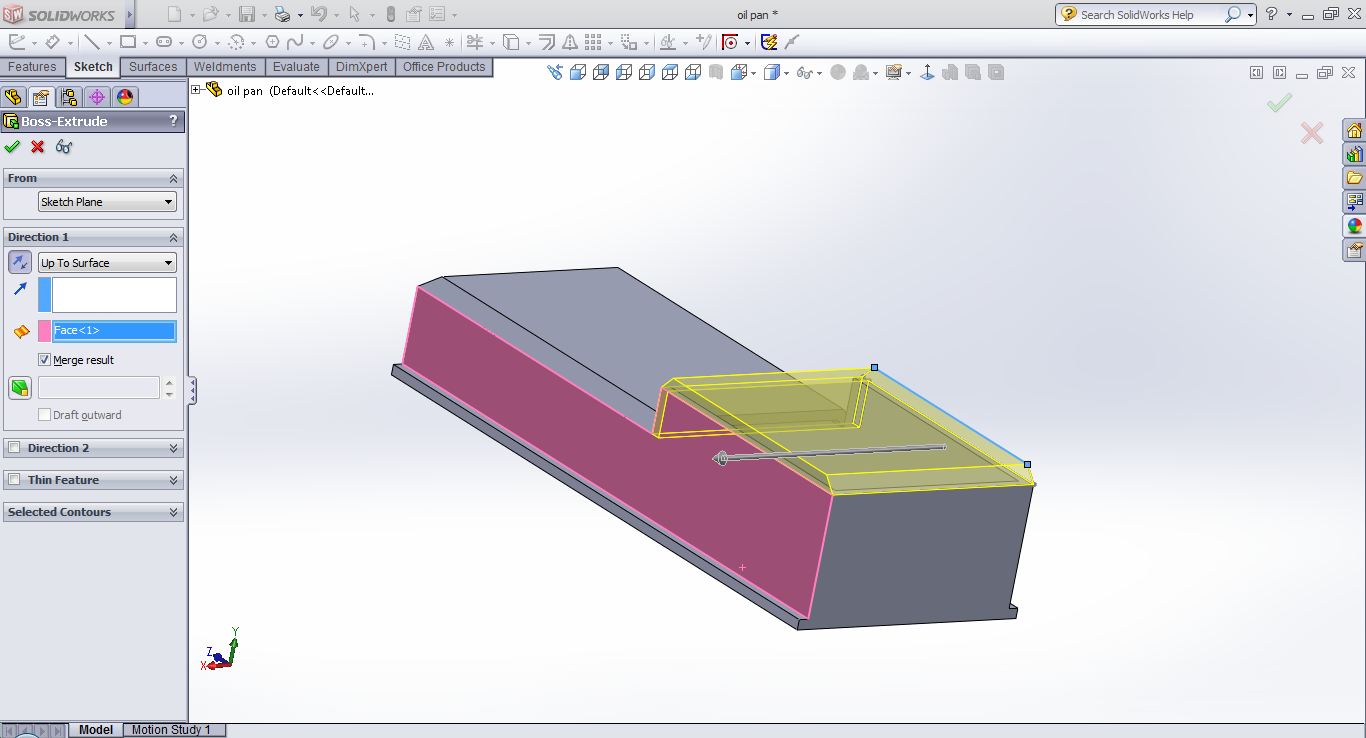

   extrude the sketch up to pink surface




6. Step 6:

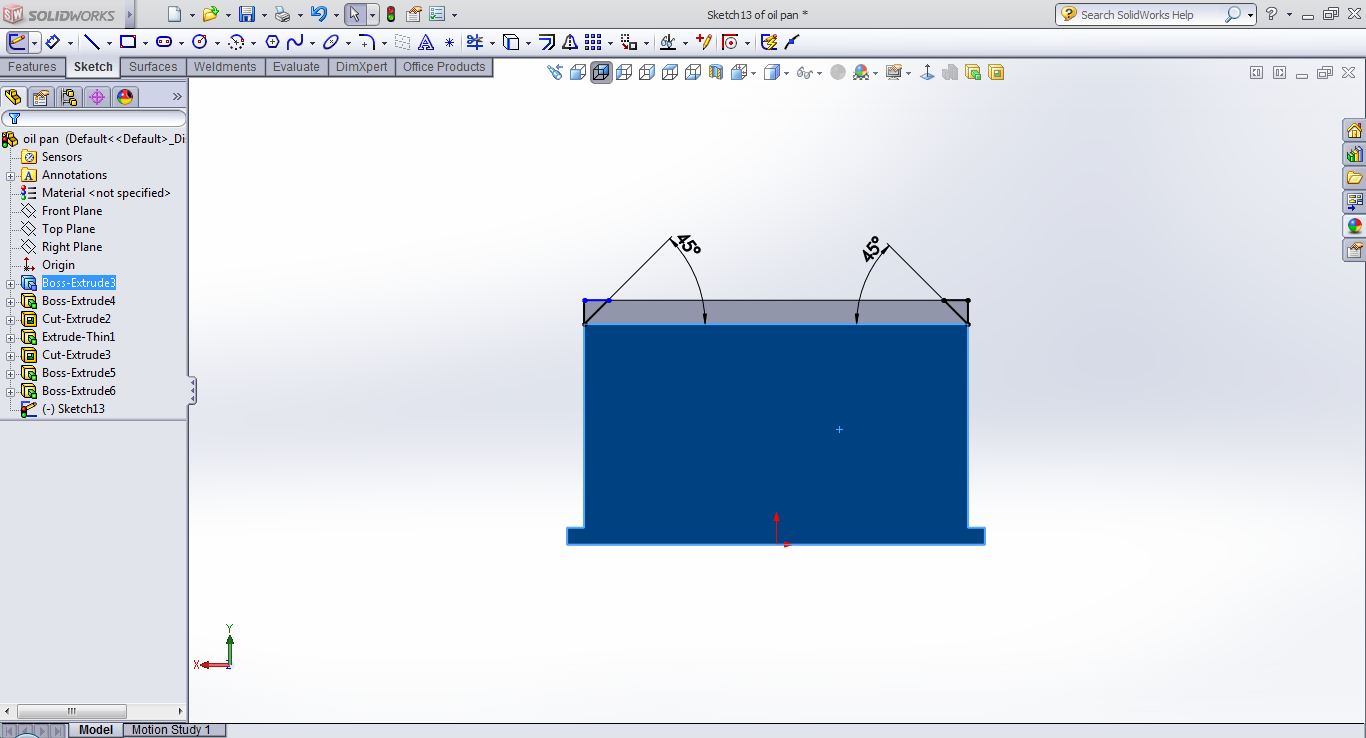

   draw shown sketch front of the body




7. Step 7:

   make same things again




8. Step 8:

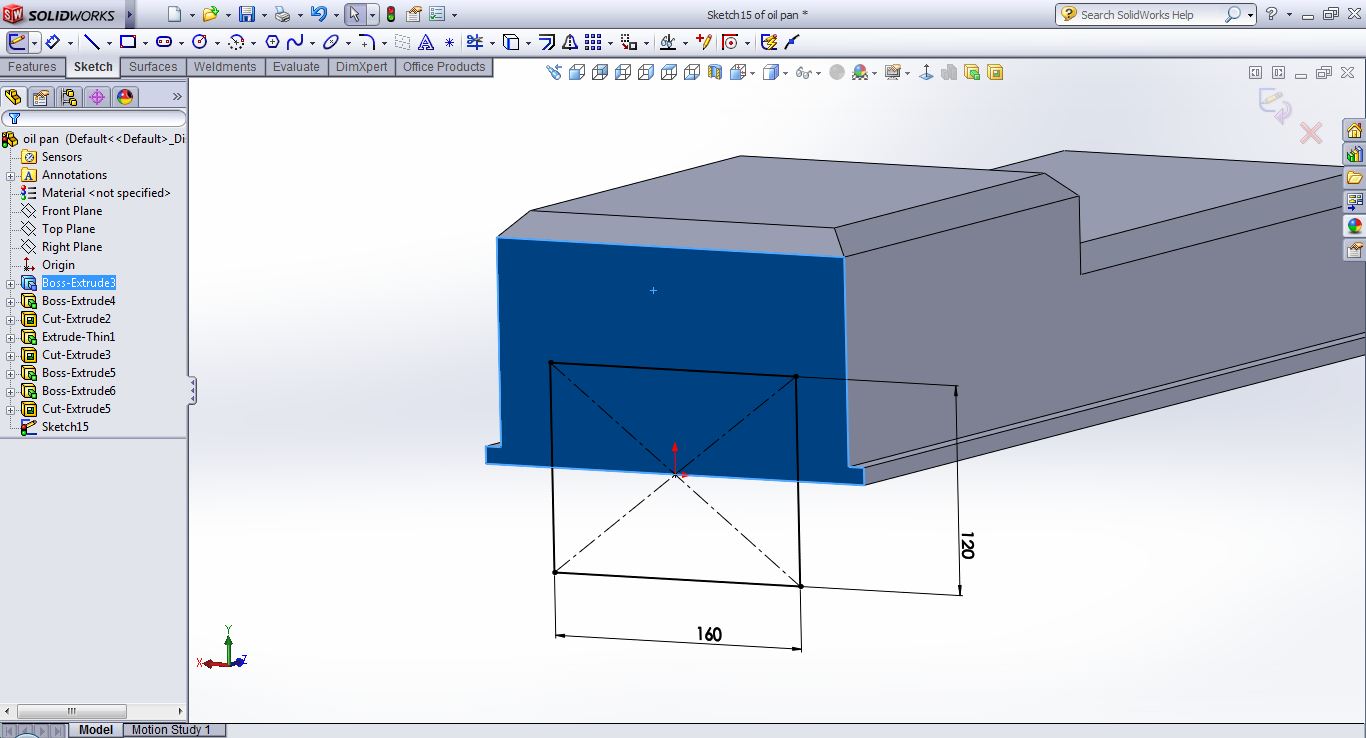

   draw a rectangle on the blue surface




9. Step 9:

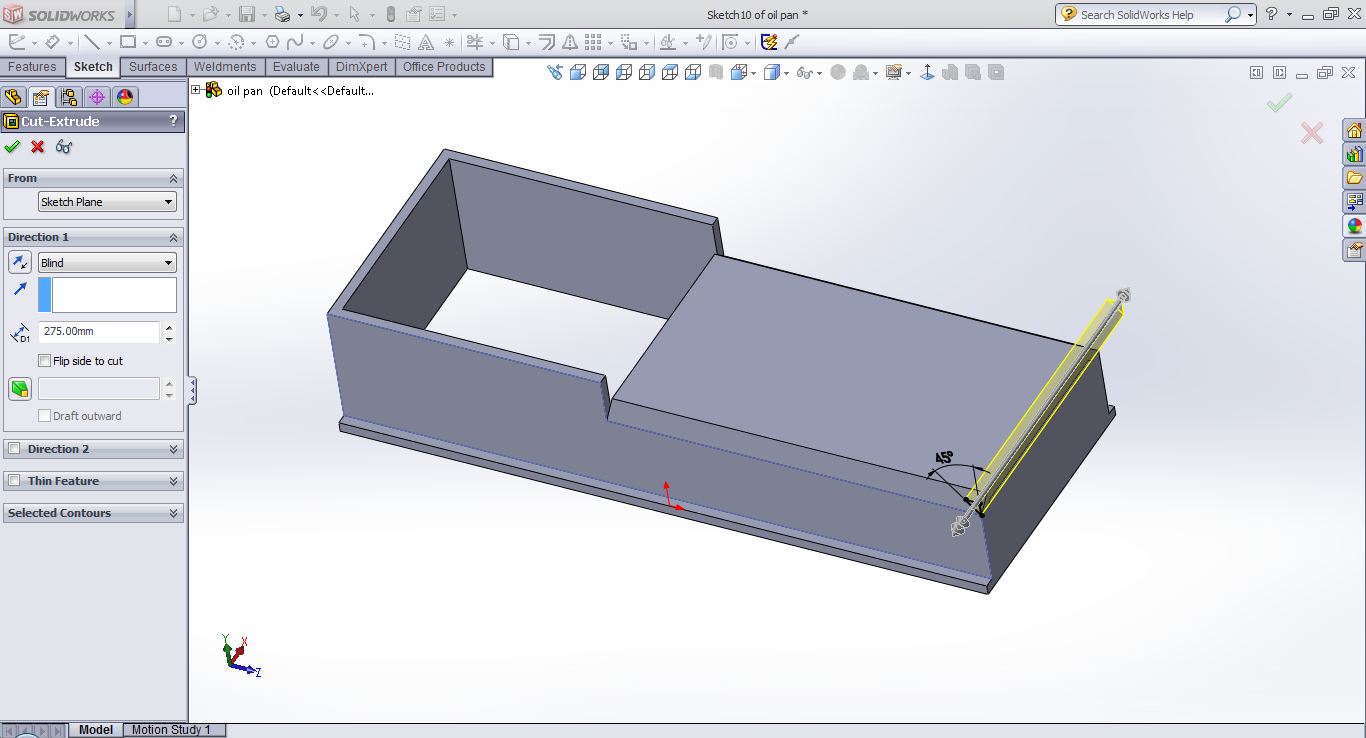

   use cut extrude command.

   please follow next tutorial
