Tutorial how to model a propelling pencil (32)
continue
-

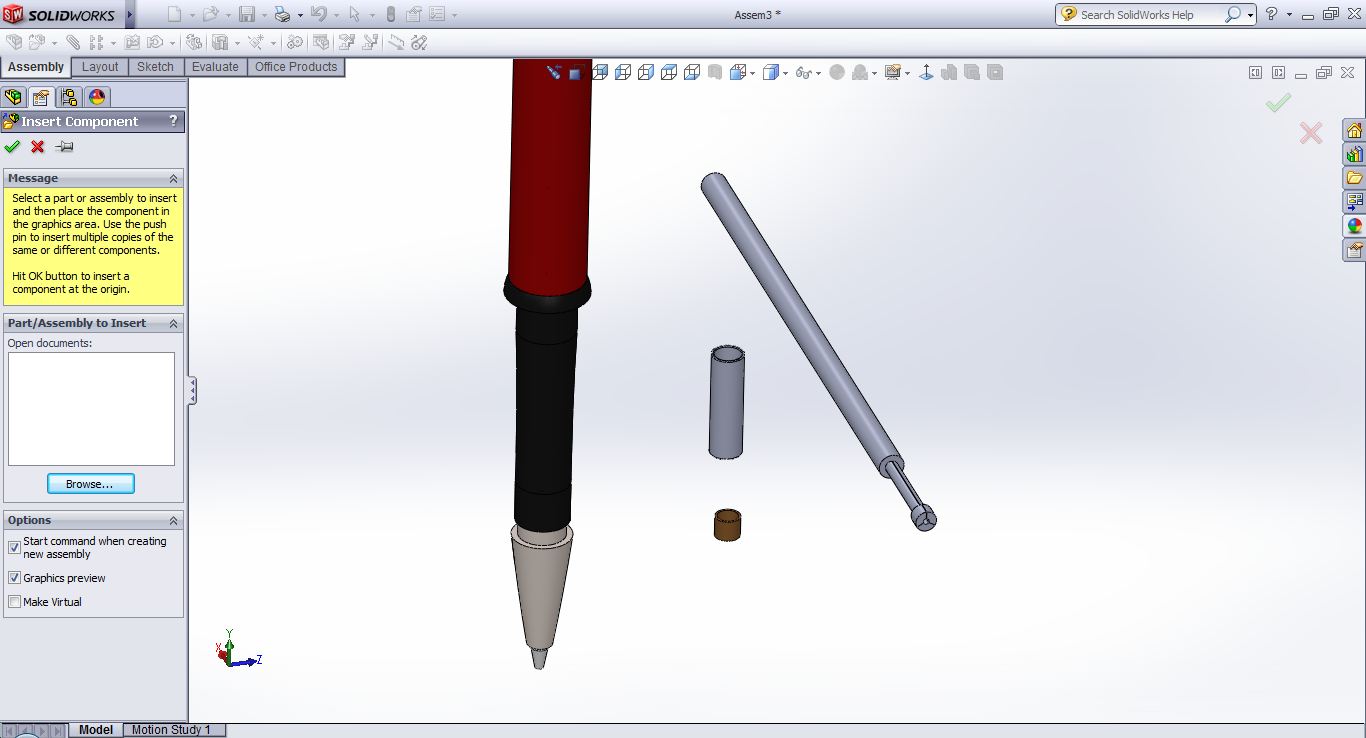

Step 1:

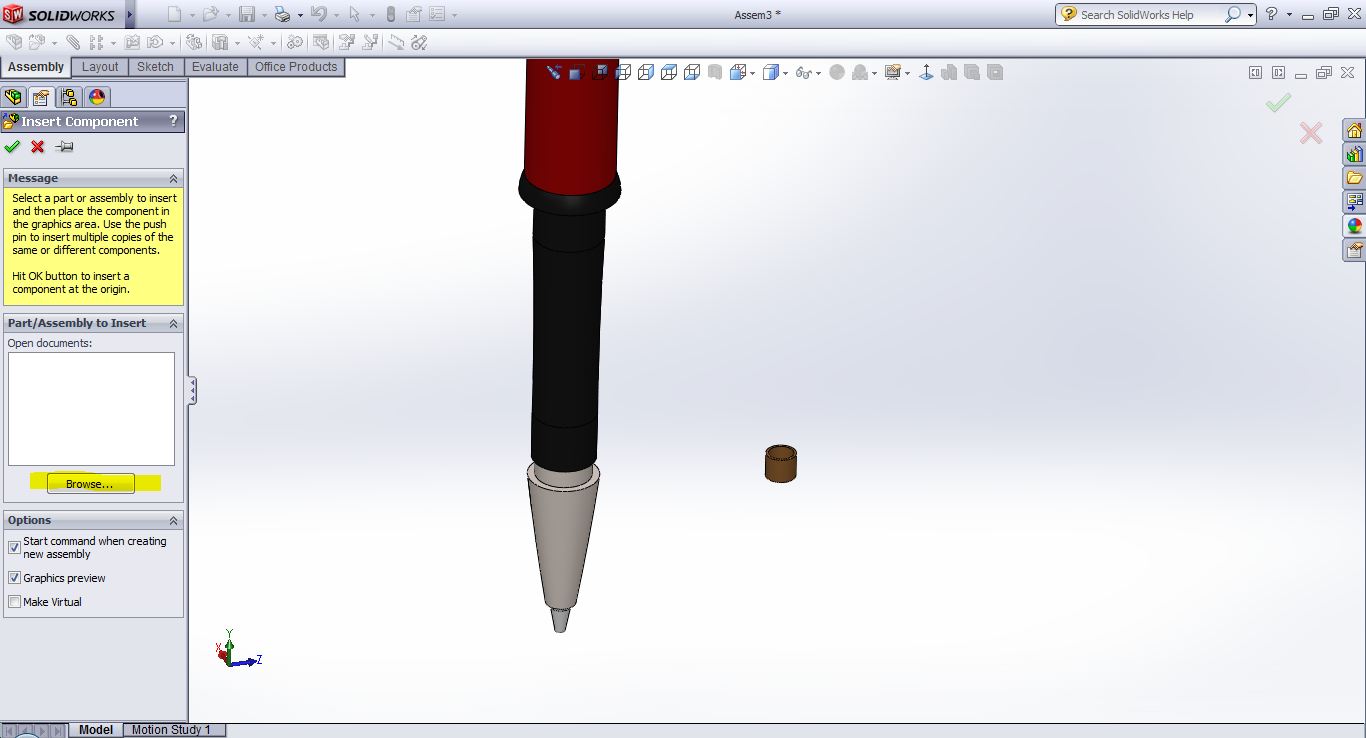

insert part 5
-
Step 2:

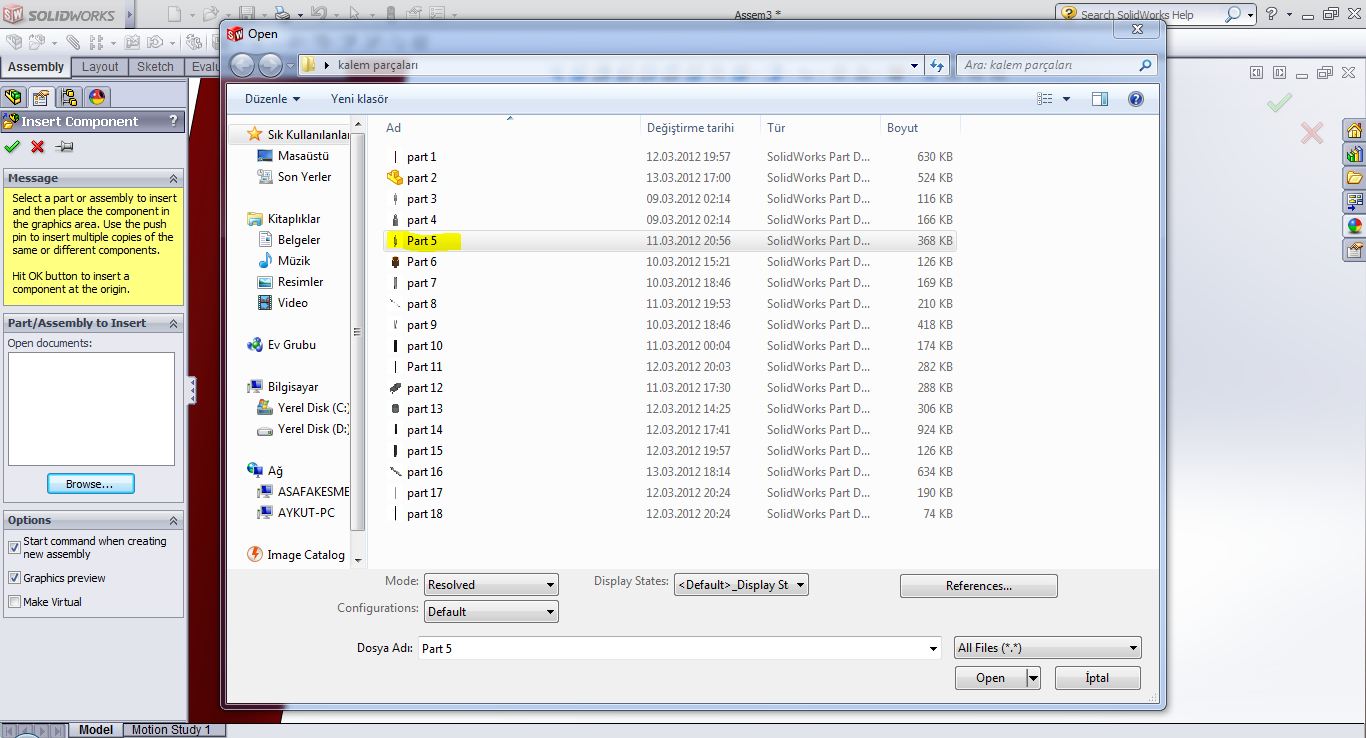

click on browse button again
-
Step 3:

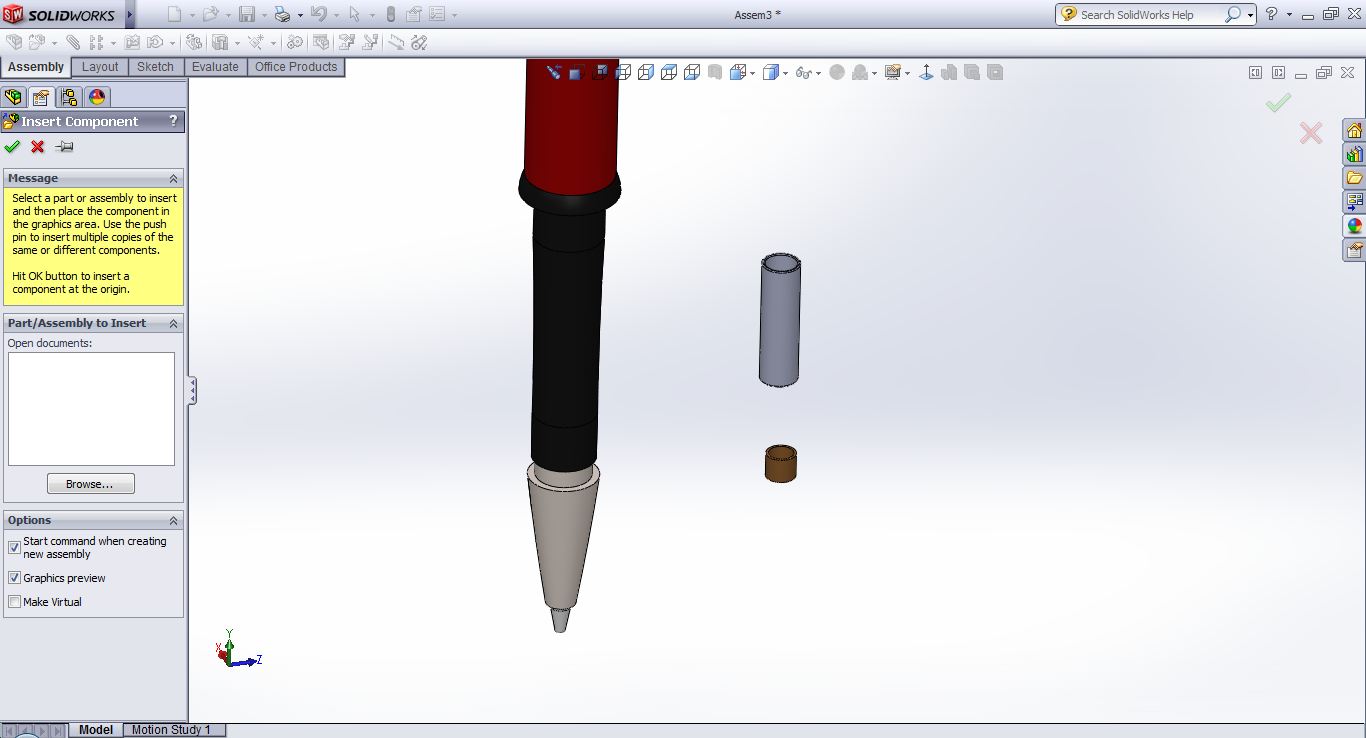

insert part 7
-
Step 4:
drop it
-
Step 5:

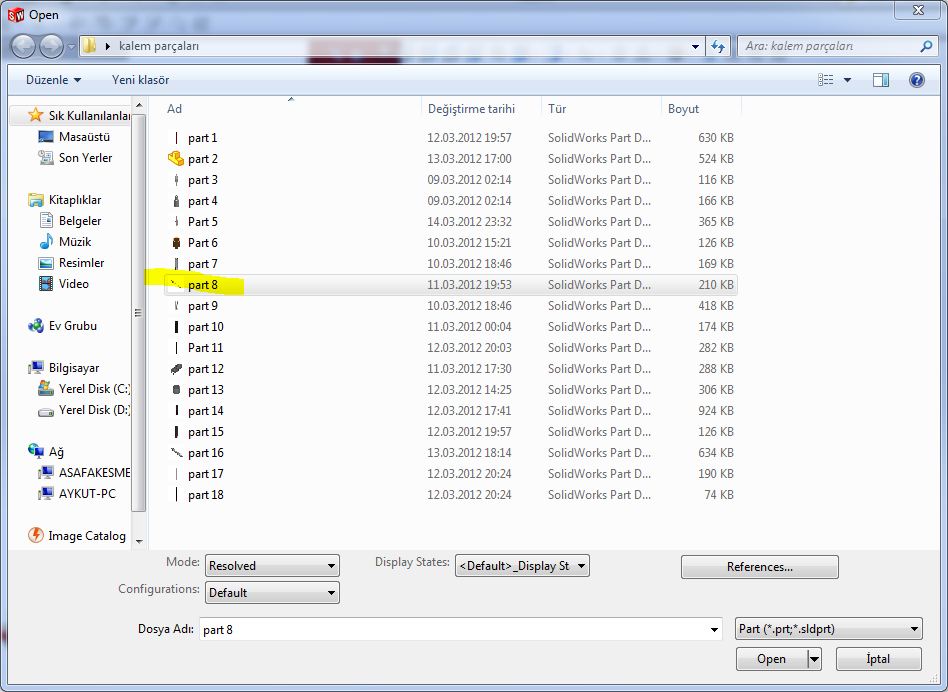

insert part 8
-
Step 6:
drop it..
-
Step 7:

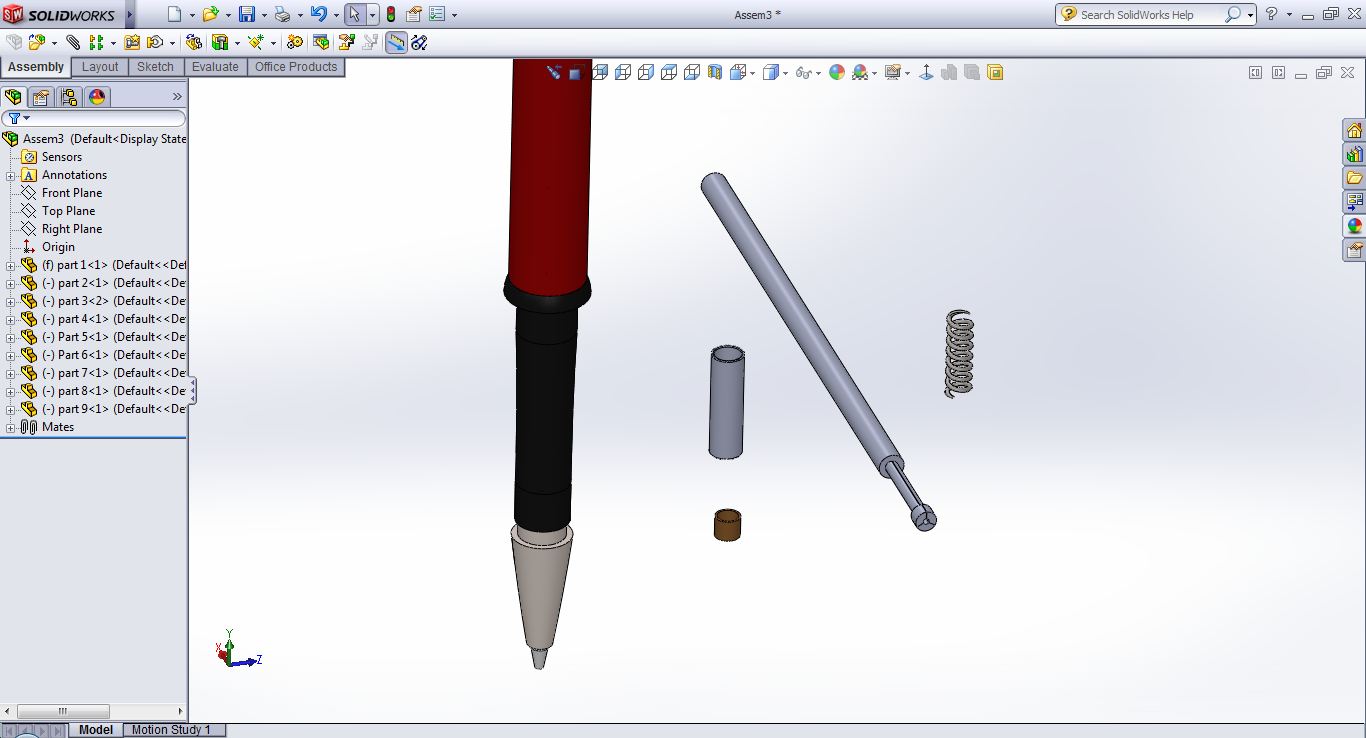

insert part 9
-
Step 8:
edge 1
-
Step 9:
surface -- confirm
-
Step 10:

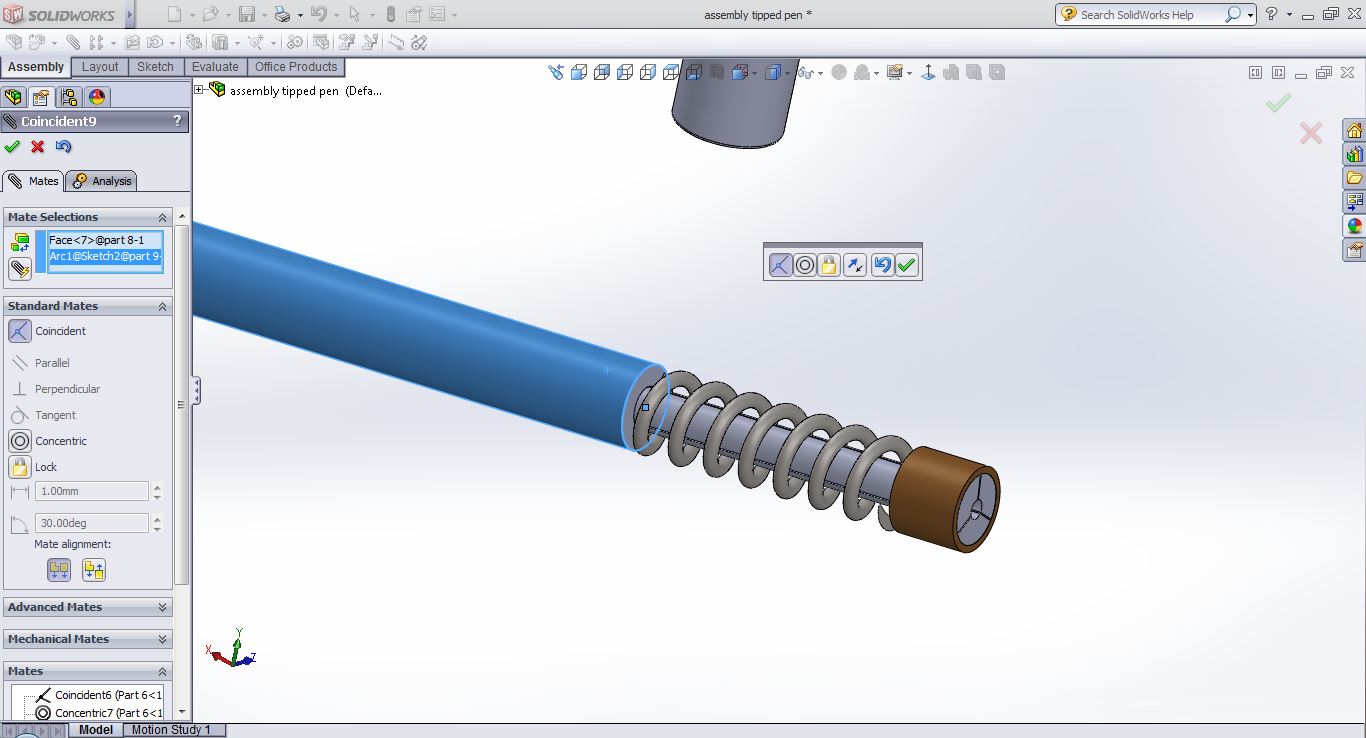

surface 1
-
Step 11:
surface 2 -- ok
-
Step 12:

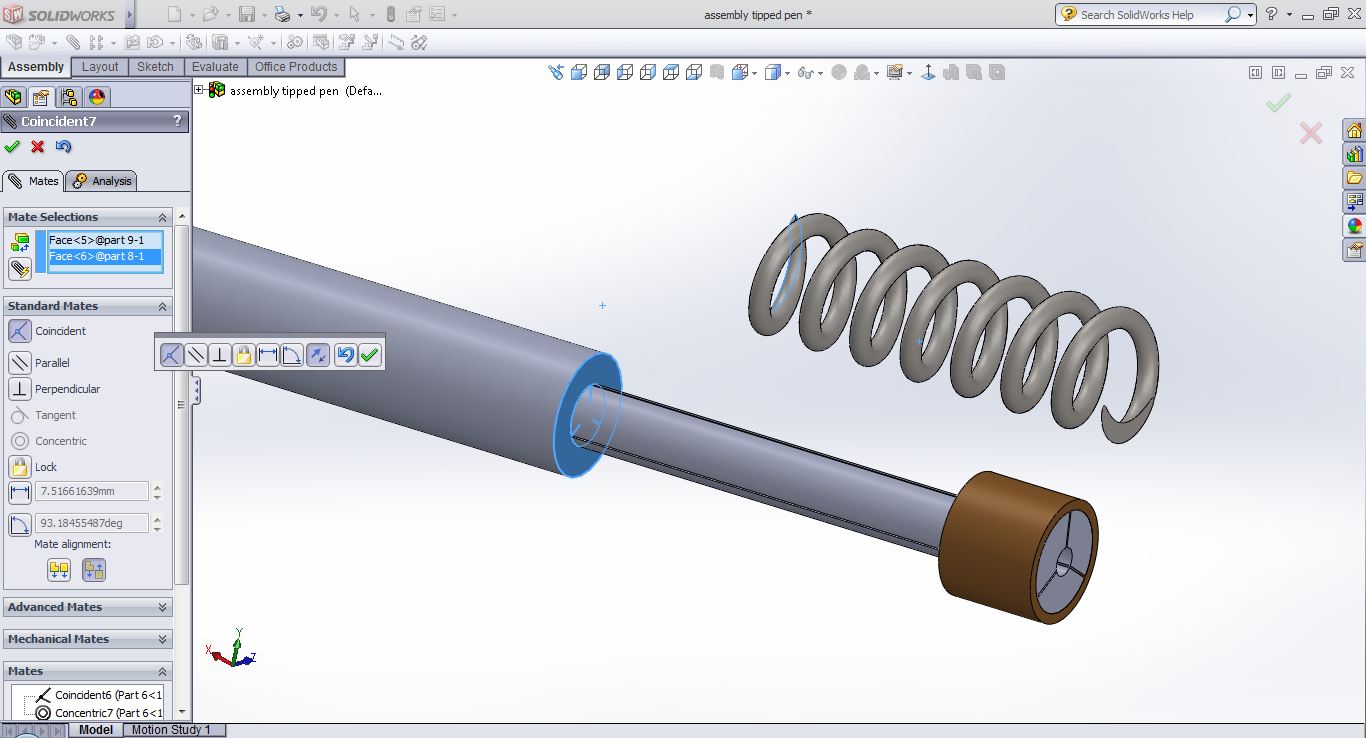

face 1
-
Step 13:

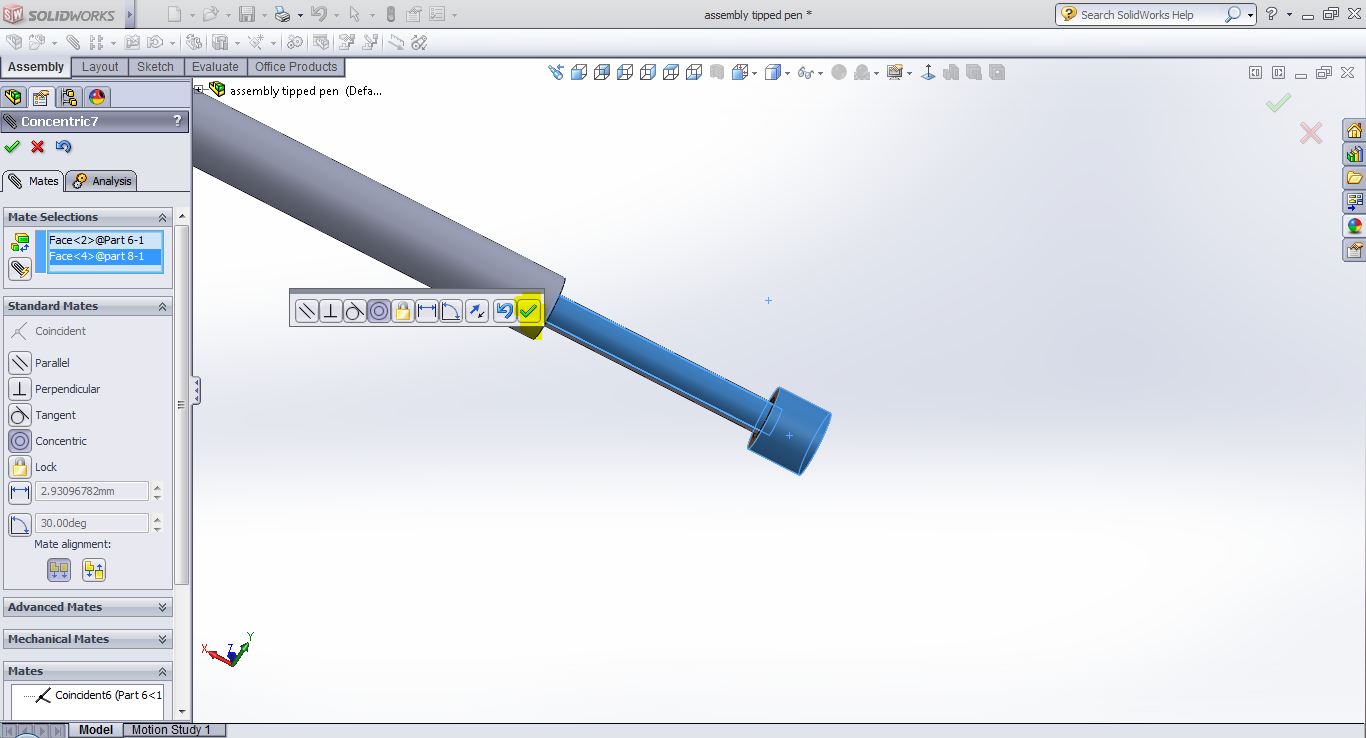

face 2 -- ok
-
Step 14:
find this sketch like shown, right click on it then click on show
-
Step 15:
select the circle
-
Step 16:
select shown surface -- ok
